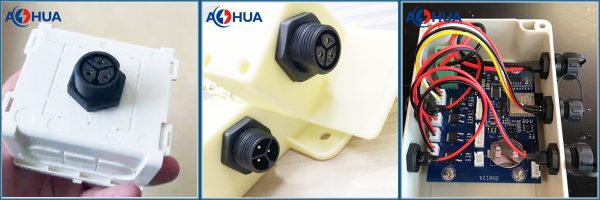

Customized Junction Box Male Female Panel Mount Waterproof 3pin Connector
In the realm of electronic devices and systems, ensuring reliable power and signal transmission is crucial. When it comes to outdoor or harsh environment applications, protecting electrical connections from moisture, dust, and other contaminants becomes even more critical. A waterproof wiring connector, such as a waterproof DC jack connector or a customized junction box panel mount waterproof 3-pin connector, plays a vital role in maintaining the integrity and longevity of electrical connections. This article delves into the benefits and design considerations of such connectors for device applications.
The Importance of Waterproof Wiring Connectors:
Waterproof wiring connectors are specifically designed to protect electrical connections from environmental factors that can compromise their functionality. By preventing the ingress of water, dust, and moisture, these connectors ensure a reliable and consistent power and signal transmission, even in challenging conditions.
Benefits of Waterproof Wiring Connectors:
-
Environmental Protection: The primary advantage of a waterproof wiring connector is its ability to provide a barrier against moisture and dust. Whether deployed in outdoor applications, marine environments, or industrial settings, these connectors safeguard the sensitive electrical connections from corrosion and short circuits that could otherwise occur due to water exposure.
-
Longevity and Reliability: By ensuring a secure and waterproof connection, these connectors extend the lifespan of the connected devices. They mitigate the risk of damage caused by moisture, which could lead to malfunctions, failures, or even permanent damage to the system.
-
Versatility and Customization: Waterproof wiring connectors are available in various configurations and designs to accommodate specific requirements. Whether it’s a DC jack connector, a panel mount connector, or a customized junction box, these connectors offer flexibility and adaptability to meet different device applications.
Design Considerations:
-
IP Rating: When selecting a waterproof wiring connector, it’s essential to consider its Ingress Protection (IP) rating, which indicates the level of protection against solids and liquids. The higher the IP rating, the greater the protection. For instance, an IP68 rating guarantees protection against submersion in water and is suitable for applications in extreme environmental conditions.
-
Connector Material: The choice of connector material is crucial in achieving waterproofing. Common materials include durable plastics and metals, such as aluminum or stainless steel. The connector should possess good sealing properties and be resistant to corrosion and UV radiation for prolonged outdoor use.
-
Cable Termination Method: The method of terminating the cable to the connector is another important consideration. Options range from crimping, soldering, or using compression seals. Each method offers different levels of reliability and ease of installation, depending on the application.
-
User-Friendly Design: A well-designed waterproof wiring connector should be easy to install, disassemble, and maintain, while still providing a secure and watertight connection. Features such as locking mechanisms, intuitive mating interfaces, and strain relief mechanisms contribute to user convenience and reliability.
