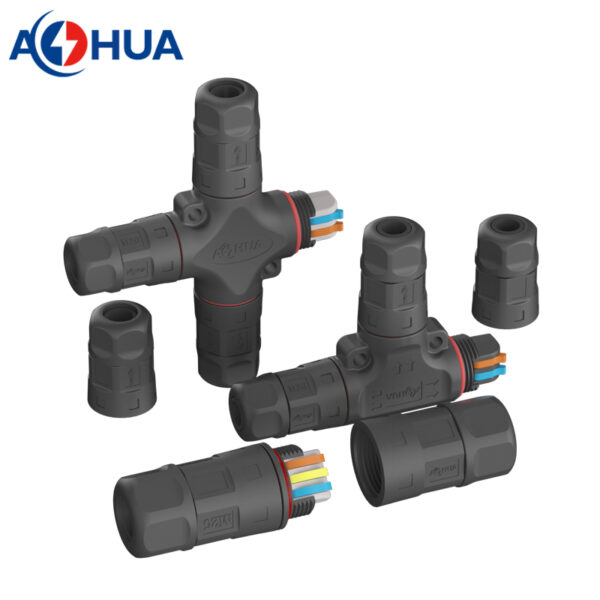

Exploring Push-Wire Waterproof Connectors: Straight, T-Type, and X-Type Splitters
Push-wire waterproof connectors have gained popularity in various industries due to their ease of use, secure connections, and reliable protection against water ingress. In this article, we will delve into the features and benefits of push-wire waterproof connectors, specifically focusing on the straight type, T-type splitter, and X-type splitter variants. These connectors boast an impressive IP68 waterproof rating and are ideal for wire gauge 0.5-1.5mm², accommodating cable outer diameters ranging from 5mm to 10mm.

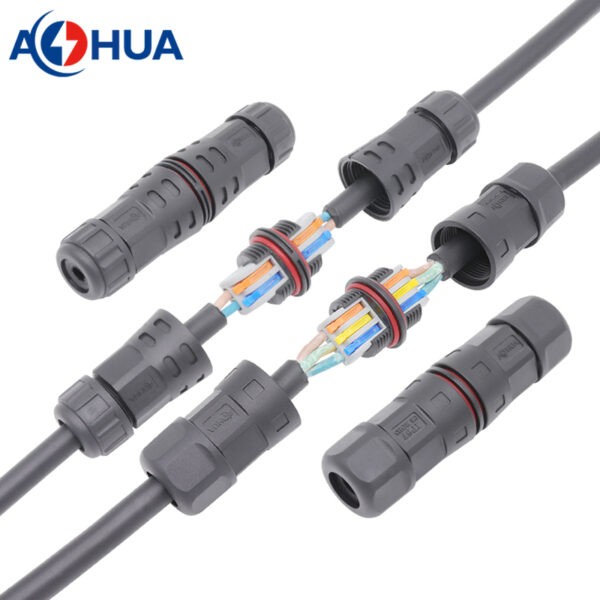

Straight Type Push-Wire Waterproof Connector:
The straight type push-wire waterproof connector is a versatile solution for creating secure and waterproof electrical connections. Its simple design allows for quick and easy installation without the need for specialized tools. The connector features a push-wire mechanism that securely grips the wires during assembly, ensuring a reliable connection.
With an IP68 waterproof rating, this connector provides excellent protection against water, dust, and moisture. It is designed to accommodate wire gauges ranging from 0.5mm² to 1.5mm², catering to a variety of wiring needs. The cable outer diameter range of 5mm to 10mm allows for compatibility with a wide range of cables.
The straight type push-wire waterproof connector finds applications in outdoor lighting systems, landscape installations, and other electrical connections that require reliable waterproof seals. Its robust construction, combined with its waterproof capabilities, ensures long-term performance and maintenance-free operation.

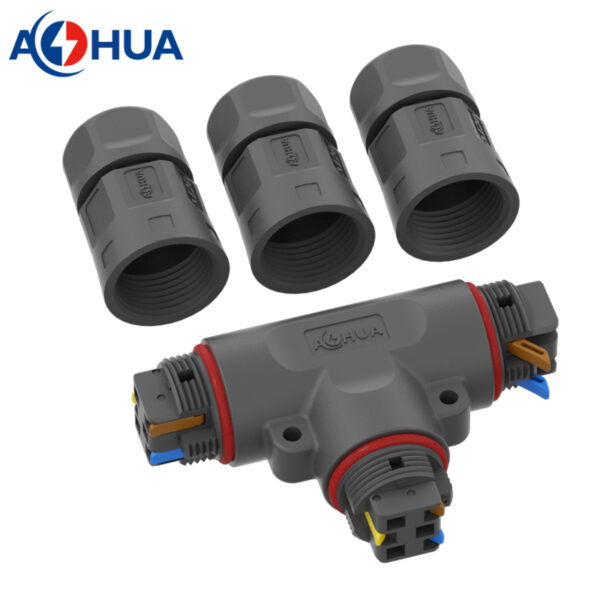

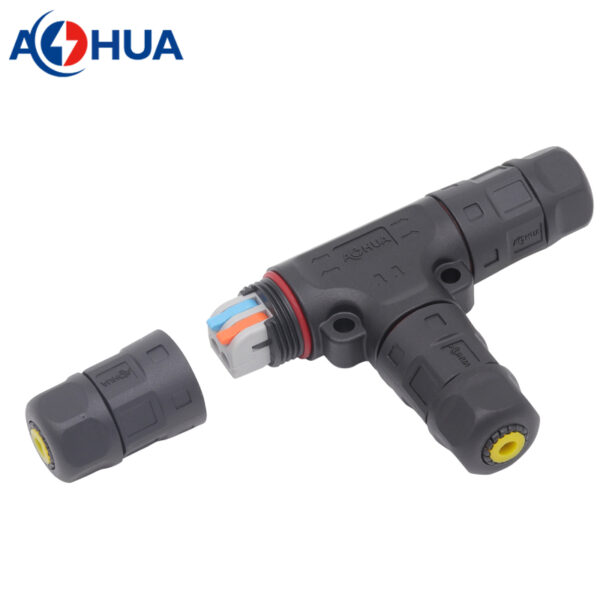

T-Type Splitter Push-Wire Waterproof Connector:
The T-type splitter push-wire waterproof connector offers a convenient solution for branching and splitting electrical connections while maintaining IP68 waterproof integrity. This type of connector features a central connection point and two branches, allowing for easy distribution of power or signals to multiple devices or fixtures.
The T-type splitter connector retains the same benefits as the straight type connector, including easy installation, secure push-wire connections, and a wide range of wire gauge and cable outer diameter compatibility. It is designed to handle wire gauges between 0.5mm² and 1.5mm², while accommodating cable outer diameters ranging from 5mm to 10mm.
The T-type splitter push-wire waterproof connector is commonly used in outdoor lighting systems, garden irrigation setups, and architectural installations where multiple branches and connections are required. Its waterproof properties ensure reliable performance, even in challenging environmental conditions.
 |
 |

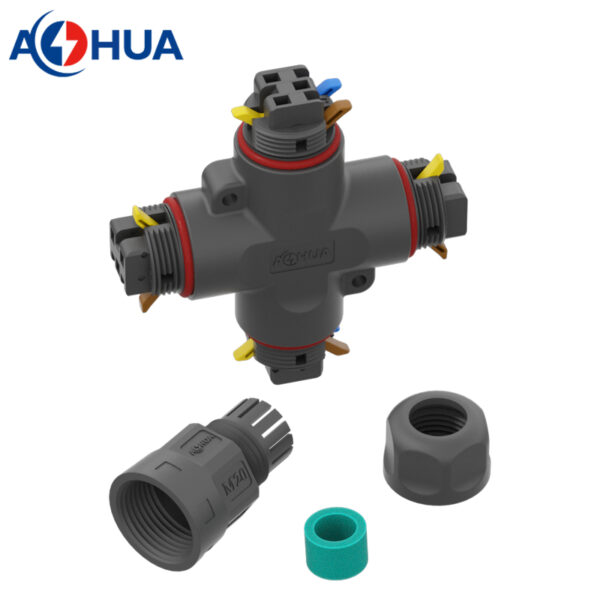

X-Type Splitter Push-Wire Waterproof Connector:
The X-type splitter push-wire waterproof connector offers a unique branching solution, allowing for three or more independent connections. This type of connector is particularly useful in applications where multiple branches or extensions are required, providing versatility and flexibility in electrical installations.
Similar to the straight and T-type connectors, the X-type splitter connector features easy push-wire installation, compatibility with various wire gauges (0.5mm² to 1.5mm²), and a cable outer diameter range of 5mm to 10mm. The IP68 waterproof rating offers reliable protection against water and moisture ingress.
The X-type splitter push-wire waterproof connector finds applications in complex lighting systems, outdoor surveillance setups, and other scenarios requiring multiple independent connections. Its robust construction and reliable waterproofing capabilities make it a dependable choice for demanding environments.
 |
 |
Push-wire waterproof connectors, including the straight type, T-type splitter, and X-type splitter variants, provide reliable and secure electrical connections with an IP68 waterproof rating. These connectors, suitable for wire gauges 0.5-1.5mm² and cable OD range of 5-10mm, offer a hassle-free installation process and long-lasting performance in diverse applications where waterproof sealing is essential.
