M23 T Connector

M23 T Type Waterproof Connector 2 3 4 PIN

M23 T connector is IP67 / IP68 waterproof level connector for power wire connection.

1 in 2 out, there are two branches, well-suited for the power wire outdoor.

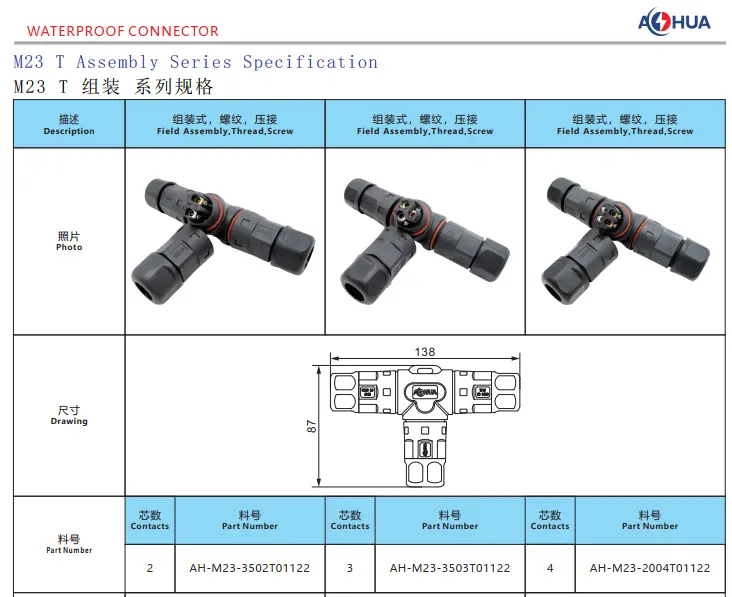

M23 T Waterproof Connector

PIN Part Number Wire Gauge Voltage Rating Current Rating
2 pin  AH-M23-3502T01122 ≤4.0mm² 300V 35A
3 pin  AH-M23-3503T01122 ≤4.0mm² 300V 35A
4 pin  AH-M23-2004T01122 ≤2.5mm² 300V 20A
Cable Over Diameter 9mm-15mm
Operating Temperature Rating -40℃~105℃
Waterproof Level  IP67 /IP68
Seal Ring 20.6*13*10/12/13/15mm
