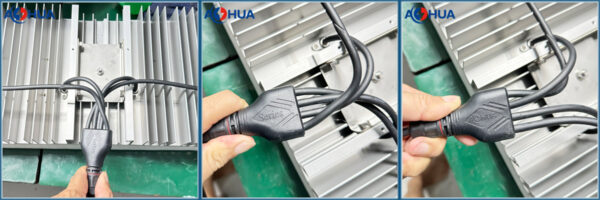

Manufacturer Customized Design Y Shape led model waterproof connector For street Lighting
A Y-shaped LED module waterproof connector is a specialized connector that allows for the connection of multiple LED modules in a branching configuration. This type of connector is commonly used in applications where a single power source needs to be distributed to multiple LED modules, such as in lighting installations or signage.
Designing a waterproof connector for LED modules requires careful consideration of several factors. Here’s a general guideline for designing an LED module waterproof connector:
- Waterproof Rating: Determine the required level of waterproofing for the connector based on the application’s environmental conditions. Common waterproof ratings include IP65, IP67, or IP68. The higher the rating, the more resistant the connector is to dust and water ingress.
- Connector Type: Choose a connector type suitable for the LED module and its application. Common options include circular connectors (such as M12 or M8 connectors), panel-mount connectors, or wire-to-wire connectors.
- Connector Material: Select a material that provides both durability and waterproofing. Materials like rugged thermoplastics or metals (such as stainless steel or brass) are commonly used for their resistance to environmental factors and corrosion.
- Sealing Mechanism: Implement an effective sealing mechanism to prevent water ingress. This can include an o-ring or gasket seal between connector components to create a watertight barrier.
- Locking Mechanism: Ensure a secure locking mechanism that keeps the connector tightly engaged even in harsh conditions. This prevents accidental disconnection or loosening due to vibration.
- Contact Design: Consider the number and configuration of contacts based on the electrical requirements of the LED module. Ensure proper sealing around each contact point to maintain electrical integrity.
- Cable Management: Design the connector in a way that allows for easy and secure cable management. This includes strain relief features to prevent cable damage and ensure long-term reliability.
- Testing and Validation: Perform thorough testing and validation to ensure the connector meets the desired waterproof rating. This can include ingress protection tests (such as water immersion or spray tests) to verify its performance.
- Compatibility and Interchangeability: Consider industry standards and compatibility with existing connectors or systems to ensure easy integration and interchangeability.
It is important to consult with experienced connector manufacturers or design engineers to ensure that the Y-shaped LED module waterproof connector is designed and implemented correctly for your specific application to meet the desired waterproofing and electrical.

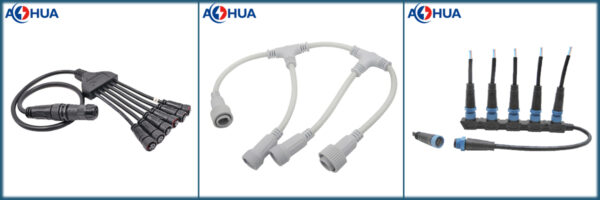

In AOHUA, with more than 18 years’ experience for customizing waterproof connector for specific usage, we have enough experience and technology to design and produce the most scientific cable solutions. For example, there are different shapes of distributor waterproof connector for LED module, includes: F type, Y type, T type and H type.
Different application with different solutions, We can design and make what the products you image. More information, please click here: www.aohuadz.com or email molly@aohuadz.com. Our team will ensure your money in safe.
