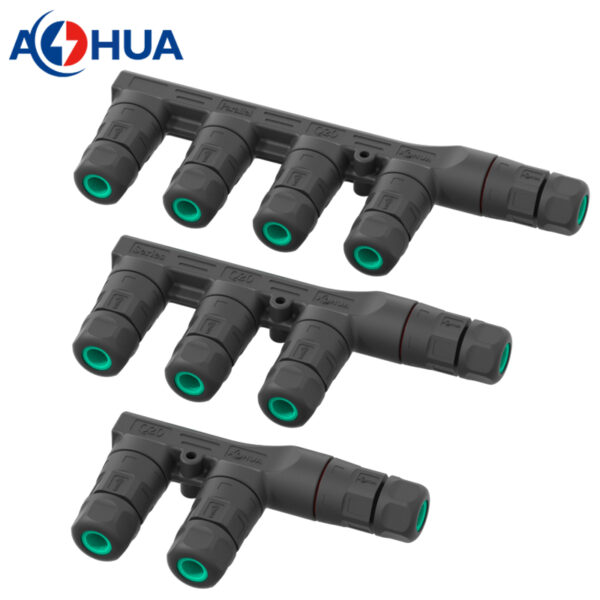

1 To 2 Parallel Series Design Push-Wire UV Resistant Assembly 2-pin Garden Waterproof Connector For Power Field Installation

2-Pin Garden Waterproof Connector
Ideal for outdoor lighting & irrigation, this nylon PA66 connector resists UV rays and corrosion. Push-wire terminals enable tool-free installation – simply insert stripped wires for instant grip. IP68 rated to withstand heavy rain and sprinklers. Perfect for linking garden lamps, fountains, or sensors. Custom colors available.

Highlights of 2-pin garden waterproof connector

1. assembly type: without cable. You can set the cable length according to the actual needs on site.
2. push-wire installation: it should be fasted and easiest approach to install wiring.
3. Parallel or Series for choosing from ensure your power circuit controlling.

Materials of 2-pin garden waterproof connector

1. plastic: PA66
2. conductor: copper
3. seal ring: silicone rubber
4. handles: stainless steel.

Parameters

1. Contacts: 2pin
2. Voltage Rated: 300V
3. Current Rated: 10A
4. Wire Gauge: ≤1.5mm²
5. Cable OD: 5-10mm
6. Operating Temperature: -40℃~+105℃
7. Waterproof Grade: IP67/IP68

Part Number

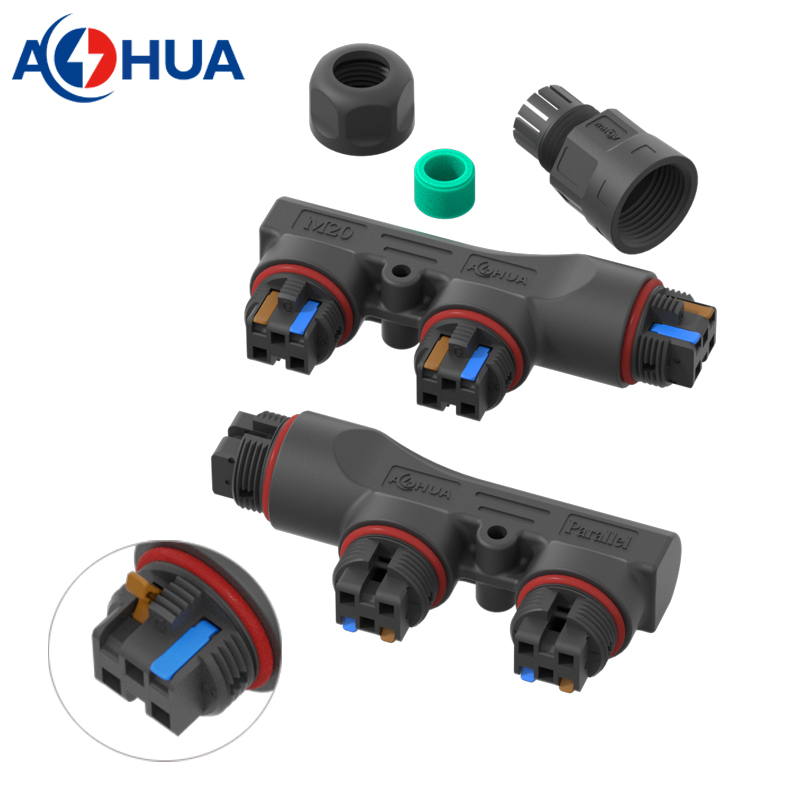

1. Parallel: AH-M20-1502MFO2P132

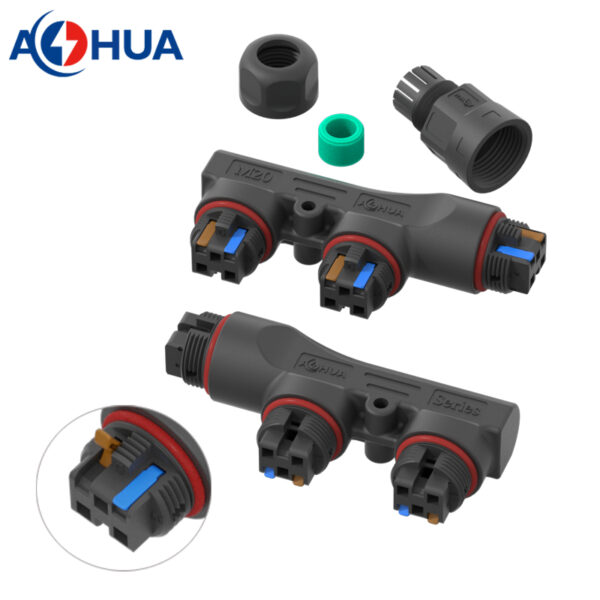

2. Series: AH-M20-1502MFO2S132

How to choose the right 2-pin garden waterproof connector?

1. please provide the information includes: working ampere, wire size, and cable OD of you want to connect.
2. confirm the branches you need and the connection type(Parallel or Series);
3. send all these information to AOHUA sales team, we will get back to you within 12 hours.
