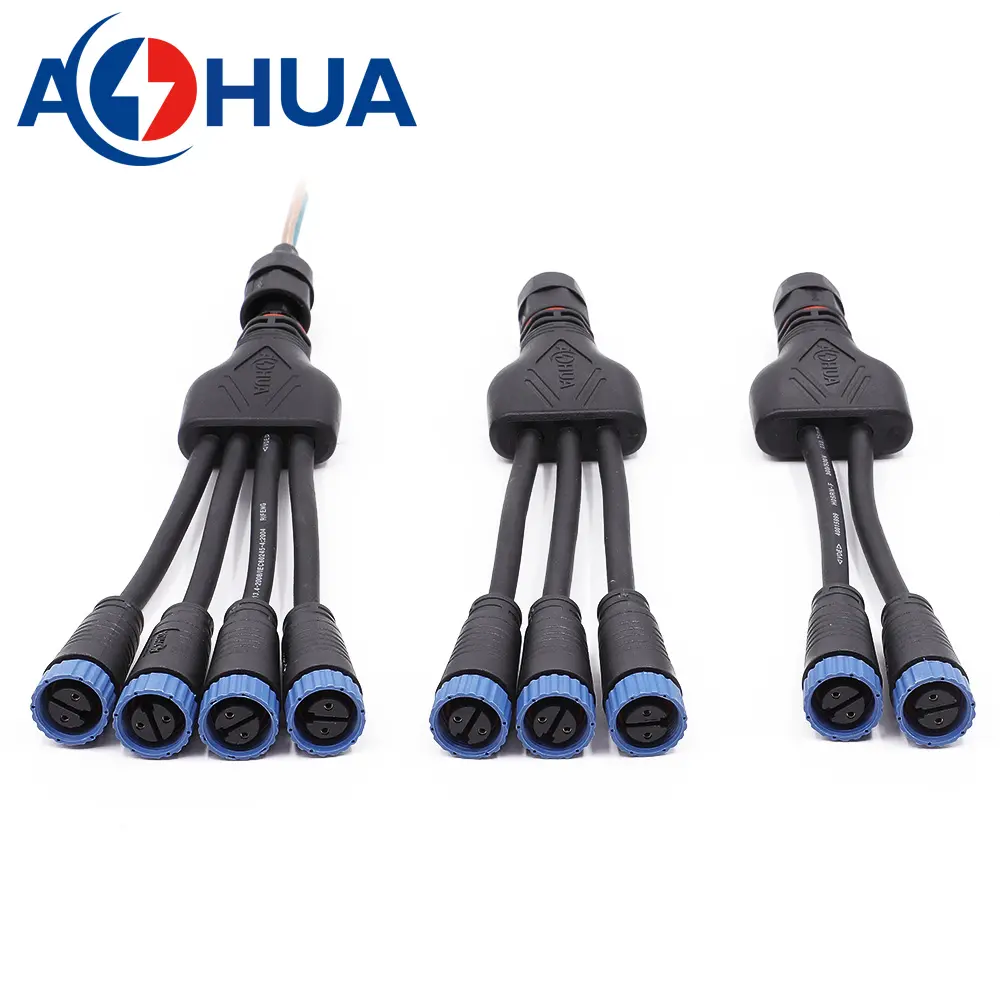

1 to 2 Cable Wire Harness Solution Waterproof Male Female Connector 2 Pin M15 With Splitter
1 to 2 Cable Wire Harness Solution Waterproof Male Female Connector 2 Pin M15 With Splitter
AH-YM16-0202-M15
Contacts: 2 pin only
Material: nylon
Color: black
Voltage: 250V
Current: 10A
Wire Gauge: ≤1.5mm²
Cable: PVC / rubber
Cable Length: customize as specified
Cable length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
1 to 2 Cable Wire Harness Solution Waterproof Male Female Connector 2 Pin M15 With Splitter
- Part number: AH-YM16-0202-M15
- Connector material: nylon
- Connector inside: PCB panel contruct
- Cable material: PVC, rubber, PUR or customize as specified
- Contacts: only 2 pin
- Input wire attaches: screw lugs

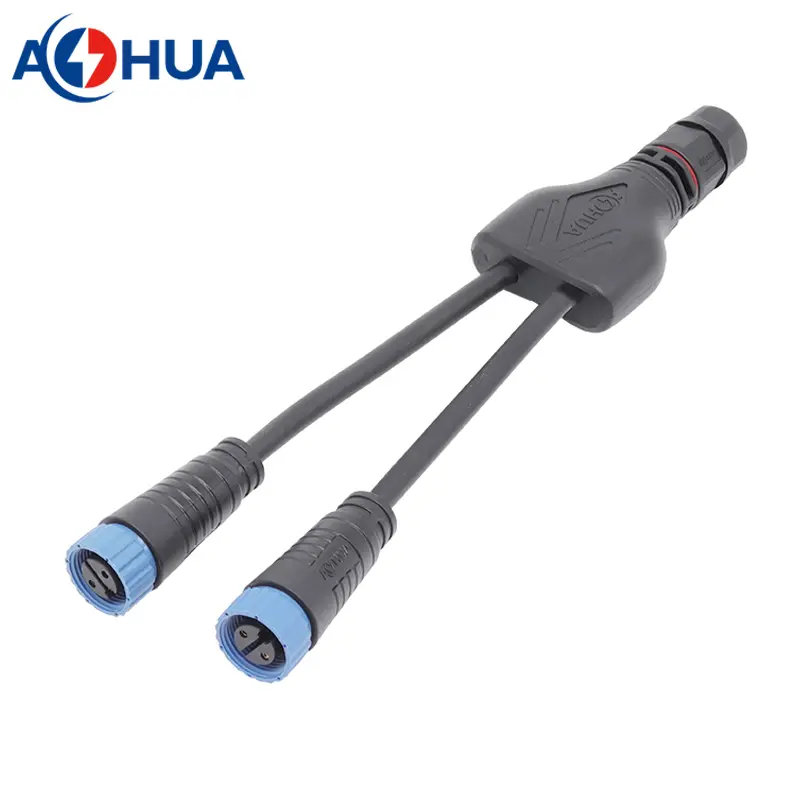

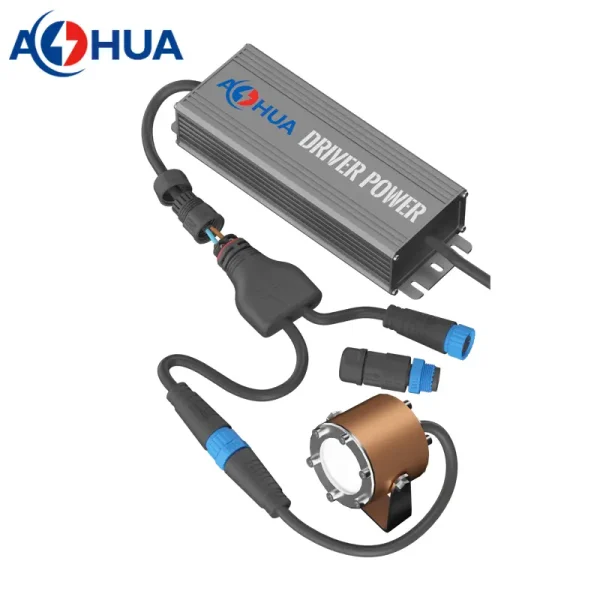

This is 1 to 2 splitter carrying with male female connector. The male female connector is 2 pin version M15 screw thread waterproof plug, which is favorable waterproof grade IP67 even IP68. In the splitter, the input of splitter is without cable, only screw terminal for wire field assembly; and the output is with cable, the cable can be molded with different waterproof connector or directly connect to led lightings or devices.
| Contacts | 2 pin |
| Connector Material | nylon |
| Cable Material | Rubber/ PVC/ PUR |
| Voltage Rating | 250V |
| Current Rating | 10A |
| Input Wire Gauge | 2*1.5mm², 2*1.0mm², 2*0.75mm², 2*0.5mm² or 2*16AWG, 2*18AWG, 2*20AWG |
| Output Wire Gauge | 2*1.5mm², 2*1.0mm², 2*0.75mm², 2*0.5mm² or 2*16AWG, 2*18AWG, 2*20AWG |
| Input Cable Jacket OD | 5.0-10mm |
| Output Cable Jacket OD | 5.0-9.0mm |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP67 / IP68 |
- Male female connector for splitter

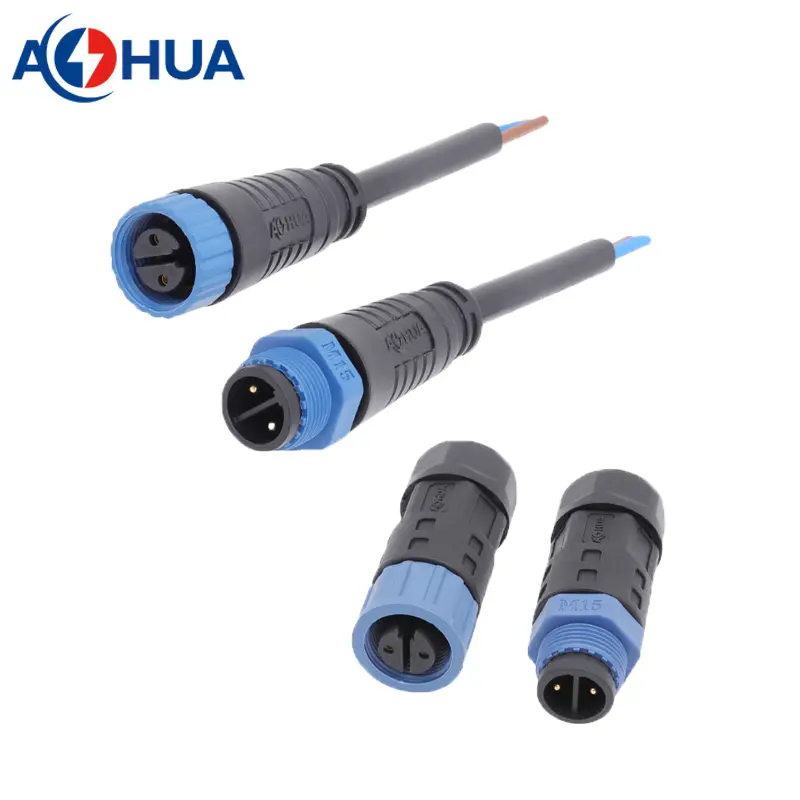

The male female connector is a set of waterproof connector with male/female gender. The male female connector will be molded on splitter branch cable once you choose this solution. Choosing male female is based on the wire gauge of the branch cable wire gauge you choose.
For this male female connector, you can also choose a female connector molded on branch cable and choose the male assembly connector for your devices. The solution is customized as usual according to the actual application. If not confirm which type solution, please contact our sales, our team will design the right and perfect solution for you.
- 1 to 2 Splitter

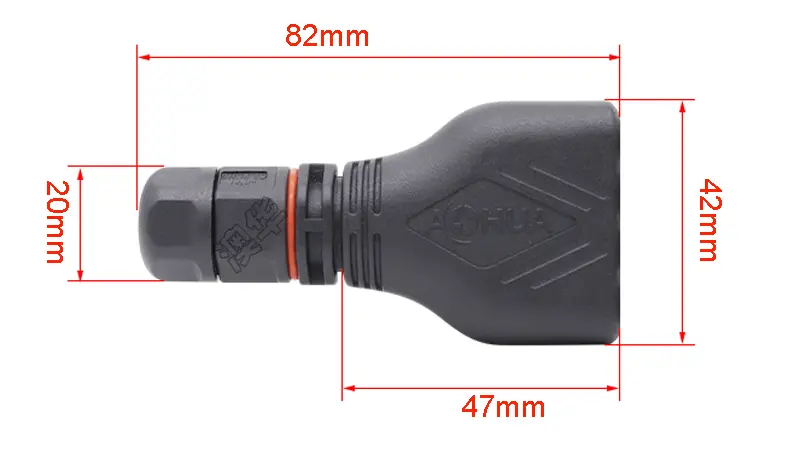

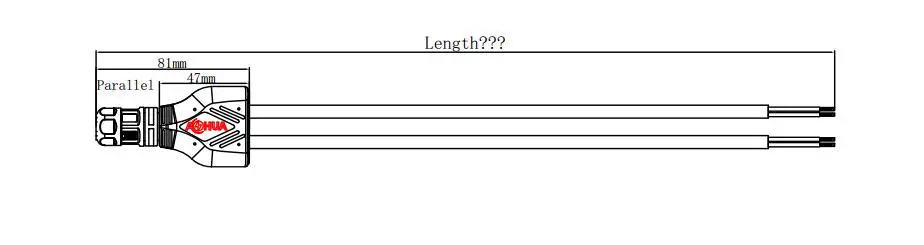

The splitter is wide 42mm, length 82mm. If choose this splitter for your limited space, please confirm this diameter. If not enough space for this splitter, please contact our sales for discussing sutiable size or customize a new splitter.
About the input cable for the input socket splitter, due to that is no cable molding on the input socket of splitter, it mean that the input cable will be provide by the buyer ownself. In this way, before order this splitter, please specify the cable jacket overall diameter, it will be better for our sales to help choose the correct seal ring for your cable. The right seal ring will be better for waterproof. The below datasheet is just a reference to help choose the correct seal ring.
| Cable Jacket OD | Seal Ring Size |
| 5.0-6.5mm | φ6.5mm |
| 6.0-7.5mm | φ7.5mm |
| 7.0-8.5mm | φ8.5mm |
| 8.0-9.5mm | φ9.5mm |
| 9.0-10mm | φ10mm |
As a professional manufacturer, providing complete solution is our goal for each customer. Whatever it is waterproof male female connector, or splitter cable wire, or even cable wire harness processing, we all can make it according to your ideas.
Please offer your simple drawing or just tell us with your idea, our professional team will give you the best solution.
Contact us on email: molly@aohuadz.com
