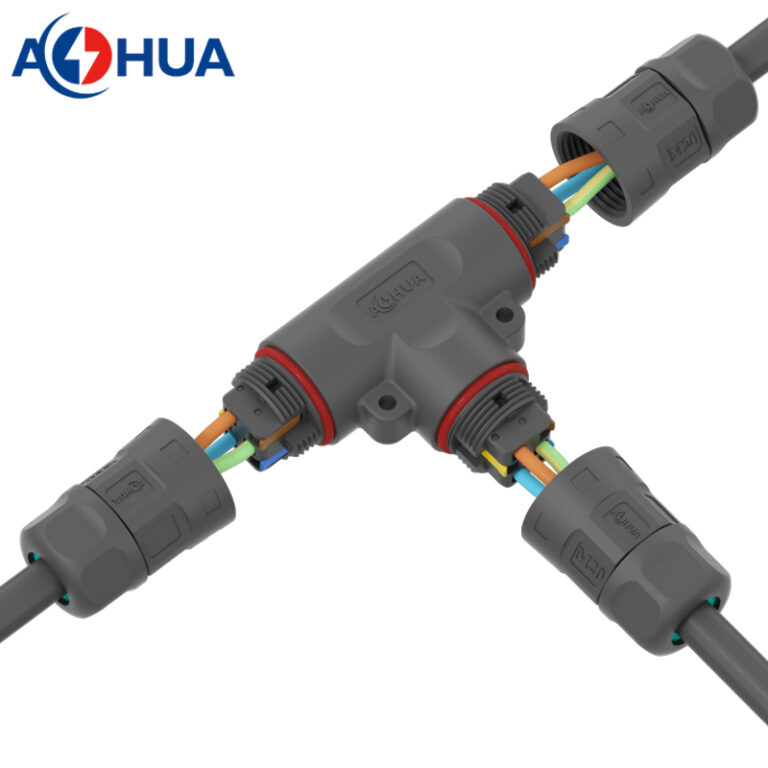

15A 3pin 1.0 1.5 Wire OD5-10mm Assembly T Shape 3 Way Press Wire Push Locking AC DC Waterproof Cable Connector M20
15A 3pin 1.0 1.5 Wire OD5-10mm Assembly T Shape 3 Way Press Wire Push Locking AC DC Waterproof Cable Connector M20
- Connector: T connector
- Model: M20
- Connector Type: push-wire type
- Contacts: 3pin
- P/N: AH-M20-1503T02132
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²

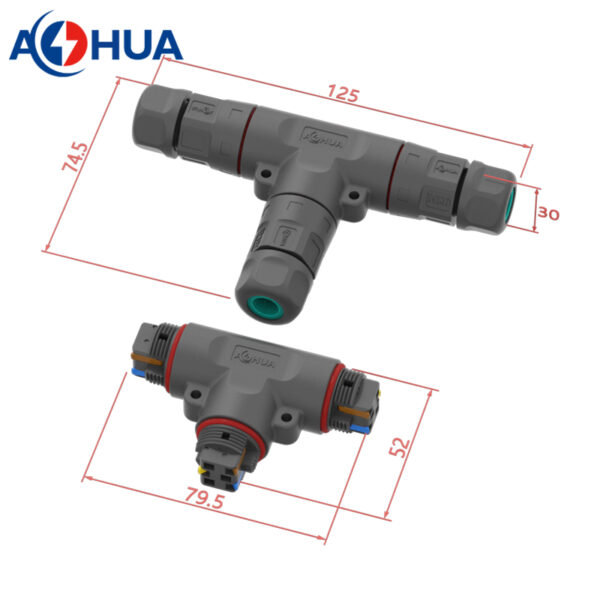

- Cable OD: 5-10mm
- Certificate: CE/ROHS
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
15A 3pin 1.0 1.5 Wire OD5-10mm Assembly T Shape 3 Way Press Wire Push Locking AC DC Waterproof Cable Connector M20
-
Highlights
- press-wire handles for wiring operating: it is very fast and easy for wiring operation.
- 15A/300V: commonly use to most of daily application in our life.
- plastic material is PA66: strength, no blooming and heat resistance.
- Specification
- Contacts: 3pin
- P/N: AH-M20-1503T02132
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: 0.5-1.5mm²
- Cable OD: 5-10mm
- Operating Temperature: -40℃~+105℃
- How to choose the right connector for your cable solution?
- confirm the connector type: such as you need a 3 way connector or a straight connector;

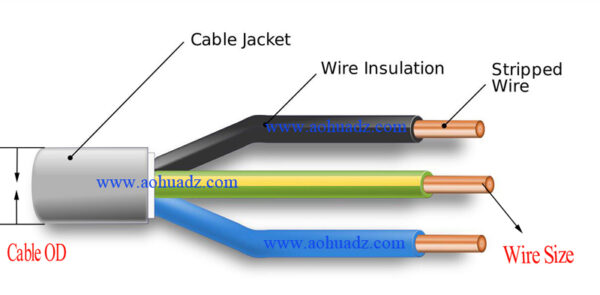

- specify the working ampere, wire gauge, cable OD or more details;
- you can choose the part number or send all these information to our sales team, we will help choose and double check which one is the best.

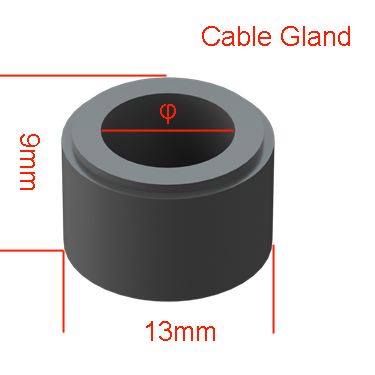

How to choose the right cable gland for getting better waterproof effect?
In common, the suitable cable gland will get better waterproof grade. So what is the suitable cable gland? Our general standard is: the cable gland inner diameter should be close to but larger than the cable OD.
