200mm Extension Cable 20AWG 4A Male Female Self Locking DC Connector Jack 2.1 2.5 For Panel Light Power

Part number:

Male: AH-M13-0502MFD01231

Female: AH-M13-0502FMD01231

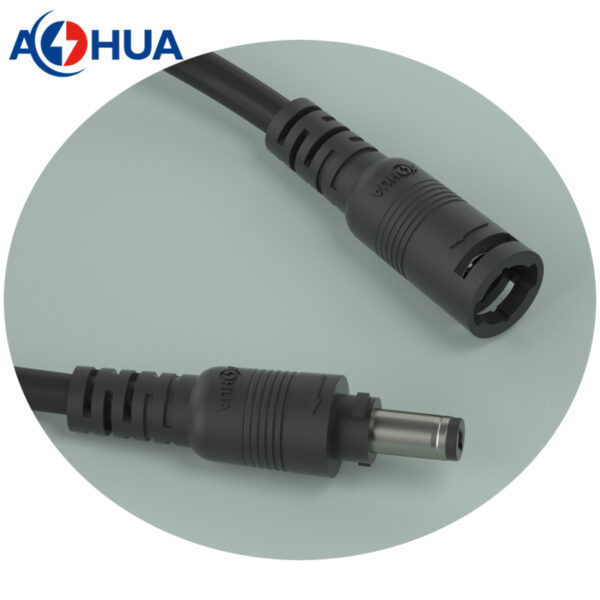

1. self locking DC connector molded with cable
2. not waterproof type
3. rated voltage: 60V
4. rated current: 5A
5. wire gauge: 18AWG, 20AWG, 22AWG, 24AWG
6. cable OD: 3-5.5mm
7. conductor: 5.5*2.1mm /5.5*2.5mm

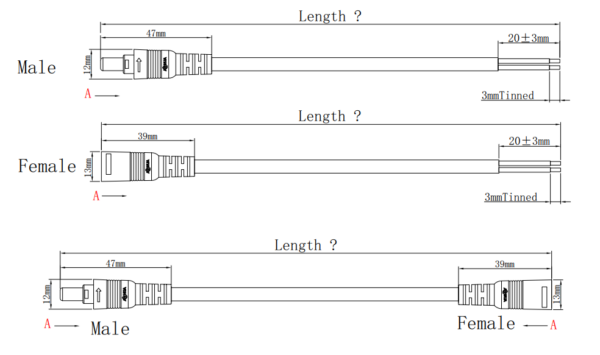

8. cable length: customized as required

black connector with open wire end

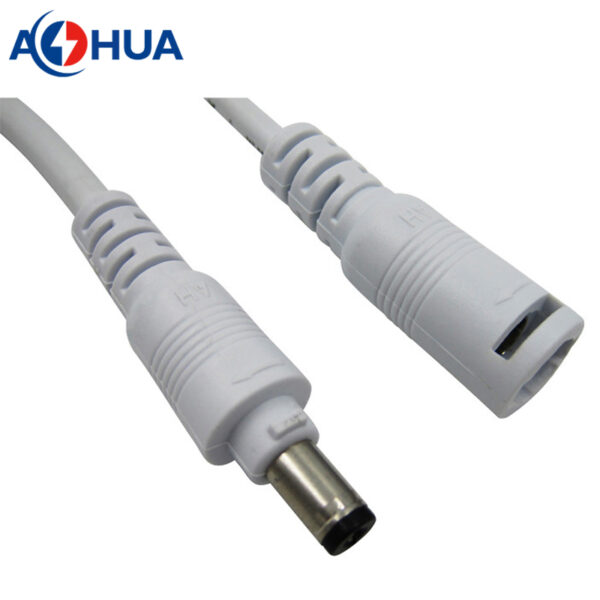

white connector with open wire end

T splitter with DC connector

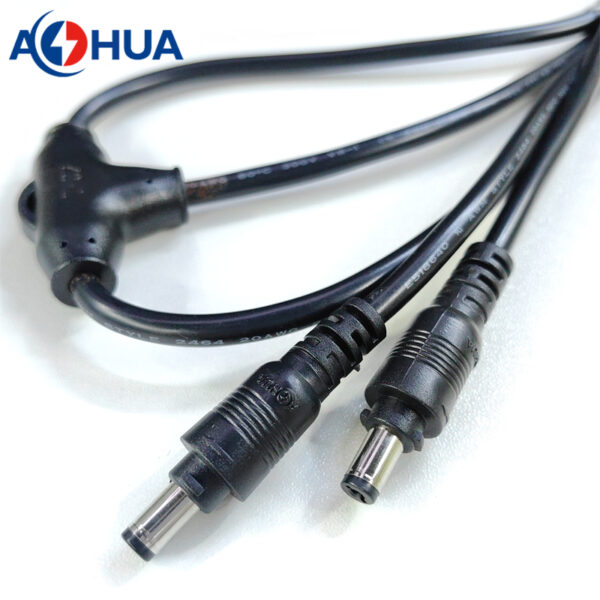

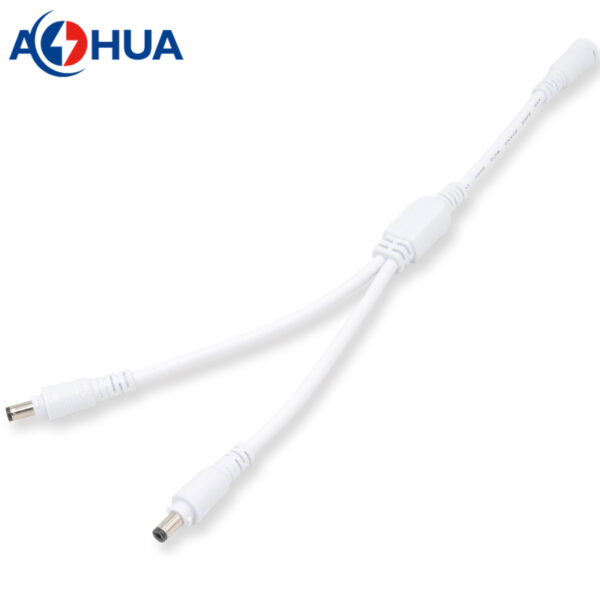

Y splitter with DC connector

Highlight

1. plastic material: PVC
2. conductor: copper
3. cable material: PVC
4. cable series: UL2464
5. perfect production process ensure high quality products
6. customize what you need.

How to order

• confirm the connector type you need;
• tell us the wire working ampere;
• specify the wire gauge and cable length.
• accept customization and please send detail request.
