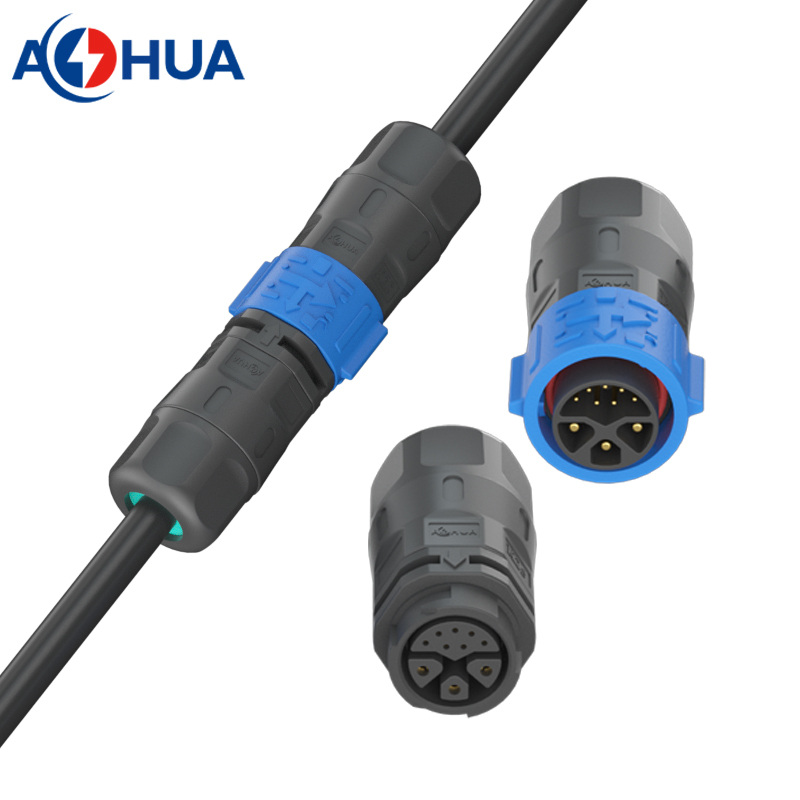

2+1+7pin 20A Power Signal Integrated Assembly IP68 K25 Male Female Inline Waterproof Wire Connector

• Here is the inline assembly type waterproof connector for power and signal integrated.
• This connector includes power and signal pin.
• This connector mainly use to the electrical equipment or machine devices.

male: AH-K25-200537MMZ02212

female: AH-K25-200537FFZ02212

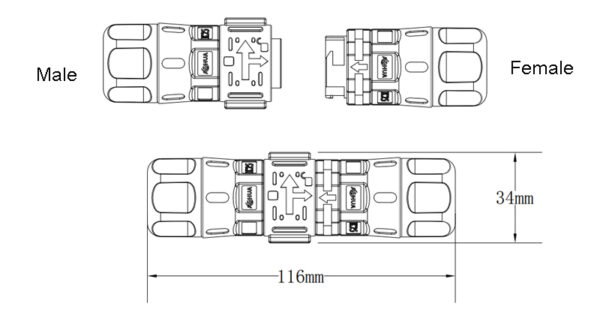

• DRAWING-diameter

• Specification

1. Contacts: 2+1+7pin
2. Voltage: 300V
3. Current: 20A+5A
4. Wire Size: 2.5mm²+0.5mm²
5. Cable OD: 6.5-15mm
6. Mechanical Life: 1000 mating cycles
7. Operating Temperatures: -40℃~+105℃
8. Waterproof Grade: IP67 /IP68
9. Certificate: CE & ROHS

• How to order?

please share us with the detail requests includes:

1. working ampere, eg: 15A
2. contact pin, eg: 10pin 0r 2+1+7pin;
3. wire size, eg: such as  2*2.5mm²+1*1.0mm²+7*0.3mm²；
4. cable overall diameter, eg: 13mm
5. connector type, eg: with cable or without cable;
