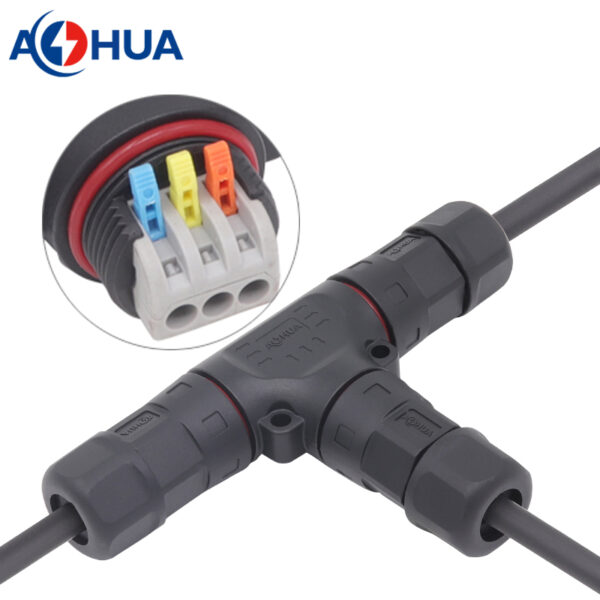

25A 250V 3pin 1.5 2.5 Wire Cable OD 8-15mm M25 CE Assembly Waterproof T Type 3 Way Connector For Power Robot Arm

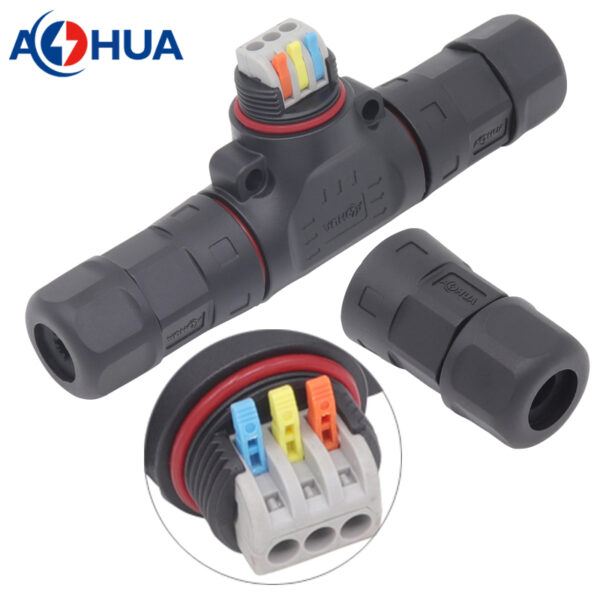

This is fast push-wire type T connector in assembly, which is very easy and fast for wire operation.

1. 3 terminal for 3 wires;
2. 250V/25A rated current is OK for 1.5 and 2.5mm²；
3. Cable gland is suitable for OD 8-15mm cable.
4. Plastic material: PA66 nylon– it is strength and heat resistance material.
5. Waterproof Grade: IP68–suitable for outdoor water environment.

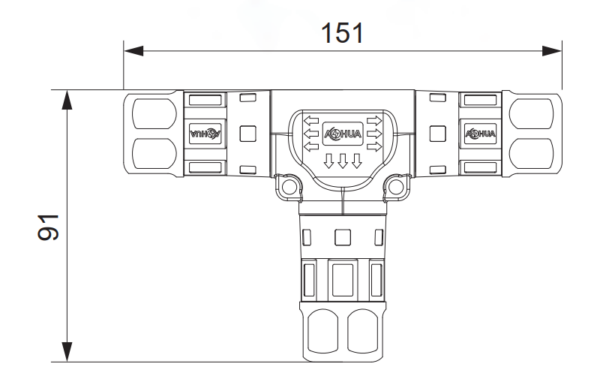

Specification

• Part Number: AH-M25-2503T01132
• Wire Gauge: 1.0/1.5/2.5mm² or 14AWG 16AWG
• Cable OD: 8-15mm
• Operating Temparature: -40℃~+105℃
• Waterproof Grade: IP68
• Certificate: CE & ROHS

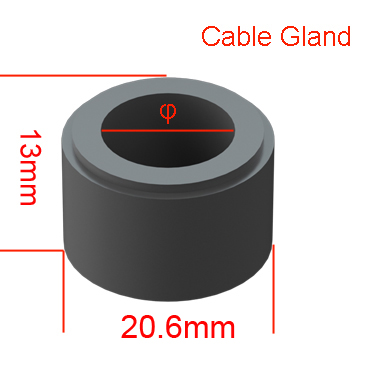

How to choose cable gland?

The cable gland inner diameter φ should be close to but larger than cable OD, to ensure higher waterproof grade. Such as:

• OD: 8-10mm, φ=10mm;
• OD: 10-11.5mm, φ=12mm;
• OD: 12-13mm, φ=14mm;
• OD: 13-15mm, φ=15mm;
