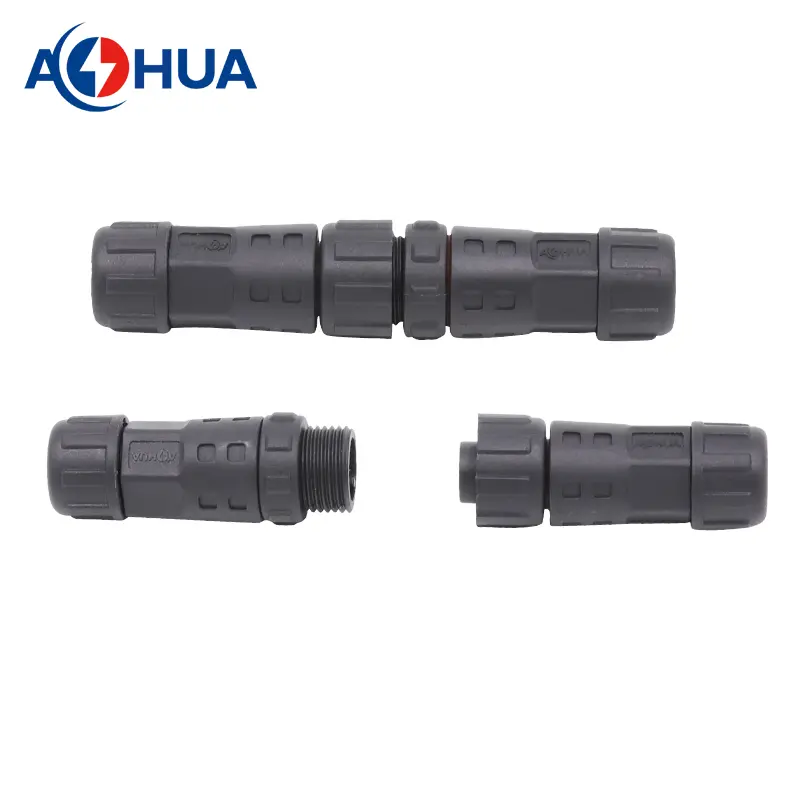

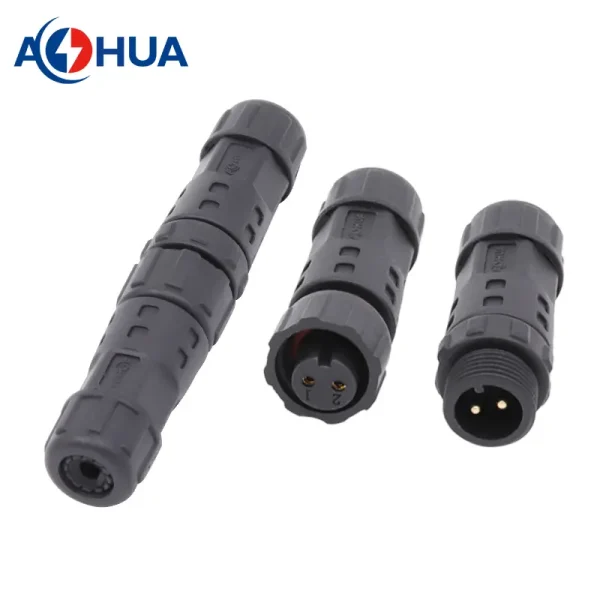

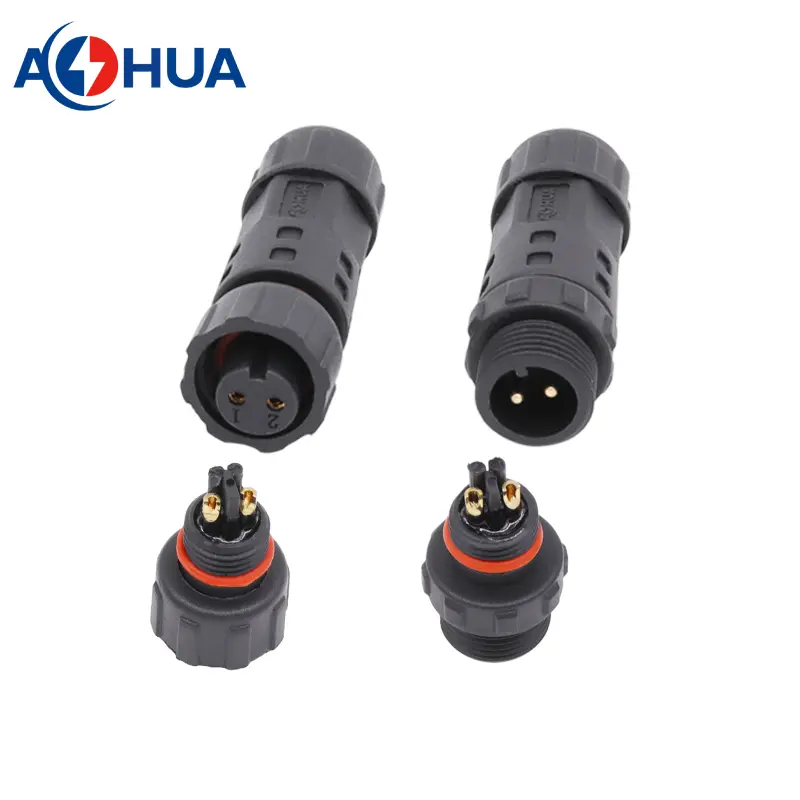

2pin M12 wire to wire assembly waterproof connector
2pin M12 wire to wire assembly waterproof connector
P/N: AH-M12-0502FMZ01112/AH-M12-0502MFZ01112
Material: Nylon
Color: Black
Certificate: CE/ROHS/SAA/UL/TUV
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M12 Male Female Connector
Specification

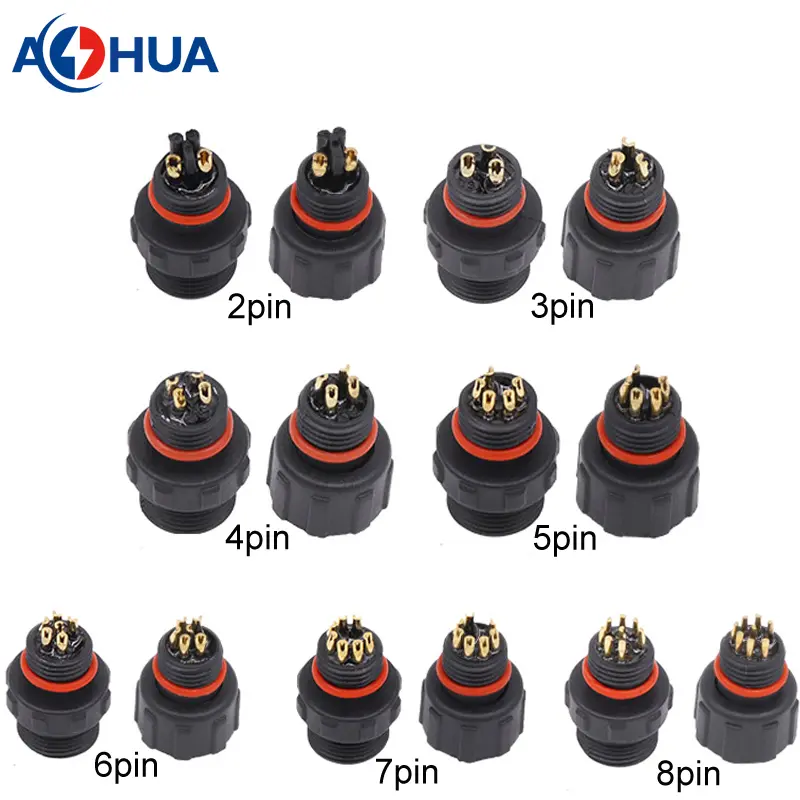

| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 |
AH-M12-0502FMZ01112/AH-M12-0502MFZ01112 |
≤1.0mm² | 300V | 5A |
| 3 | AH-M12-0503FMZ01112/AH-M12-0503MFZ01112 | ≤0.75mm² | 300V | 5A |
| 4 | AH-M12-0404FMZ01112/AH-M12-0404MFZ01112 | ≤0.5mm² | 110V | 4A |
| 5 | AH-M12-0205FMZ01112/AH-M12-0205MFZ01112 | ≤0.3mm² | 60V | 2A |
| 6 | AH-M12-0106FMZ01112/AH-M12-0106MFZ01112 | ≤0.2mm² | 60V | 1A |
| 7 | AH-M12-0107FMZ01112/AH-M12-0107MFZ01112 | ≤0.2mm² | 60V | 1A |
| 8 | AH-M12-0108FMZ01112/AH-M12-0108MFZ01112 | ≤0.2mm² | 60V | 1A |
| Cable OD | 3.0mm-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
| Seal Ring | 9mm*9mm*3.6/4.1/5.5/6.5/7.5mm |
