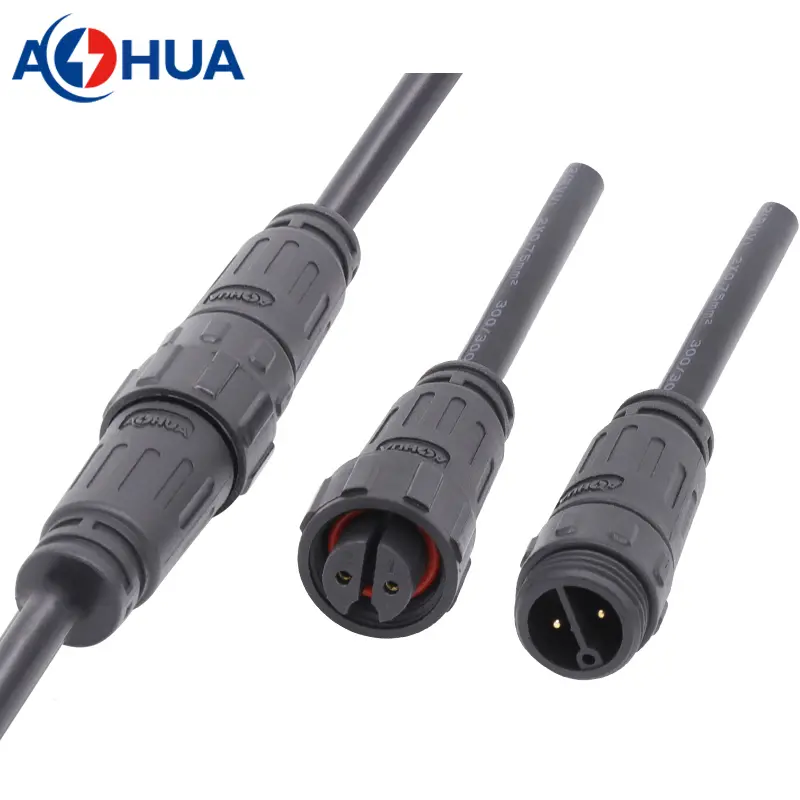

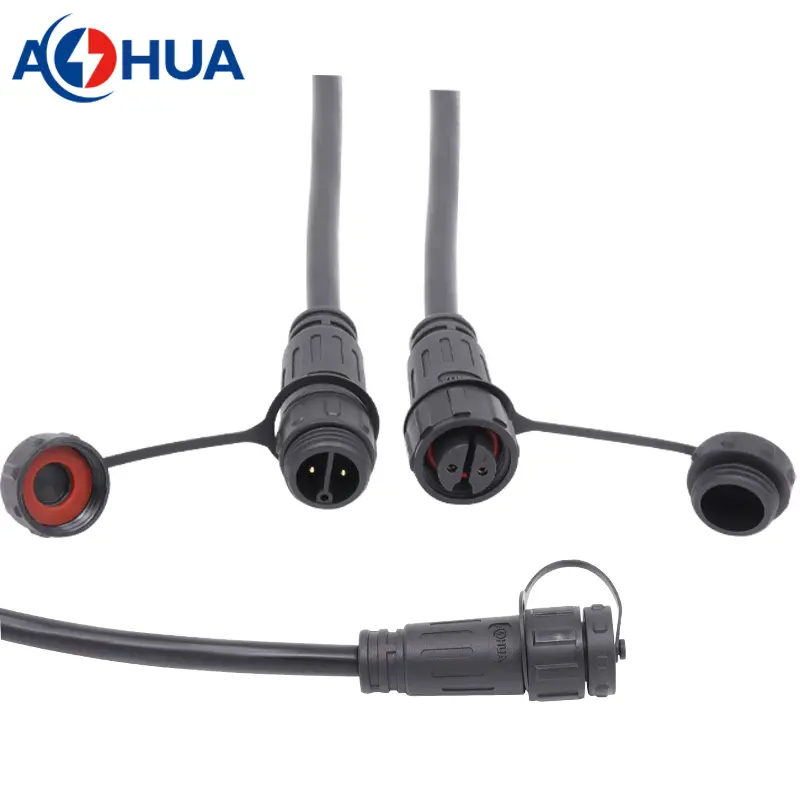

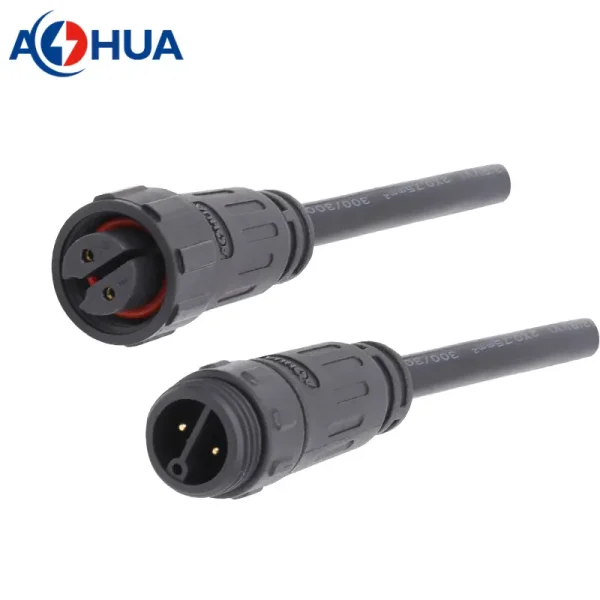

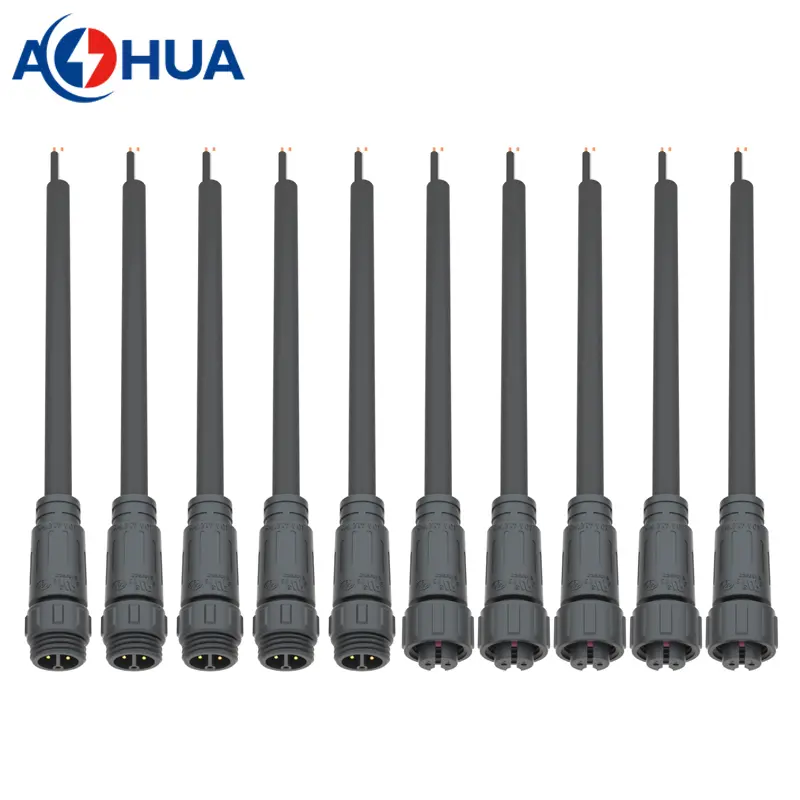

2pin M16 Waterproof Connector
2pin M16 Waterproof Connector

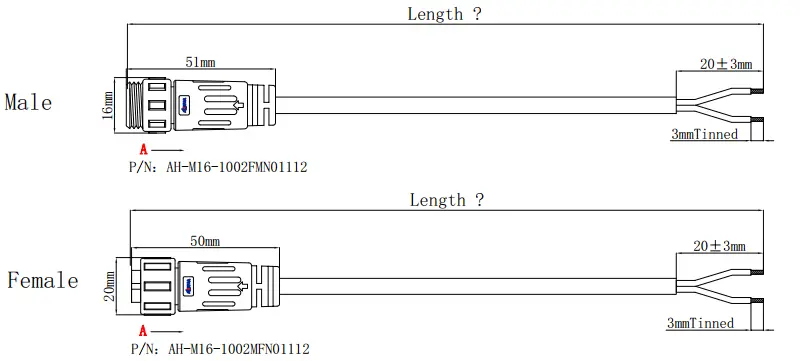

P/N: AH-M16-1002FMN01112/AH-M16-1002MFN01112
Connector: Nylon
Cable: PVC/rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS/UL
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M16 Cable Connector 2PIN
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M16-1002FMN01112/AH-M16-1002MFN01112 | ≤1.0mm² | 300V | 10A |
| Cable OD | 6.0mm-8.9mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
UL certified wire size:
| 2pin | 16AWG, OD7.9mm | 14AWG, OD8.8mm |
| 3pin | 16AWG, OD8.4mm | 14AWG, OD9.3mm |
