2pin Y Type 1 Input Male Divided To 3 Splitter Wires Extension Cable Waterproof Connector 18AWG For LED Lighting String
2pin Y Type 1 Input Male Divided To 3 Splitter Wires Extension Cable Waterproof Connector 18AWG For LED Lighting String
- customized splitter
- please specify the connector type, working ampere, wire gauge and cable length;
- would be appreciated if you can provide drawing;
- model: YM16;
- contacts: 2pin only;
- plastic material: PA66
- conductor: brass
- cable material: PVC or rubber
- cable length: customized as required
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:

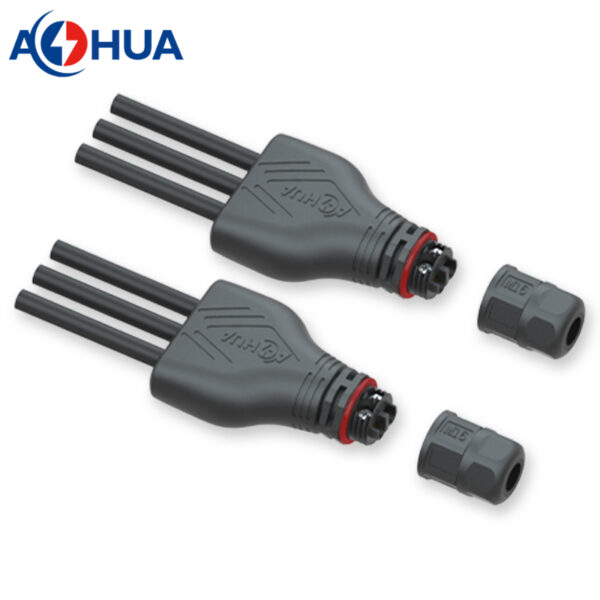

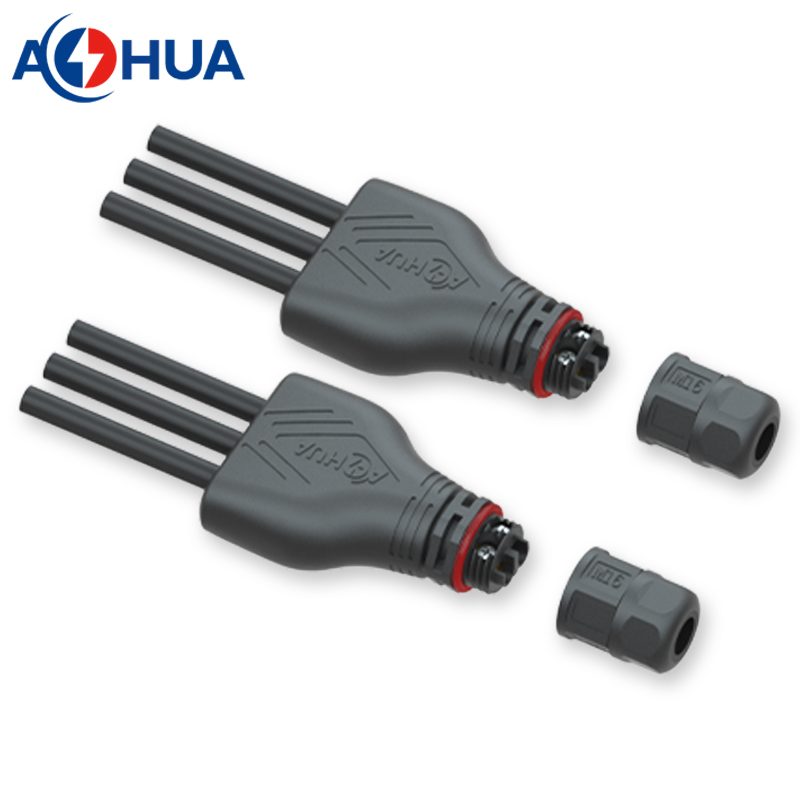

2pin Y Type 1 Input Male Divided To 3 Splitter Wires Extension Cable Waterproof Connector 18AWG For LED Lighting String
Specifications

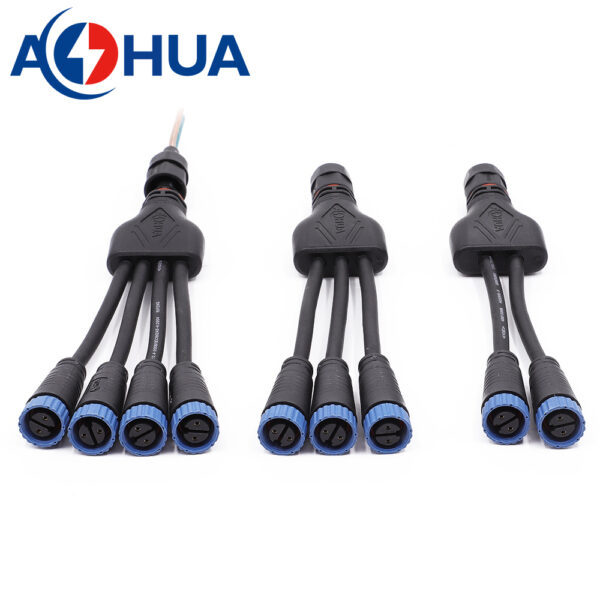

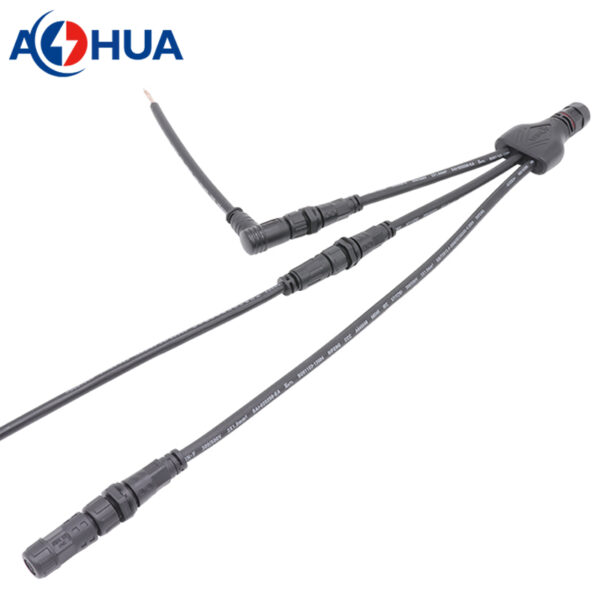

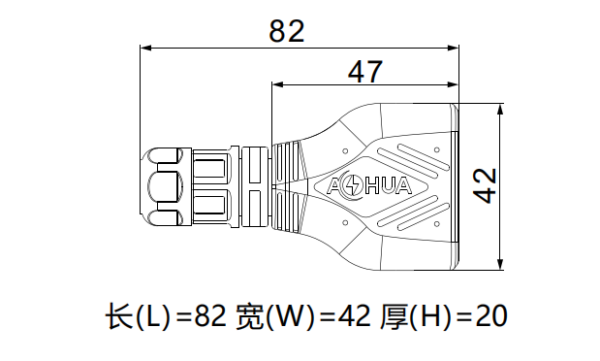

This is splitter type waterproof cable harness connector in 2pin. The input socket is assembly type with screw lugs and branch is molded with cable. The branch cable also can be molded with cable or keep open wire end.
- Connector Type: splitter cable
- Contacts: 2pin
- Plastic Material: PA66
- Conductor: brass
- Cable Material: PVC or Rubber or specified;
- Cable Length: 100mm at least, customized as required.
 |
 |
 |
 |
| Items | P/N | Rated Voltage | Rated Current | Wire Gauge | Cable OD |

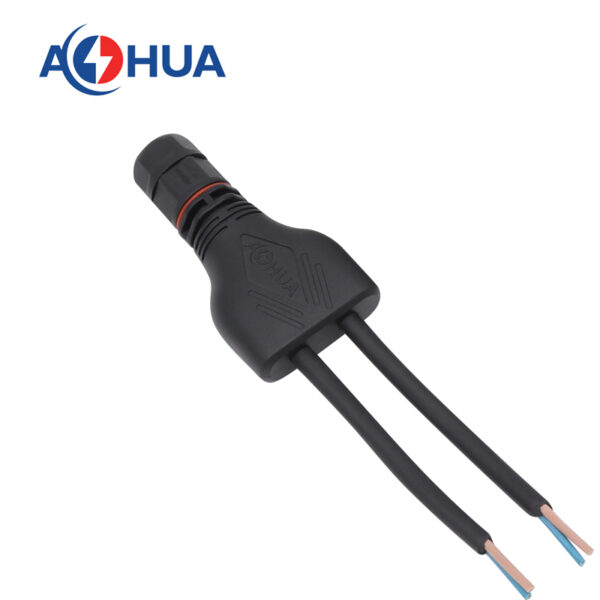

| 1 to 2 splitter | AH-YM16-0202 | 250V | 10A | Main: ≤1.5mm² Branch: ≤1.0mm² |
Main: 5-10mm Branch:3.5-6.8mm |

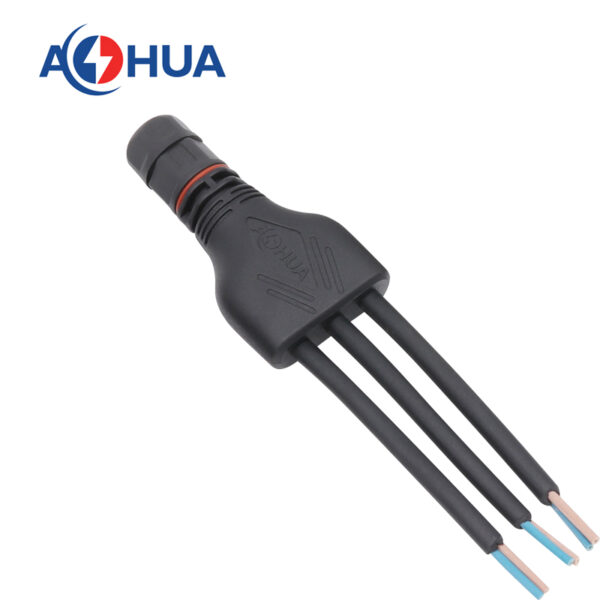

| 1 to 3 splitter | AH-YM16-0203 | 250V | 10A | Main: ≤1.5mm² Branch: ≤1.0mm² |
Main: 5-10mm Branch:3.5-6.8mm |
| 1 to 4 splitter | AH-YM16-0204 | 250V | 10A | Main: ≤1.5mm² Branch: ≤1.0mm² |
Main: 5-10mm Branch:3.5-6.8mm |

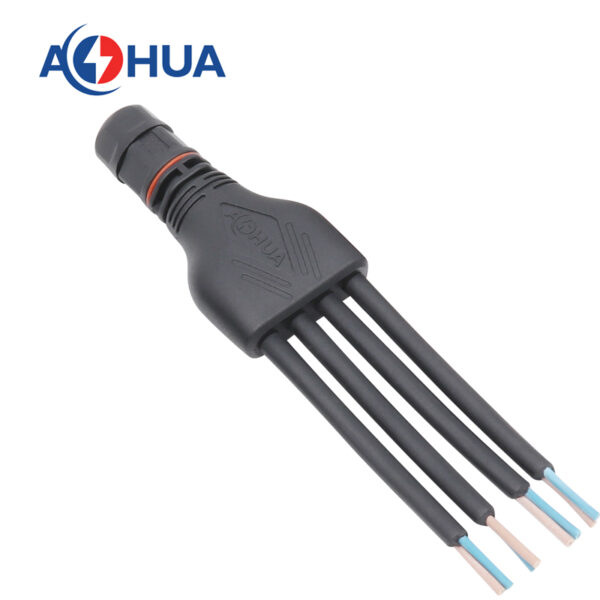

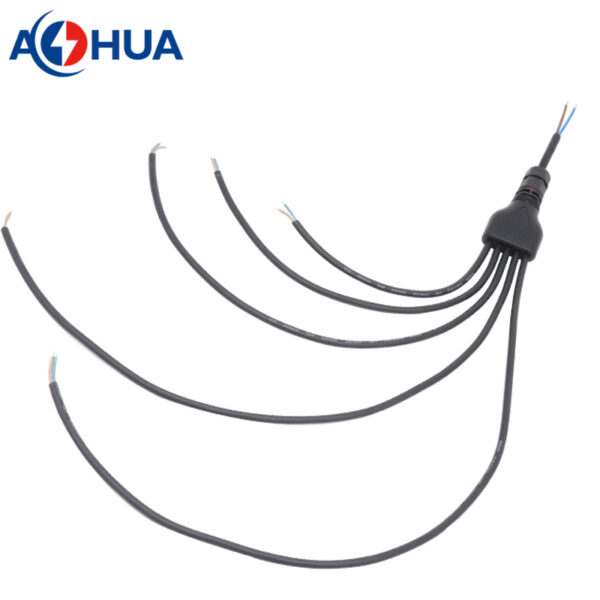

| 1 to 5 splitter | AH-YM16-0205 | 250V | 10A | Main: ≤1.5mm² Branch: ≤0.5mm² |
Main: 5-10mm Branch:3.5-5.0mm |
How to order?

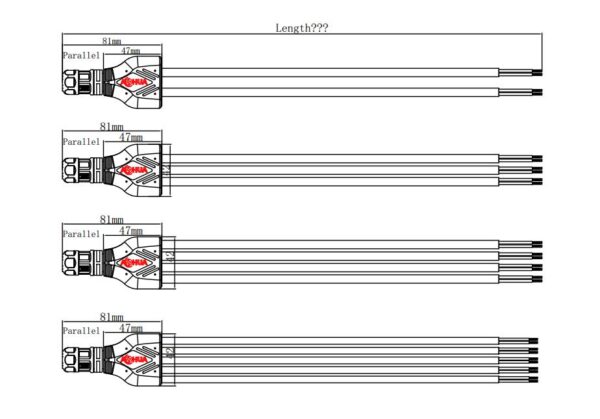

This is customized products, please send a simple drawing with detail requirement, our team will create the CAD drawing for approval. What the information we want to know:
- connector type: 1 input 2 output or more output cables, the branch cable keep open wire end or with connector;
- working ampere: what is the working ampere of the main and branch?
- wire gauge, cable OD and cable length: what is the wire gauge for input and output? Please specify the main cable OD and branch cable length;
- wire connection: Parallel or Series?
- cable material: PVC or rubber or specified cable?
Customization
AOHUA is the leading manufacturer of producing cable wires and waterproof connectors with more than 18 years’ experience. We can design and produce cable harness solution according the requirement from clients.
- customize LOGO & pringting & special cable;
- make new mold for new connector or customized connector;
- customize individual packing;
- design and customize different types cable solution;
 |
 |
 |
 |
As a super of integrating manufacturer&sales, we can help design, manufacture, and processing for incoming materials&drawing even help you purchase products from China market. Please contact sales from here molly@aohuadz.com.
