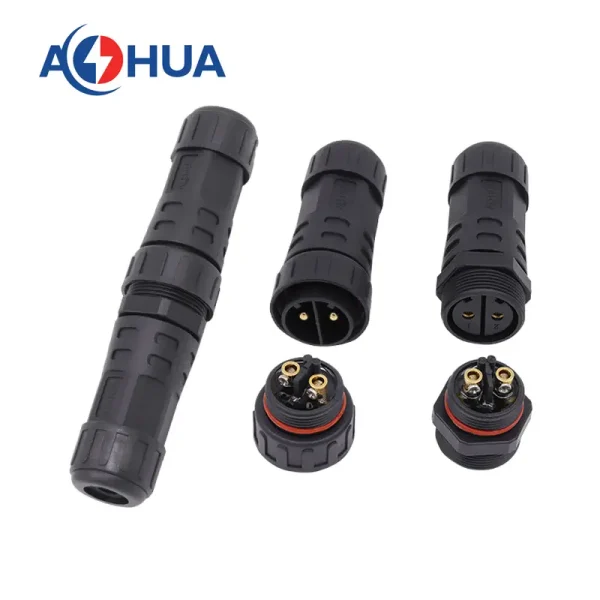

35A 2pin M29 power cable male female connector
35A 2pin M29 power cable male female connector
P/N: AH-M29-3502MMZ01122/AH-M29-3502FFZ01122
Material: Nylon
Color: Black
Certificate: CE/ROHS/UL/TUV
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

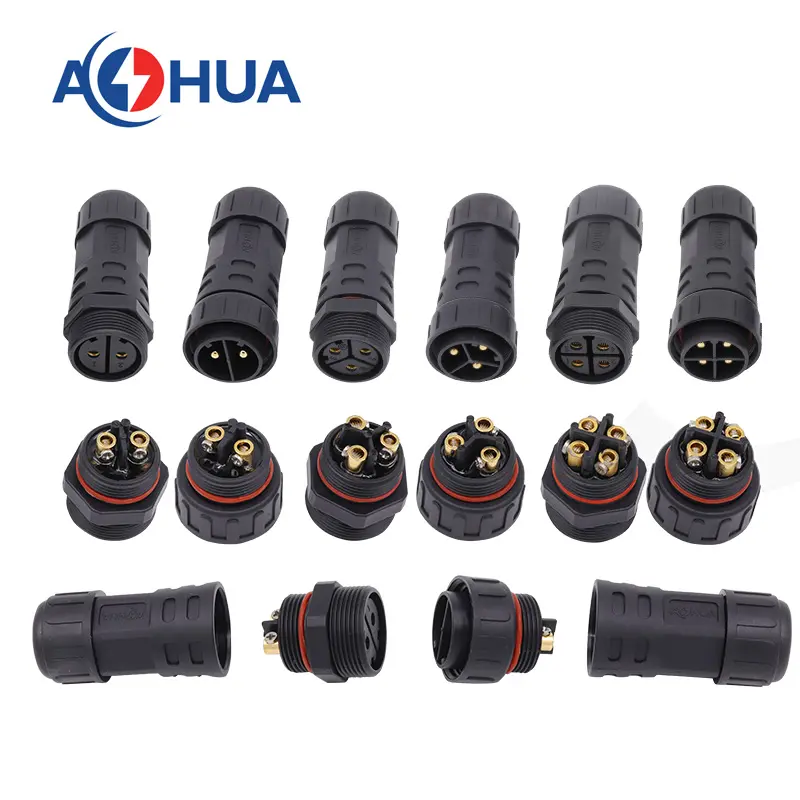

M29 waterproof connector
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M29-3502MMZ01122/AH-M29-3502FFZ01122 | ≤6.0mm² | 300V | 35A |
| 3 | AH-M29-3503MMZ01122/AH-M29-3503FFZ01122 | ≤6.0mm² | 300V | 35A |
| 4 | AH-M29-2504MMZ01122/AH-M29-2504FFZ01122 | ≤4.0mm² | 250V | 25A |
| Cable OD | 10mm-15mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP68 |
| Seal Ring | 20.6*13*10/12/13/15mm |
