Electrical Wire Extension Cable 10A 1.0 1.5 MM 14 16 18AWG Molding 3pin M15 Waterproof Male Female Cable Connector
Electrical Wire Extension Cable 10A 1.0 1.5 MM 14 16 18AWG Molding 3pin M15 Waterproof Male Female Cable Connector

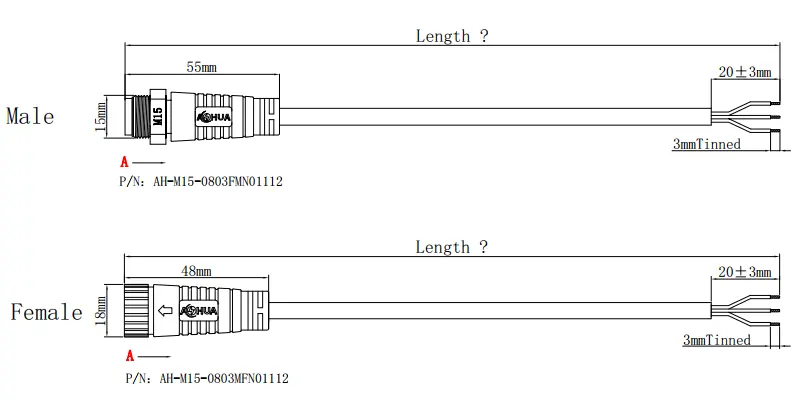

P/N: AH-M15-0803FMN01112/AH-M15-0803MFN01112
Connector: Nylon
Cable: PVC/rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS/UL
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

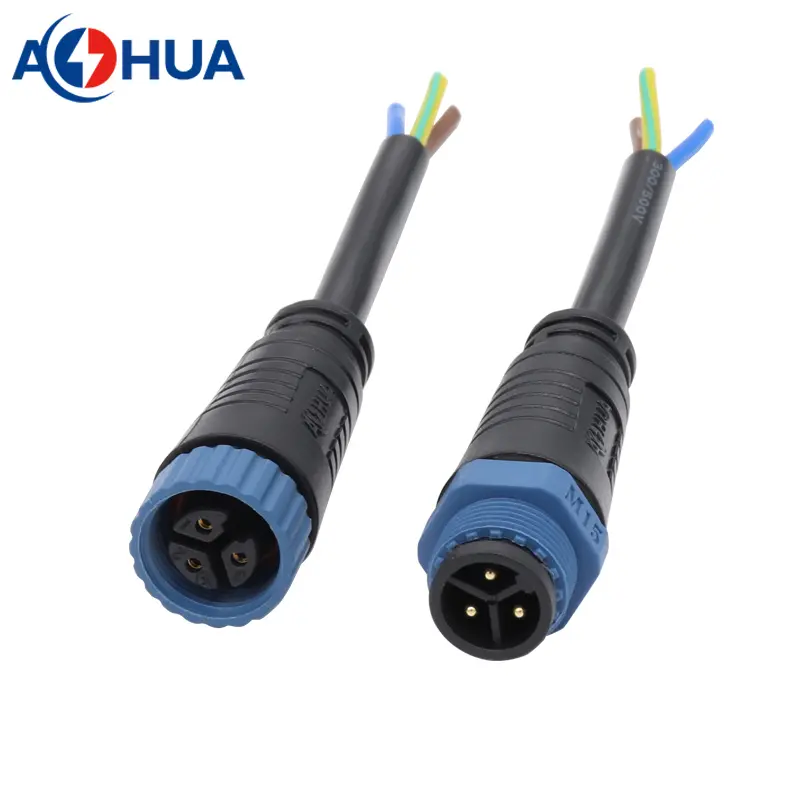

M15 Male Female Waterproof Connector

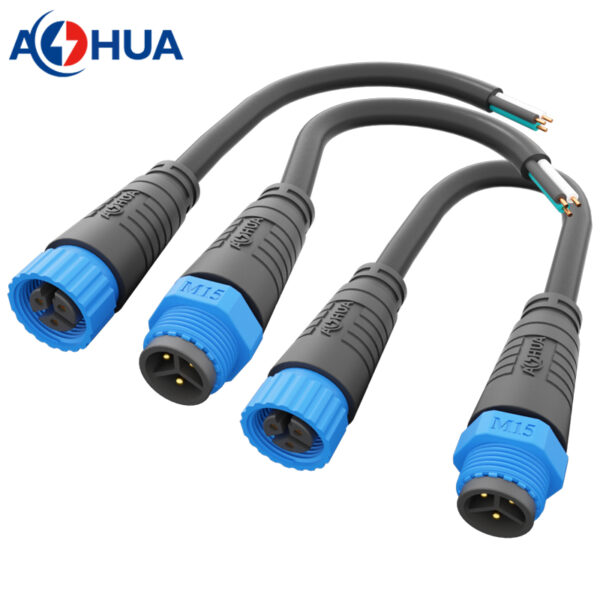

3PIN Standard Waterproof Plug
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M15-0803FMN01112/AH-M15-0803MFN01112 | ≤1.5mm² | 300V | 8A |
| Cable OD | 3.5mm-8.8mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105 |
| Waterproof Level | IP67 |
| Wire Gauge | AWG | mm² |
| 3pin | 14AWG
16AWG 18AWG 20AWG |
1.5mm²
1.0mm² 0.75mm² 0.5mm² |
UL certified wire size: 3*14AWG OD9.3±0.2mm; 3*16AWG OD8.4±0.2mm. Black Rubber cable.
