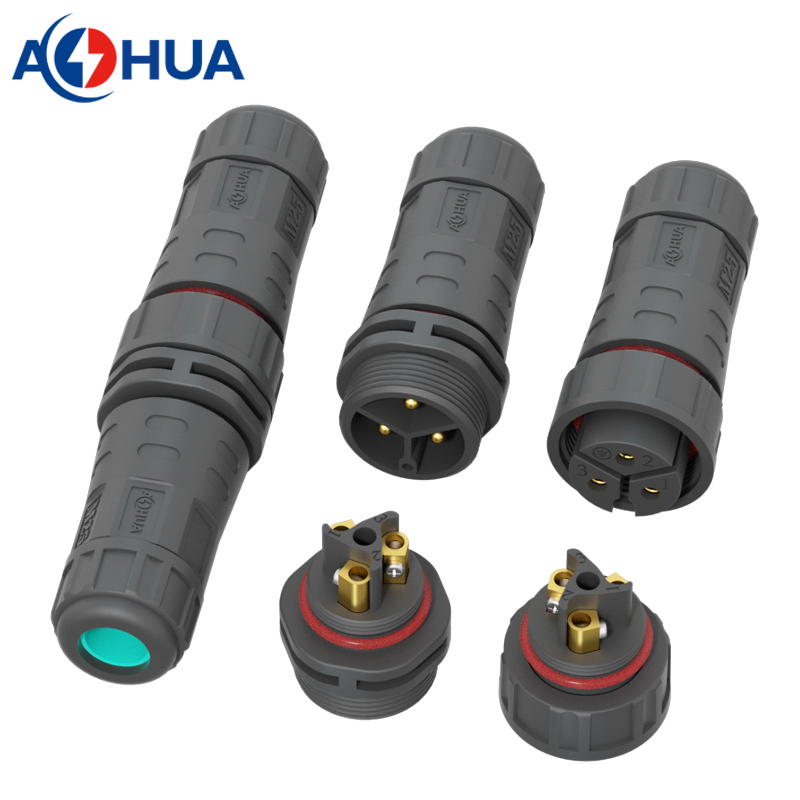

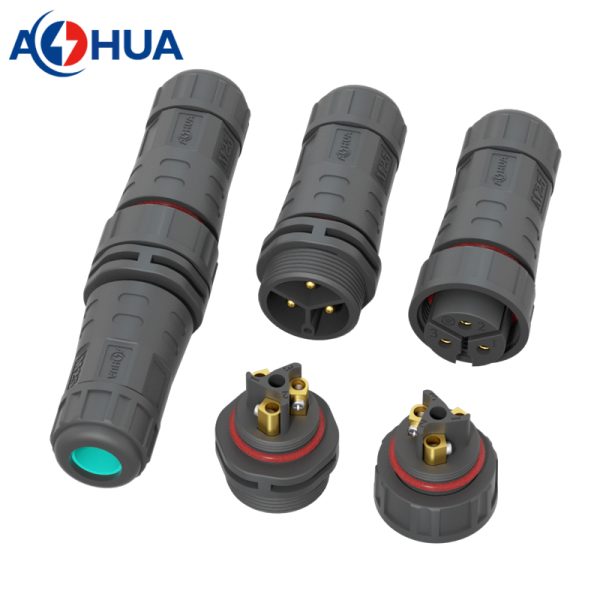

3pin M25 φ3mm Power Plug Cord Extension Cable Waterproof Connector For LED Lighting Outdoor
3pin M25 φ3mm Power Plug Cord Extension Cable Waterproof Connector For LED Lighting Outdoor
Male: AH-M25-2503FMZ02122
Female: AH-M25-2503MFZ02122
Contacts: 3pin
Conductor: φ3.0mm
Rated Voltage: 500V
Rated Current: 25A
Wire Gauge: ≤2.5mm²
Cable OD: 6-12mm
Plastic Material: PA66
Certificatet: CE/ROHS
Waterproof Grade: IP68
Mechanical Life: 3000 mating cycless
Operating Temperature: -40℃~+105℃
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
3pin M25 φ3mm Power Plug Cord Extension Cable Waterproof Connector For LED Lighting Outdoor

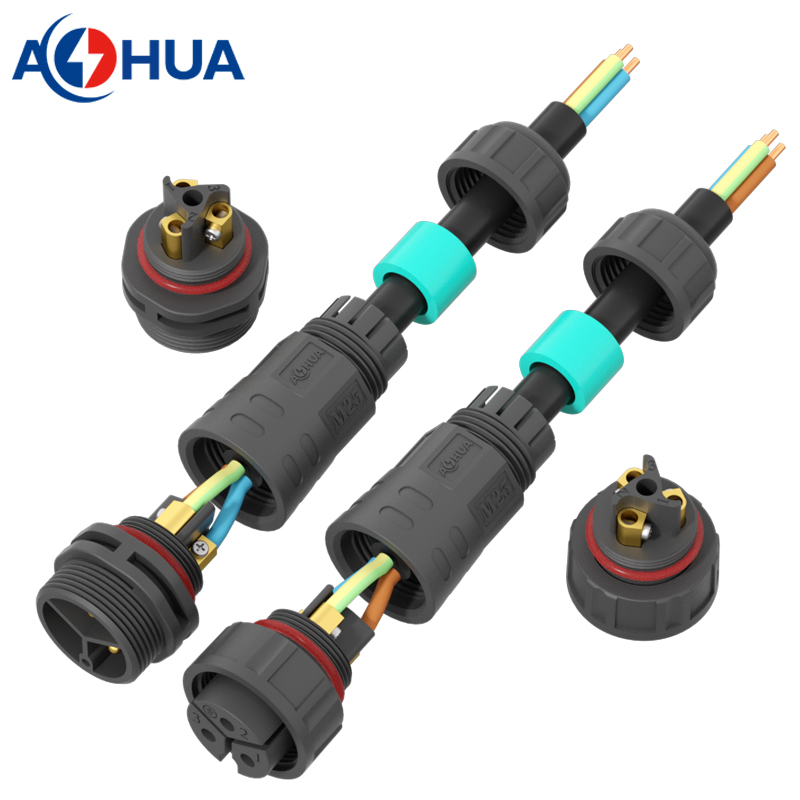

Component: waterproof nut, cable gland, enclosure, coupling nut, O-ring, connector cores.
How to order: Please specify the working ampere, wire gauge and cable OD of you want to connect, then check the datasheet for checking. Or leaves message to our sales. We help double check the connector whether is OK. |
 |
| Model | M25 |
| Pins | 3pin |
| Rated Voltage | 500V |
| Rated Current | 25A |
| Wire Gauge | ≤2.5mm² |
| Cable OD | 6-12mm |
| Waterproof Grade | IP68 |
| AH-M25-CAP-M
Dust cap for male connector(connector with outside threads) |
AH-M25-CAP-F
Dust cap for female connector(connector with inside threads) |
 |
 |
