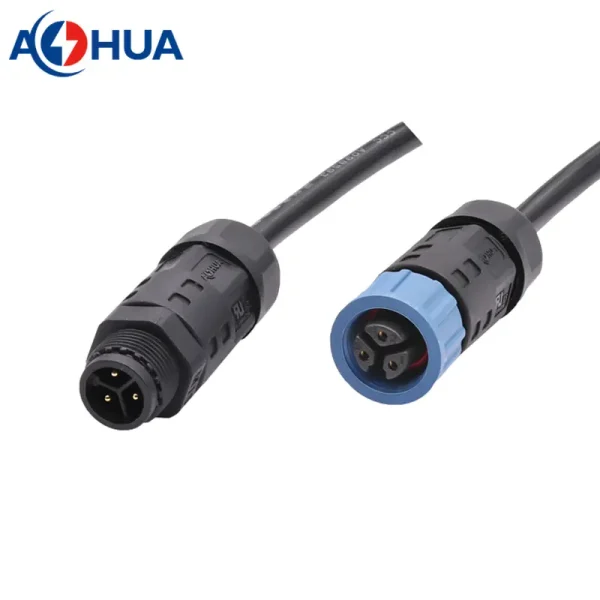

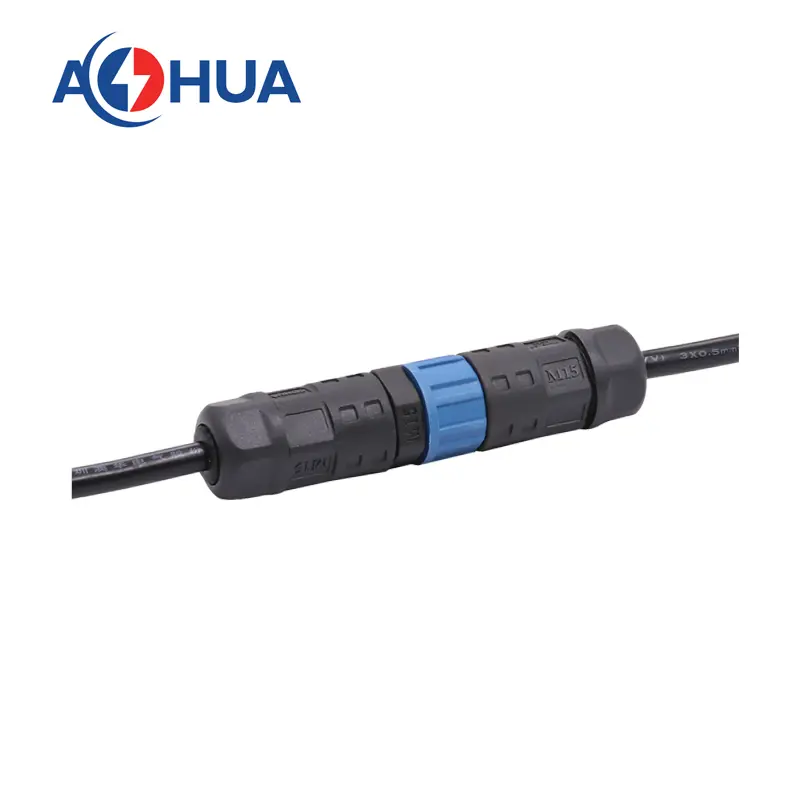

3pin standard M15 assembly waterproof plug
3pin standard M15 assembly waterproof plug
P/N: AH-M15-1003FMZ01112/AH-M15-1003MFZ01112
Material: Nylon
Color: Black
Certificate: CE/ROHS/UL
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

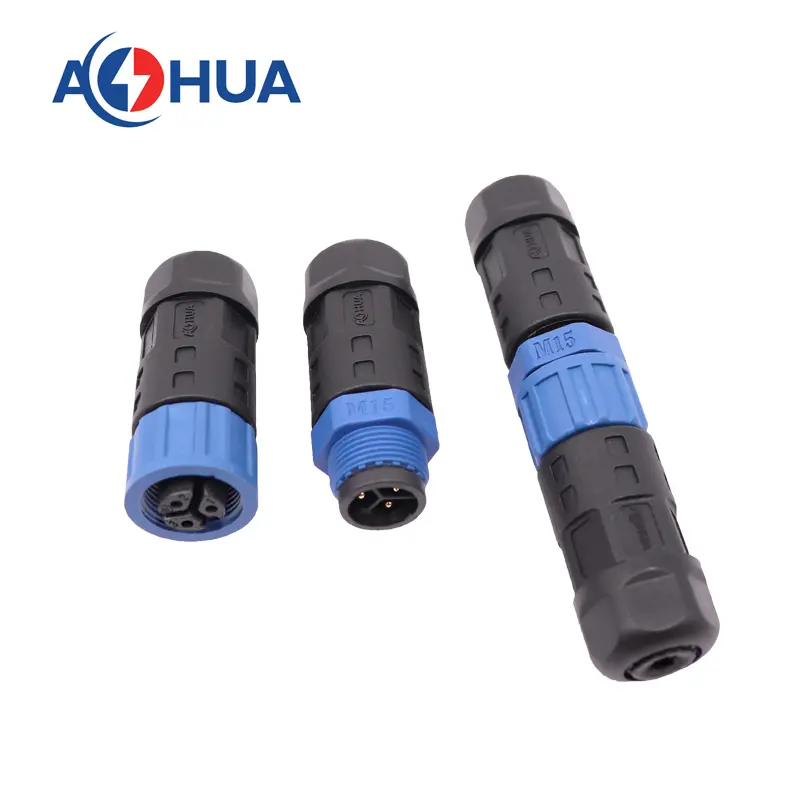

M15 male female connector
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 | AH-M15-1002FMZ01112/AH-M15-1002MFZ01112 | ≤1.5mm² | 300V | 10A |
| 3 | AH-M15-1003FMZ01112/AH-M15-1003MFZ01112 | ≤1.0mm² | 300V | 10A |
| Cable OD | 5.0mm-10.0mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
| Seal Ring | 13mm*9mm*6.5/7.5/8.5/9.5/10mm |
