4pin M15 waterproof cable connector
4pin M15 waterproof cable connector

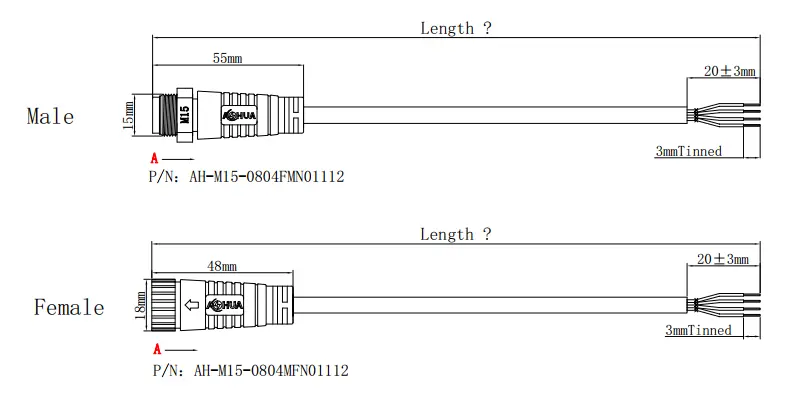

P/N: AH-M15-0804FMN01112/AH-M15-0804MFN01112
Connector: Nylon
Cable: PVC/rubber
Color: Black
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

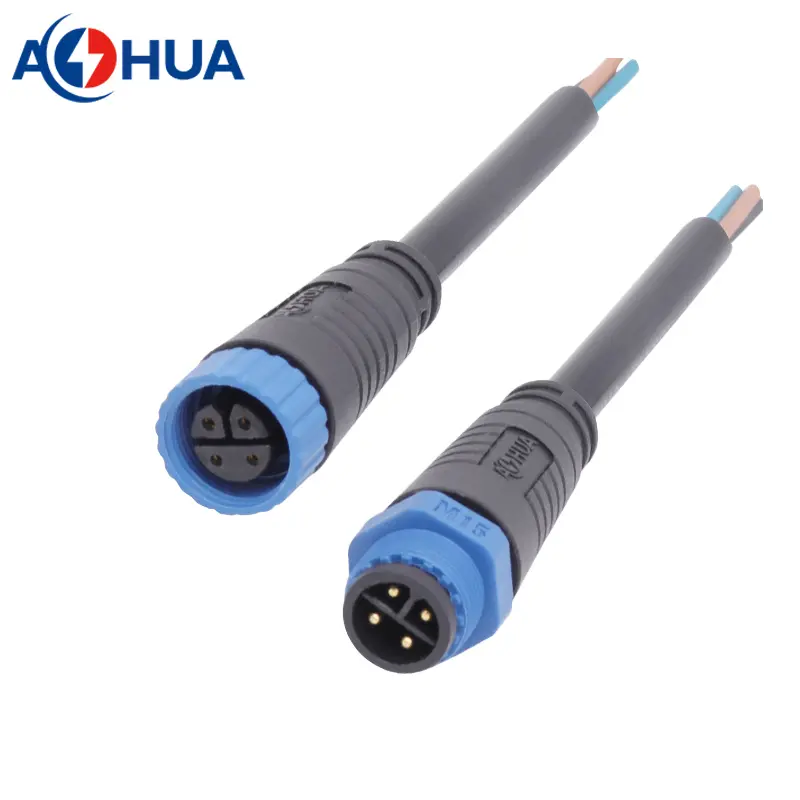

M15 Male Female Waterproof Connector
4PIN Waterproof Plug
| PINs | Part Number | Wire Gague | Voltage | Current |
| 4 | AH-M15-0804FMN01112/AH-M15-0804MFN01112 | ≤1.0mm² | 250V | 8A |
| Cable OD | 3.5mm-8.8mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105 |
| Waterproof Level | IP67 |
| Wire Gauge | AWG | mm² |
| 4pin |
16AWG 18AWG 20AWG 22AWG |
1.0mm² 0.75mm² 0.5mm² |
