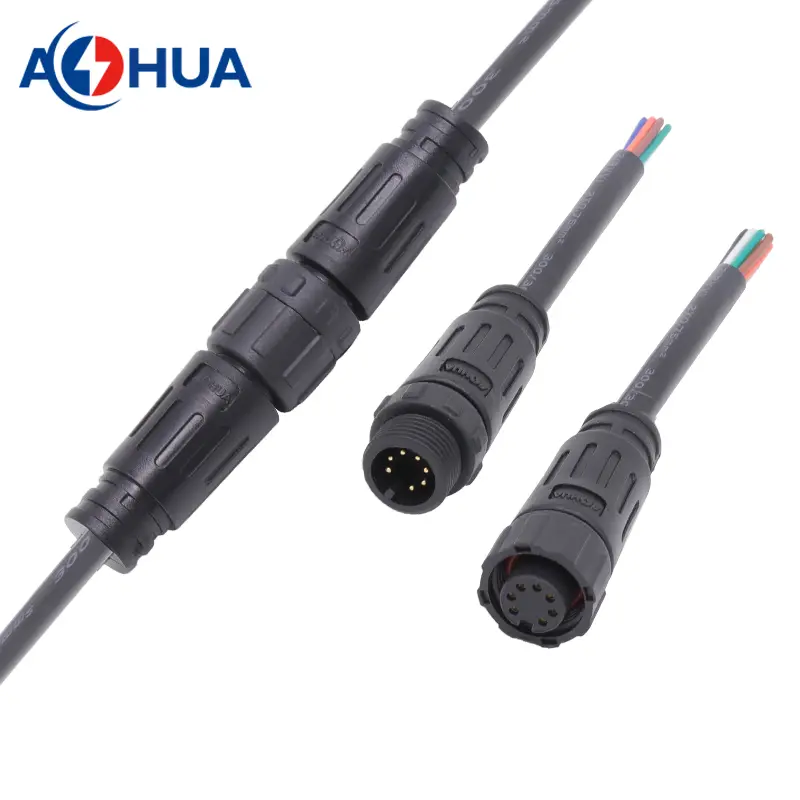

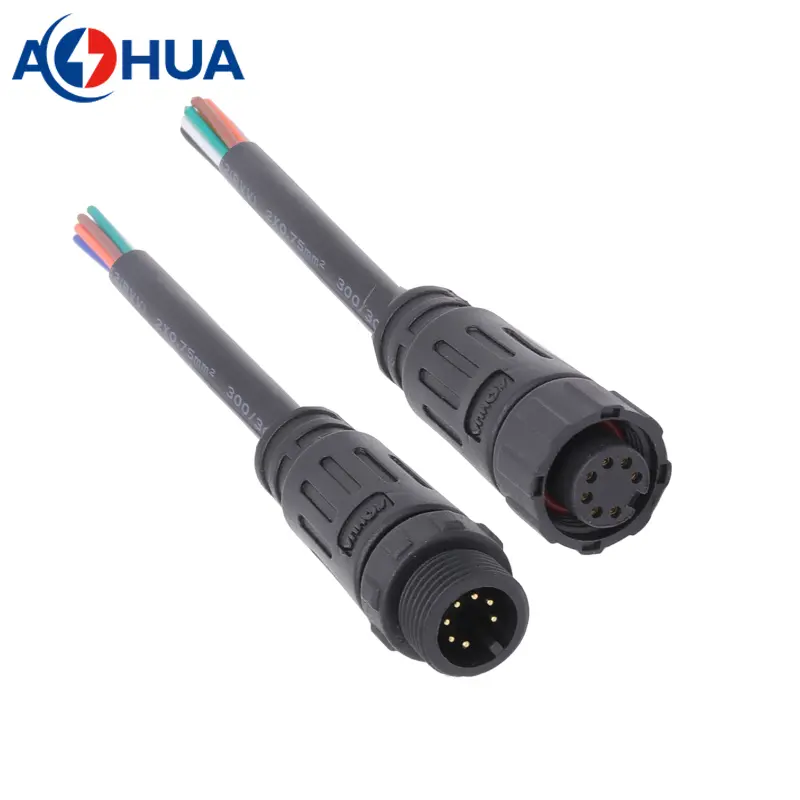

7pin M12 male female cable connector
7pin M12 male female cable connector

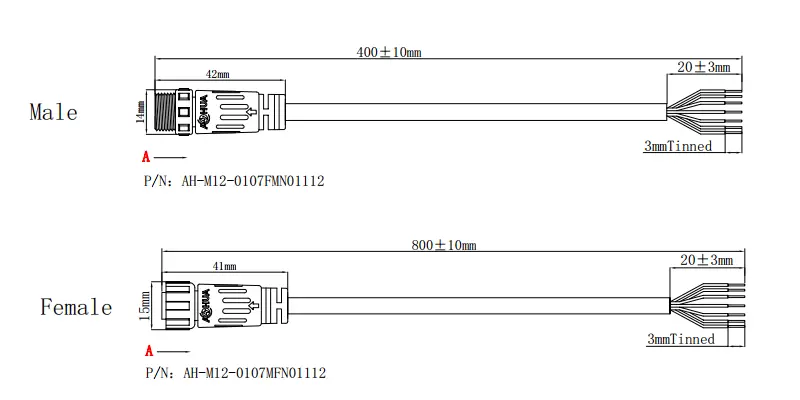

P/N: AH-M12-0107FMN01112/AH-M12-0107MFN01112
Connector: Nylon
Cable: PVC
Color: Black
Length: customized on demand
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
M12 waterproof connector 7pin
| PINs | Part Number | Wire Gague | Voltage | Current |
| 7 | AH-M12-0107FMN01112/AH-M12-0107MFN01112 | ≤0.2mm² | 60V | 1A |
| Cable OD | 3.5mm-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~+105℃ |
| Waterproof Level | IP67 |
