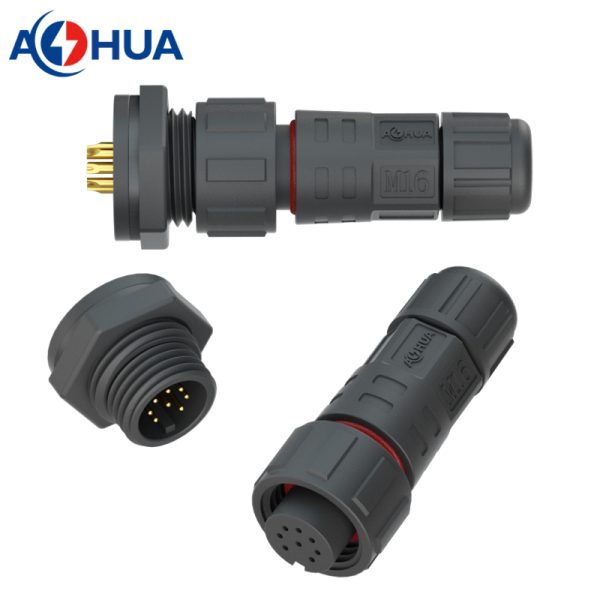

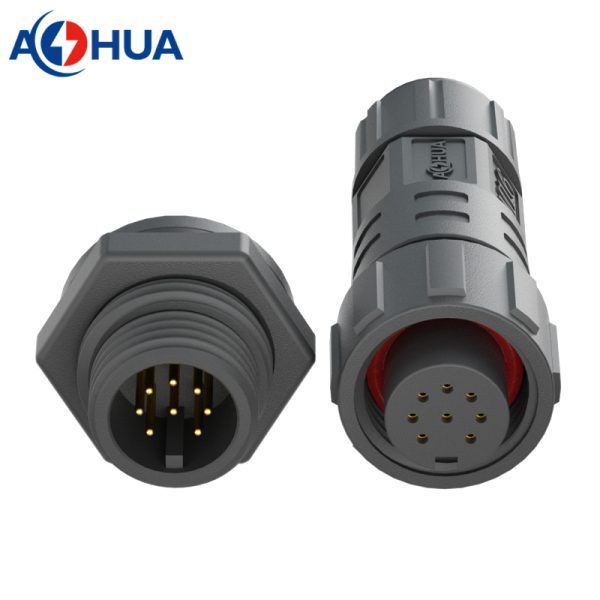

8pin M16 Signal Wiring Harness Front Panel Mount Male Female Waterproof Electic Connectors
8pin M16 Signal Wiring Harness Front Panel Mount Male Female Waterproof Electic Connectors
Model: M16
Male: AH-M16-0508FMF01112
Female: AH-M16-0508MFZ01112
Contacts: 8pin
Conductor: φ0.8mm
Rated Voltage: 110V
Rated Current: 5A
Wire Gauge: ≤0.2mm²
Cable OD: 3-7.5mm
Plastic Material: PA66
Conductor: gold plated brass
Mechanical Life: 3000mating cycles
Operating Temperature: -40℃~+105℃
Certificate: CE/ROHS
Waterproof Grade: IP68
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
8pin M16 Signal Wiring Harness Front Panel Mount Male Female Waterproof Electic Connectors
Part Number:
Male: AH-M16-0508FMF01112
Female: AH-M16-0508MFZ01112
| Model | M16 |
| Contacts | 8pin |
| Rated Voltage | 110V |
| Rated Current | 5A |
| PIN Diameter | φ0.8mm |
| Wire Gauge | ≤0.2mm² |
| Cable OD | 3-7.5mm |
| Mechanical Life | 3000 mating cycles |

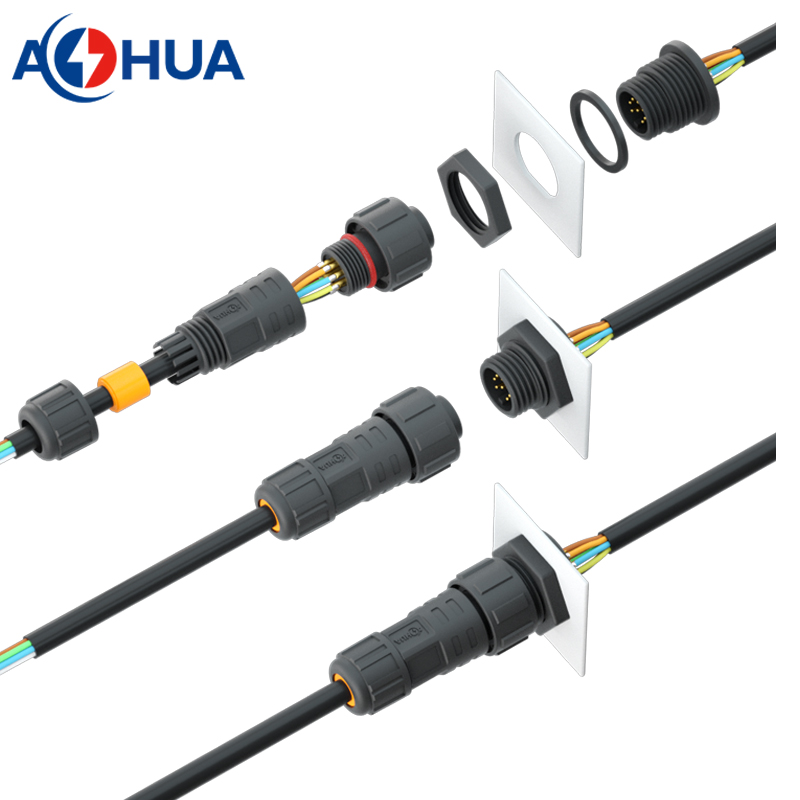

| Please specify the connector type such as male panel type or female panel type, front panel mount or rear panel type. | This is front panel type connector. The hex nut is in front of the box, which is screwing the nut outside the box. |
 |
 |
- There are dust caps for male and female connector to protect from dust and water. You need to specify whether you need dust caps or not when order.
| AH-M16-CAP-M | AH-M16-CAP-F |
 |
 |
