Adapter Power Supply Parallel Wiring 2*22AWG Barrel Male To Female Quick 5.5 x 2.1 mm DC Jack
Adapter Power Supply Parallel Wiring 2*22AWG Barrel Male To Female Quick 5.5 x 2.1 mm DC Jack
- customize the cable solution as you need, please contacts sales manager with detail request;
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Adapter Power Supply Parallel Wiring 2*22AWG Barrel Male To Female Quick 5.5 x 2.1 mm DC Jack

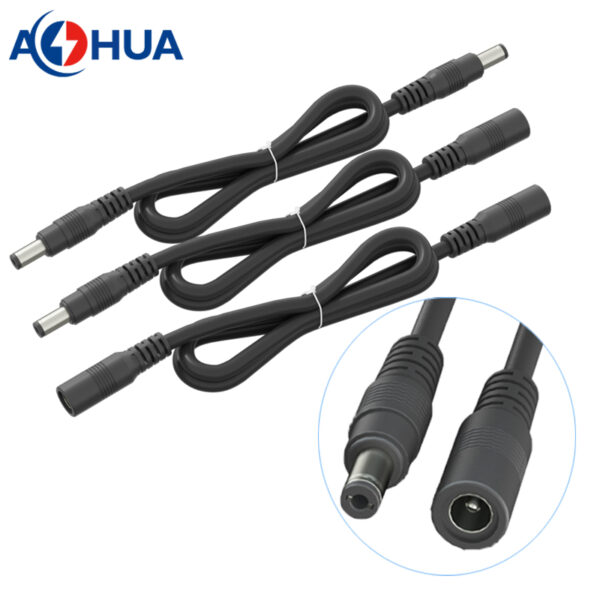

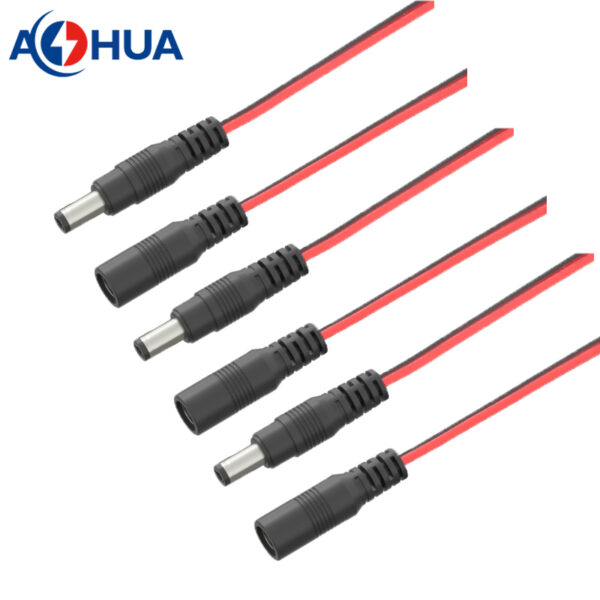

- This is male to female M11 quick connecting type DC jack connector.
- The male and female is molding with cable, the cable can be round or parallel wire.
- Plastic: PVC material
- Conductor: barrel copper
- Cable: PVC such as UL2464
- Cable Length is customized as you need;
- Color can be white or black.
- DC metal size is 5.5*2.1 or 5.5*2.5mm.
Specification
- Contacts: 2pin
- Voltage Rating: 60V
- Current Rating: 5A
- Wire Gauge: ≤0.75mm²
- Cable OD: 3-5.5mm
- Waterproof Grade: IP65
How to customize this DC jack cable solution?

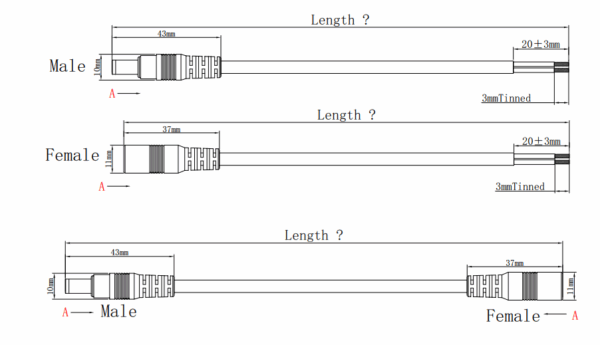

As we customize this cable solution according to the request from clients, so it would be great thanks if you can provide a drawing with annotations. And we want to know about:
- working ampere, such as 4A;
- wire size, such as 20AWG;
- cable length, such as 500mm each side;
- DC metal size, such as 5.5*2.1mm
- Color, such as black;
Any other customized request also be considered with, please send us with details.
