AH-M20-1503FFN01112 AH-M20-1503MMN01112 Male Female M20 Power Cable SJOW VDE Cable Waterproof IP68 Molding LED Connector 3-pin
AH-M20-1503FFN01112 AH-M20-1503MMN01112 Male Female M20 Power Cable SJOW VDE Cable Waterproof IP68 Molding LED Connector 3-pin
- Model: M20
- Contacts: 3pin
- 15A/300V
- customize wire gauge and cable length
- Waterproof IP68
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AH-M20-1503FFN01112 AH-M20-1503MMN01112 Male Female M20 Power Cable SJOW VDE Cable Waterproof IP68 Molding LED Connector 3-pin

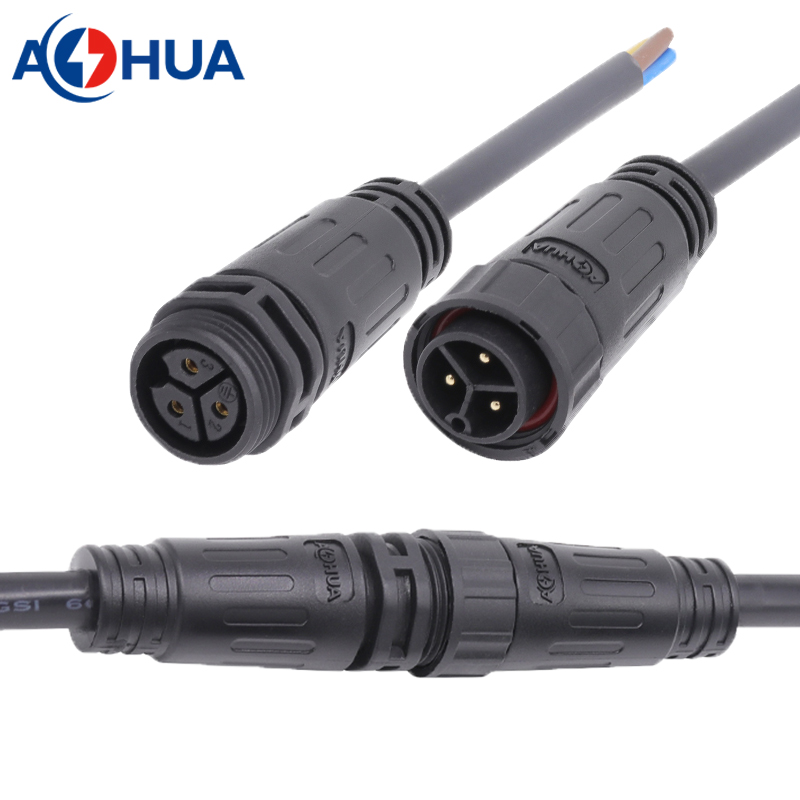

This is pre-molding cable led connector 3pin for power. The male and female connectors are coming with cable and it is customized as specified wire gauge and cable length.

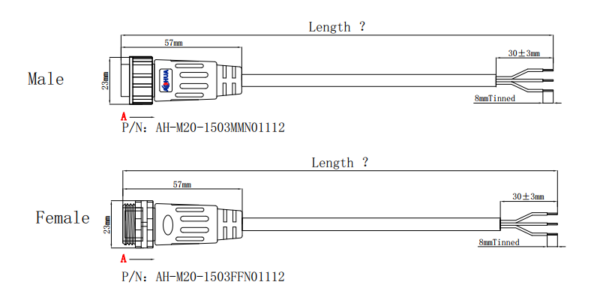

Part Number
- Male: AH-M20-1503MMN01112
- Female: AH-M20-1503FFN01112
Material
- Plastic Material: PA66
- Conductor Material: gold plated brass
- Cable Material: you can specify from PVC, rubber, TPU, PU and so on.
Specification
- Contacts: 3pin
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5-12mm
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 3000 mating cycles
- Waterproof Grade: IP68
Certificate
- General certificate is CE & ROHS, we call it general version.
- UL certificate includes CE & ROHS & UL, we call it UL version.
How to order
- It’s really appreciated if you can create a simple drawing for what the cable solution you need.
- Please confirm the connector type, such as connector with open wire or extension cable with connector on both side.
- Also please specify the working ampere, wire gauge, cable length and customized requirements.
