AHUA 5.5*2.1 5.5*2.5mm DC adapter male female quick connecte power connector splitter
AHUA 5.5*2.1 5.5*2.5mm DC adapter male female quick connecte power connector splitter
AH-YP03-0202-M11
Material: PVC
Color: Black /white
Contacts: 2pin
Cable legnth: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

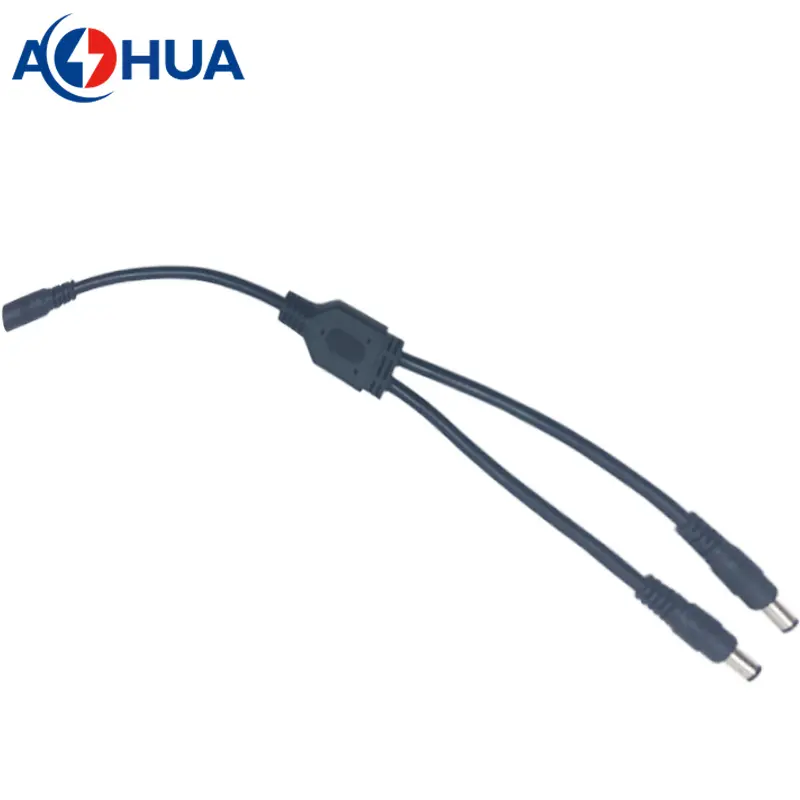

M11 DC Cable Splitter 1 to 2
YP03 splitter molded with wire 2*22AWG, also molded with DC connector. Length customzied.
DC metal size is 5.5*2.1mm or 5.5*2.5mm.
| Contacts | 2pin |
| Color | Black/White |
| Voltage Rating | 60V |
| Currenting Rating | 4A |
| Wire Gauge Range | 24AWG-20AWG |
| Cable OD | 3.5mm-5.0mm |

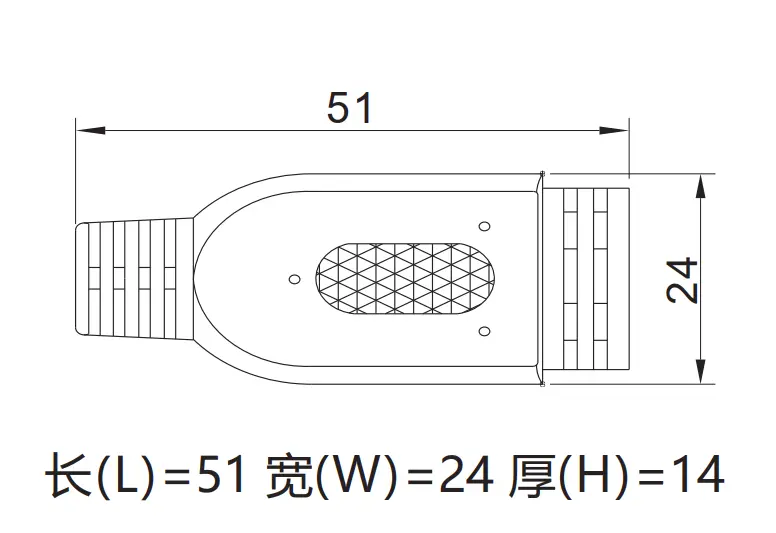

YP03 Splitter Size:

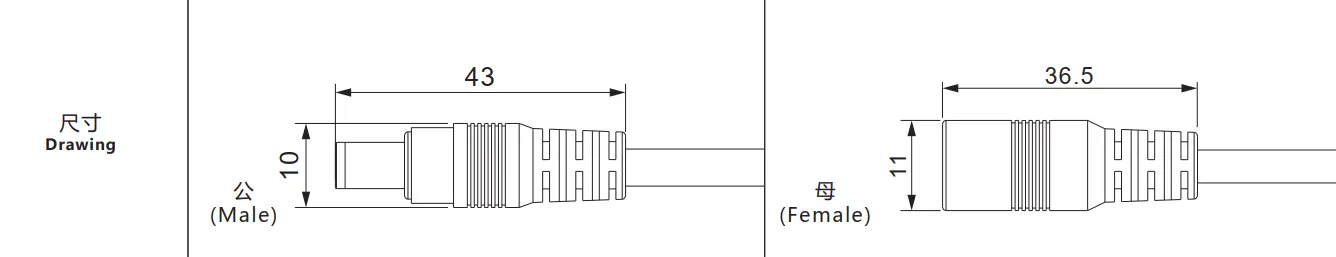

DC Connector Size:

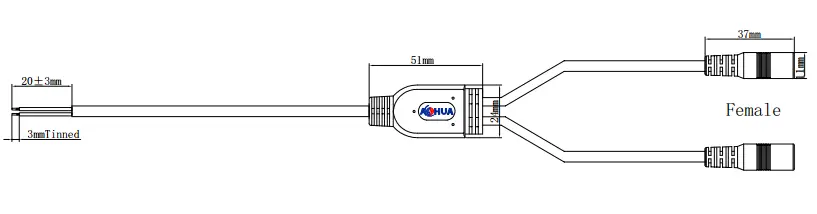

1 to 2 DC Cable Splitter DRAWING:
