AHUA cable solution M20 distributor male female assembly F type wire connector 1 to 2 3 4 socket for led lighting
AHUA cable solution M20 distributor male female assembly F type wire connector 1 to 2 3 4 socket for led lighting
AH-M20
Material: nylone
Contacts: 2 pin and 3 pin
Wire Gauge: 0.5mm² ~ 1.5mm²
Voltage Rating: 300V
Current Rating: 15A
Cable Material: PVC or Rubber
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
Cable solution M20 distributor waterproof male female assembly F type wire connector 1 to 2 3 4 socket

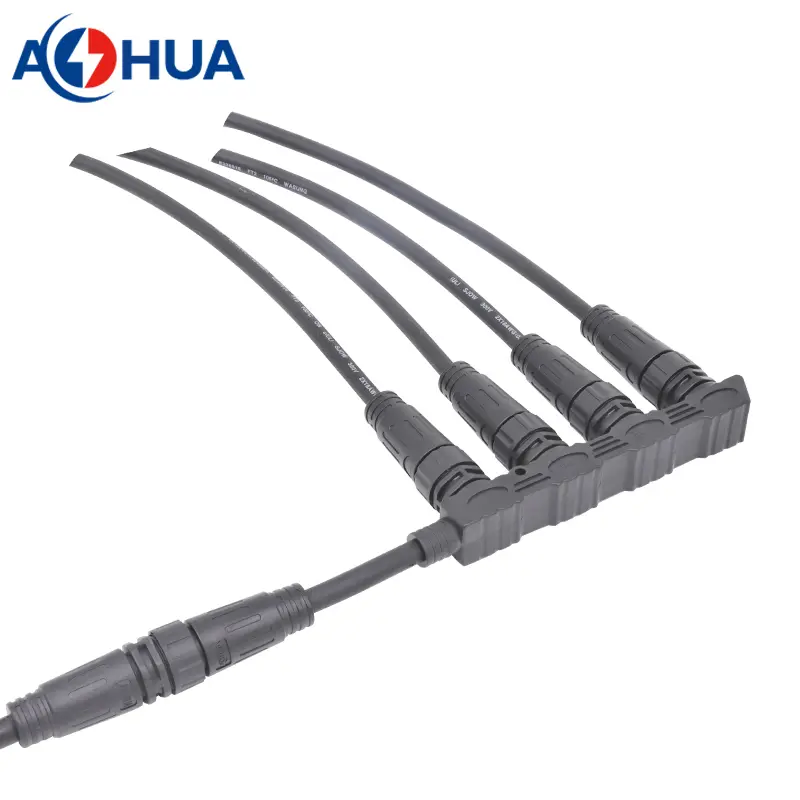

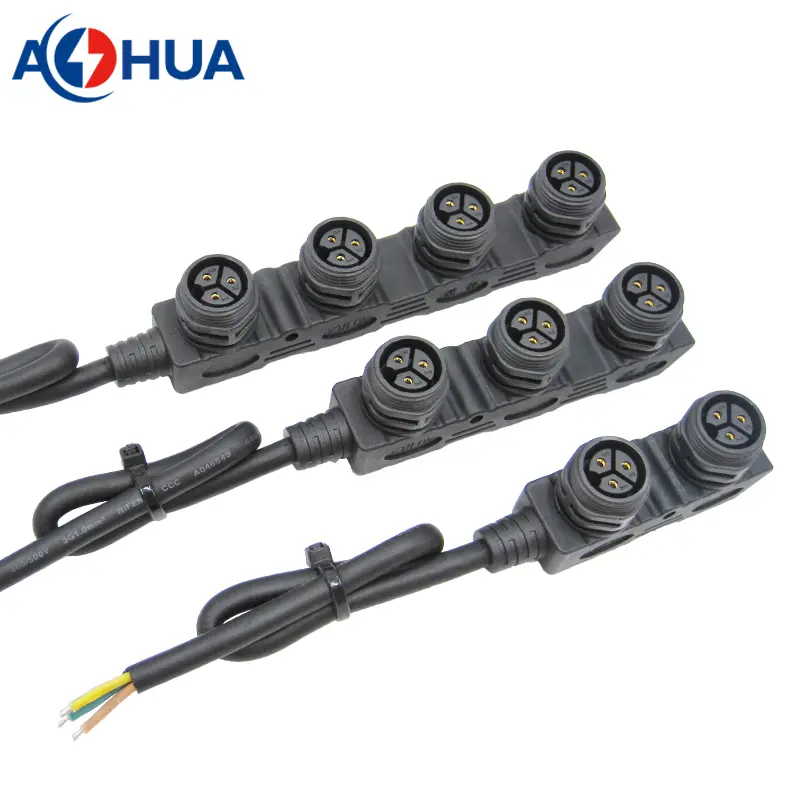

M20 distributor waterproof connector is designed based on the M15 distributor, but it is suitable for 2 pin and 3 pin. The socket have 2, 3 and 4, the connector is also keep the same as M15, Parallel or Series.
On the main cable for 2pin, the wire gauge is from 0.5mm² to 1.5mm². The branch wire gauge is from 0.5mm² to 1.0mm².

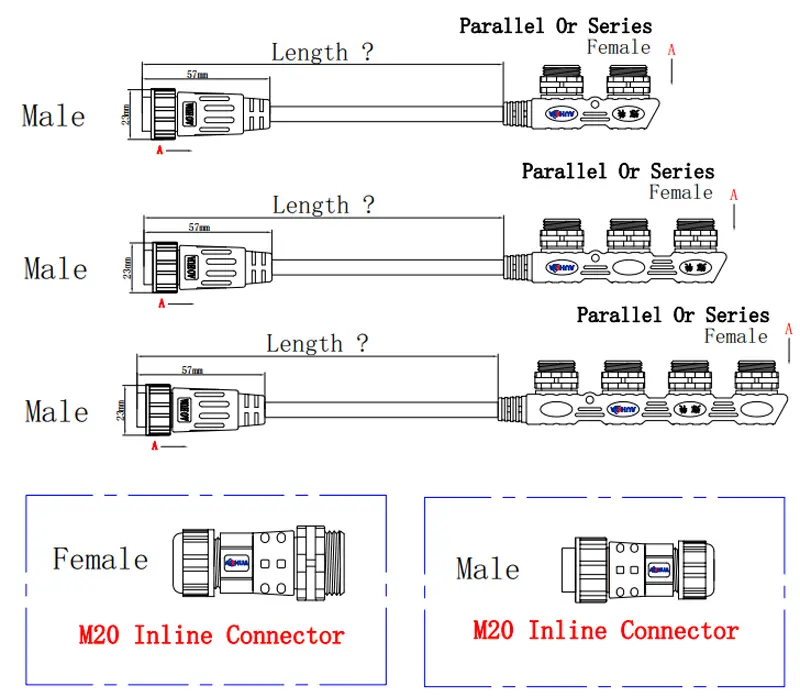

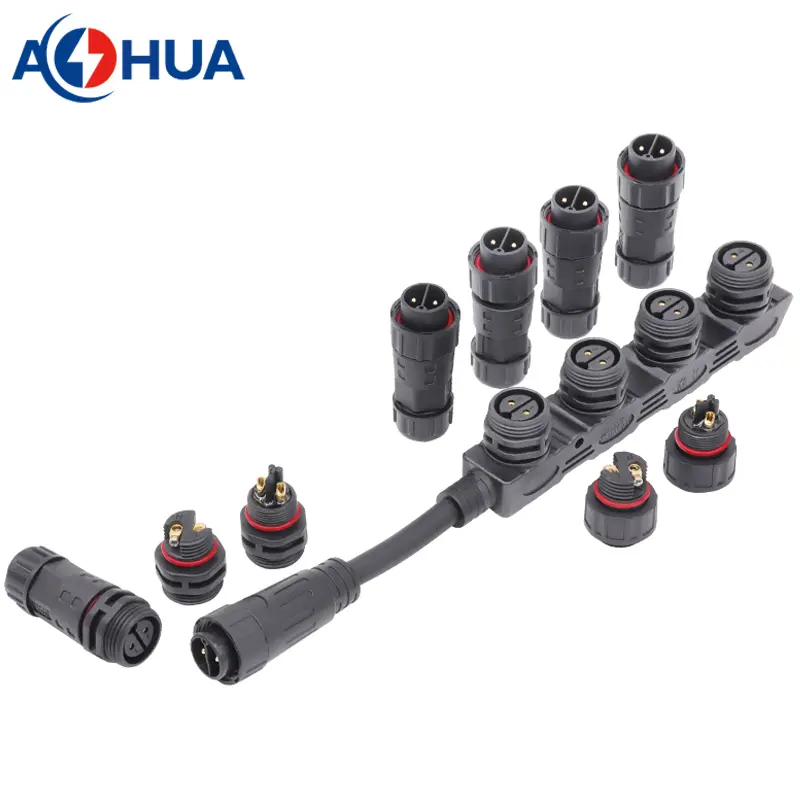

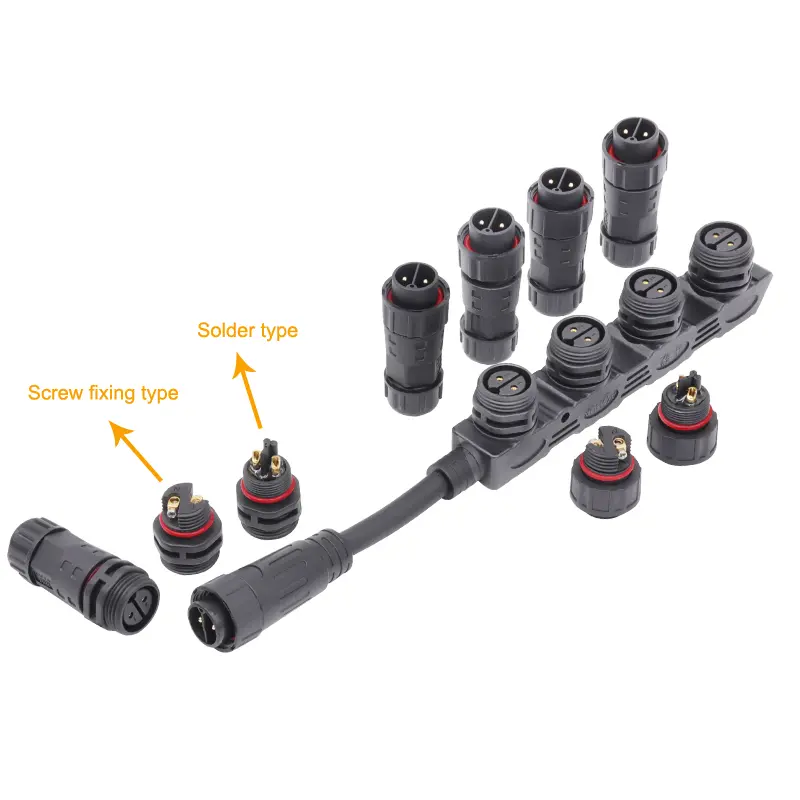

On this sketch, the main cable molded with male connector, there is a female inline connector(assembly) to match with. The female is screw type or solder type for choosing from. Meanwhile, the branch connector is male inline connector to match with the socket, which is solder type or screw fixing type. Of course, the inline connector can be replaced by the molded cable connector.
Part Number:
Parallel
| Sockets | 2PIN | 3PIN |
| 2 | AH-M20-1002FFO2P112 | AH-M20-0503FFO2P112 |
| 3 | AH-M20-1002FFO3P112 | AH-M20-0503FFO3P112 |
| 4 | AH-M20-1002FFO4P112 | AH-M20-0503FFO4P112 |
Series
| Sockets | 2PIN |
| 2 | AH-M20-1002FFO2S112 |
| 3 | AH-M20-1002FFO3S112 |
| 4 | AH-M20-1002FFO4S112 |
Wire Gauge
| Item | 2 PIN | 3 PIN |
| Voltage Rating | 300V | 110V |
| Current Rating | 10A | 5A |
| Wire Gauge | ≤1.5mm² | ≤1.0mm² |
Parameter
| Cable OD | 6.8mm~10.1mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -40℃~105℃ |
| Waterproof Level | IP67 |
| Seal Ring | 13*6.5/7.5/8.5/9.5/10mm |
There are 2 pin and 3 pin for choices, before quotation, please make a sketch with datas, such as voltage, current, wire gague, cable OD, parallel or series, socket’s number and so on.
