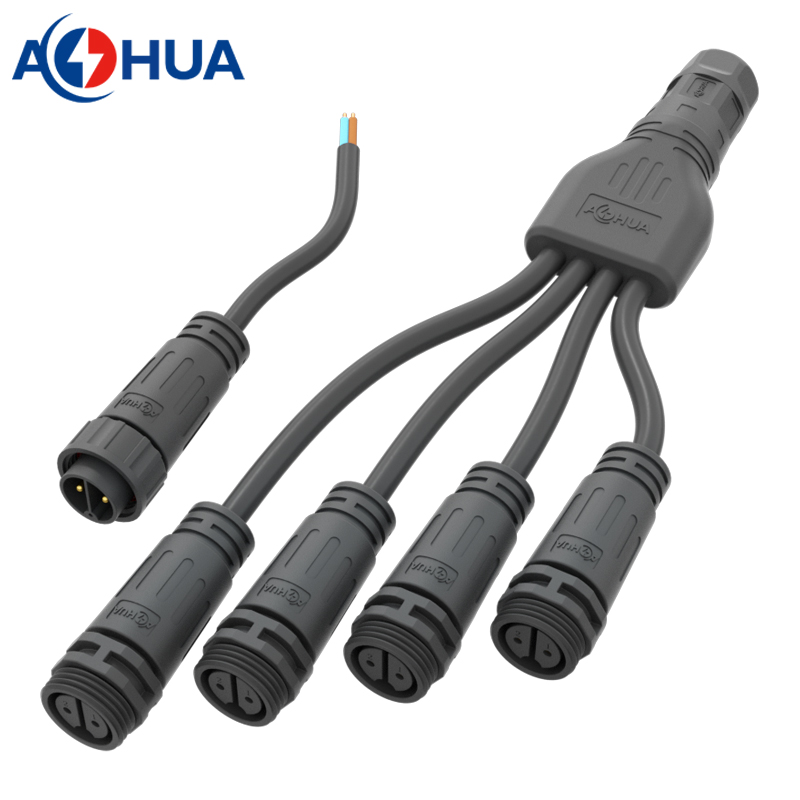

AHUA Customized 1 To 4 2pin M20 15A Male Female Cable Plug LED Module Waterproof Cable Splitter
AHUA Customized 1 To 4 2pin M20 15A Male Female Cable Plug LED Module Waterproof Cable Splitter
- Model: YM20
- P/N: AH-YM20-0204
- Rated Voltage: 300V
- Rated Current: 10A
- Wire Gauge: main-1.5/1.0mm², branch-1.0/0.75/0.5mm²
- Cable OD: main-5~10mm, branch-3~8.0mm
- Plastic Material: PA66
- Conductor: copper
- Cable Length: customized as required
- Connection: Parallel or Series
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AHUA Customized 1 To 4 2pin M20 15A Male Female Cable Plug LED Module Waterproof Cable Splitter
Hightlight:
- Here is the cable connector manufacturer located in Shenzhen. We mainly customize the cable harness waterproof splitter for led module for horticulture lighting.
- The input terminal is push wire type for wiring operation.
- The output is multiple cables molding that is coming with cable directly.
- The output cable end cable be keep open wire end or molded with female connector. The mating connector can be assembly type or molding connector.
Characteristics
- Model: YM20
- Contacts: 2pin
- Plastic Material: PA66
- Cable Material: PVC/Rubber
- Conductor: copper
- Cable Length: customized required.
- Connection: Parallel or Series.

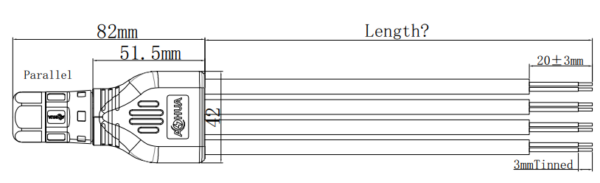

How to customize your own waterproof cable splitter?
- You can design your own cable solution, and create the a sketch or simple drawing for us.
- And specify the detail requirement includes: contacts, working ampere, wire gauge and cable length or cable OD, connection and so on.
