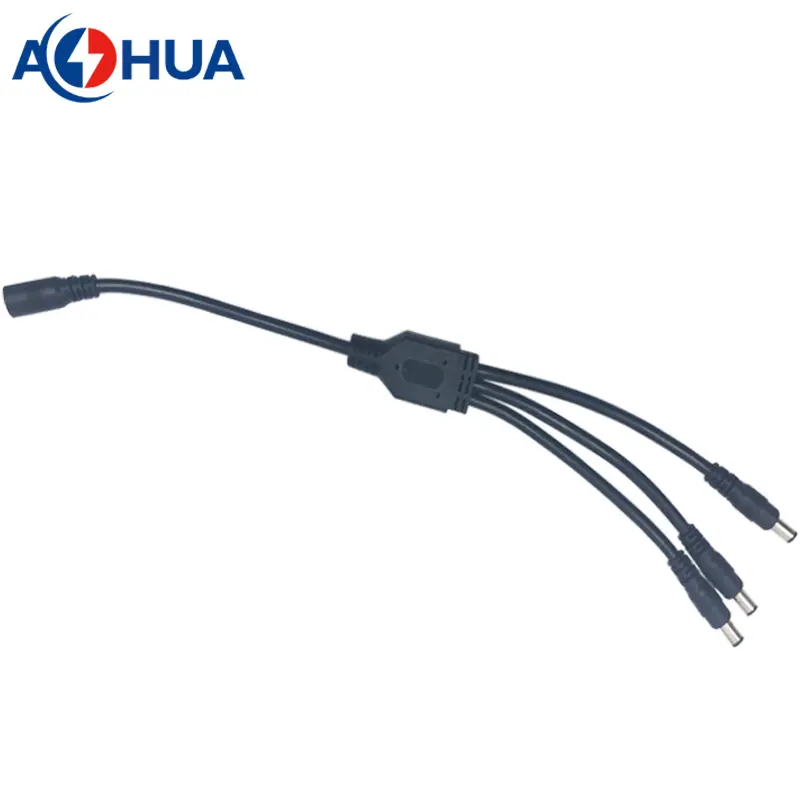

AHUA Customized Y Splitter Type 1 to 3 DC power 2.1 2.5mm Power Cable Connector
AHUA Customized Y Splitter Type 1 to 3 DC power 2.1 2.5mm Power Cable Connector
AH-YP03-0203-M11
Material: PVC
Color: Black /white
Contacts: 2pin
Cable legnth: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
Y type splitter molded with M11 DC connector. The main cable is female dc connector input and the branches are male dc connector output.
The solution designed is main cable 20AWG wire and branch cable 22AWG wire. The cable length is customzied as each requirements.
The DC connector diameters as below:
| Solution | 1 to 3 DC connector |
| DC metal size | 5.5*2.1mm /5.5*2.5mm |
| Contacts | 2pin |
| Color | Black/White |
| Voltage Rating | 60V |
| Currenting Rating | 4A |
| Wire Gauge Range | 24AWG-20AWG |
| Cable OD | 3.5mm-5.0mm |
| Mechnical Life | 500 mating cylces |

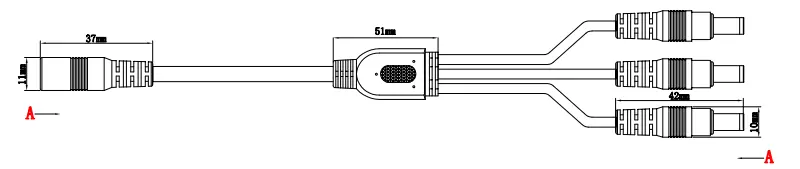

The solution drawing of 1 to 3 cable splitter:

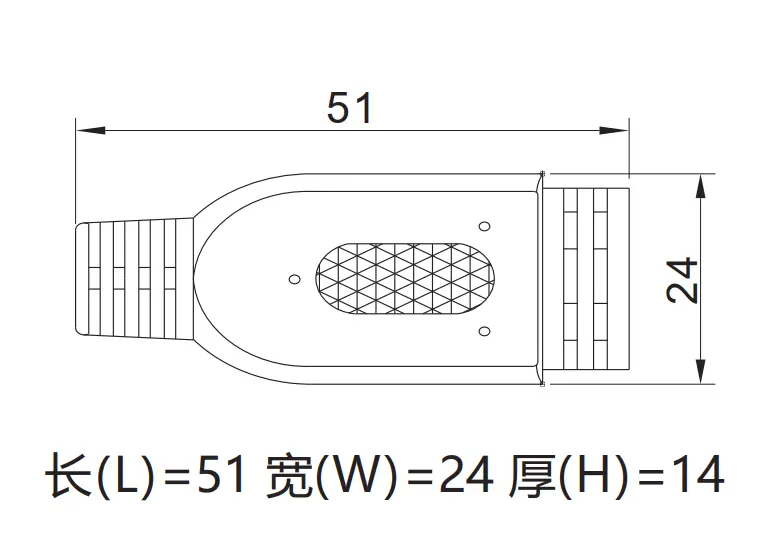

The splitters diameter, length/width/height:

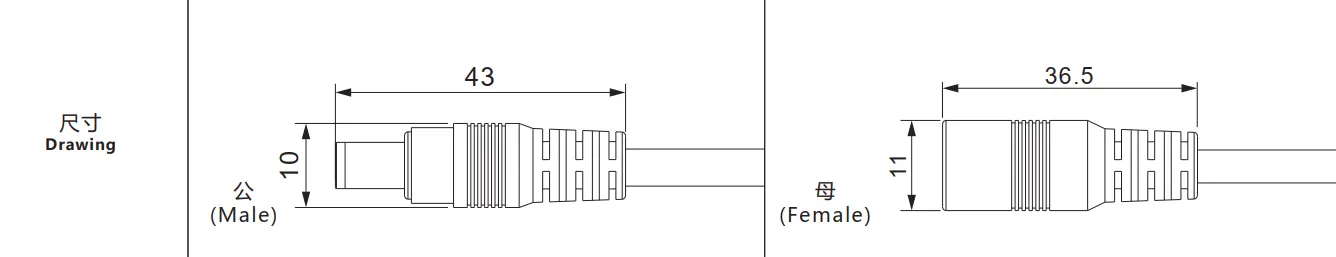

M11 DC connector diameter:

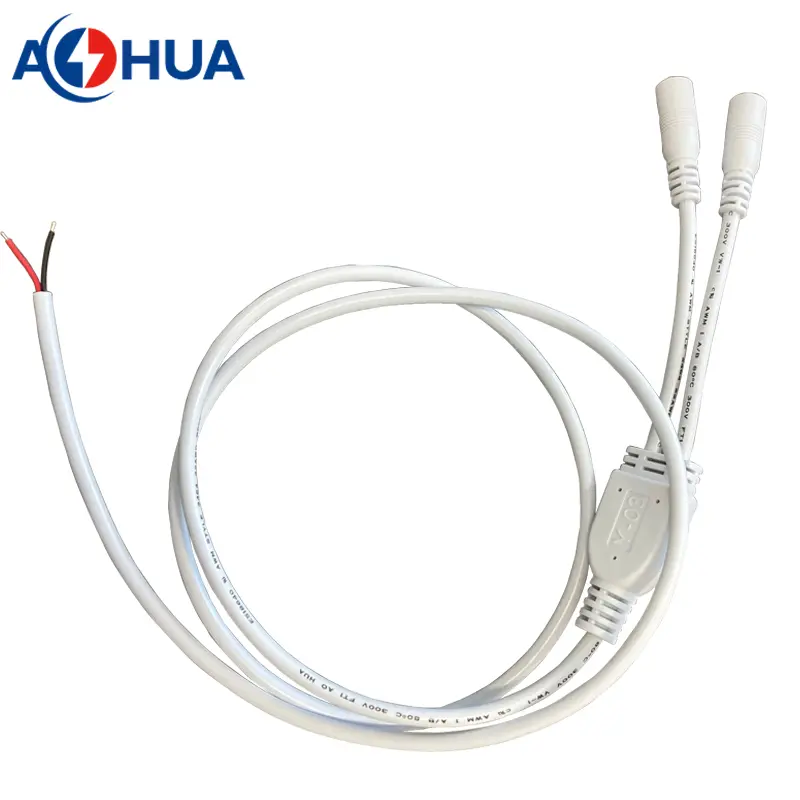

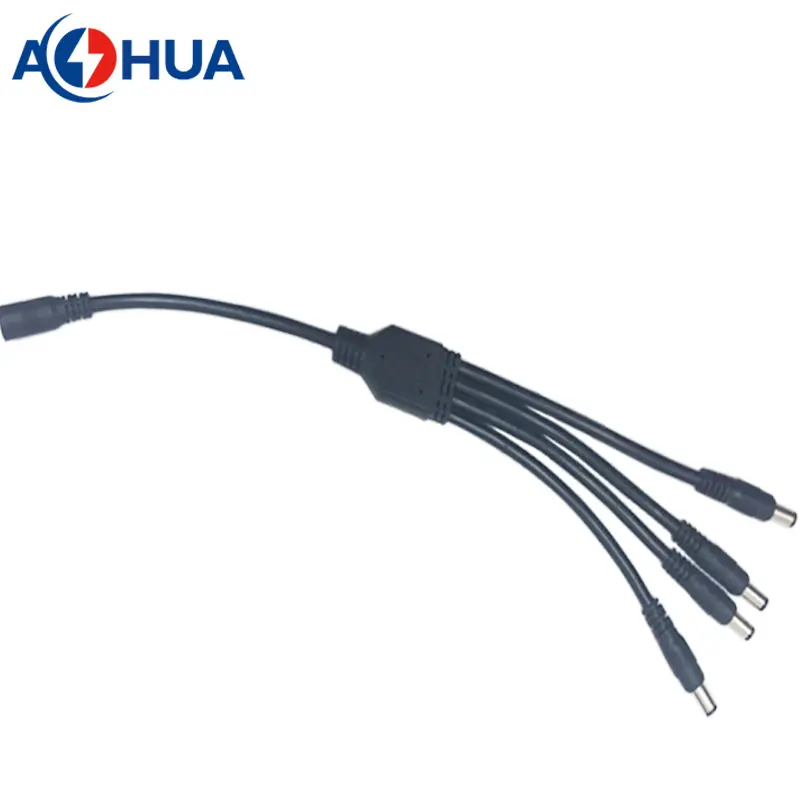

The similar solutions：
