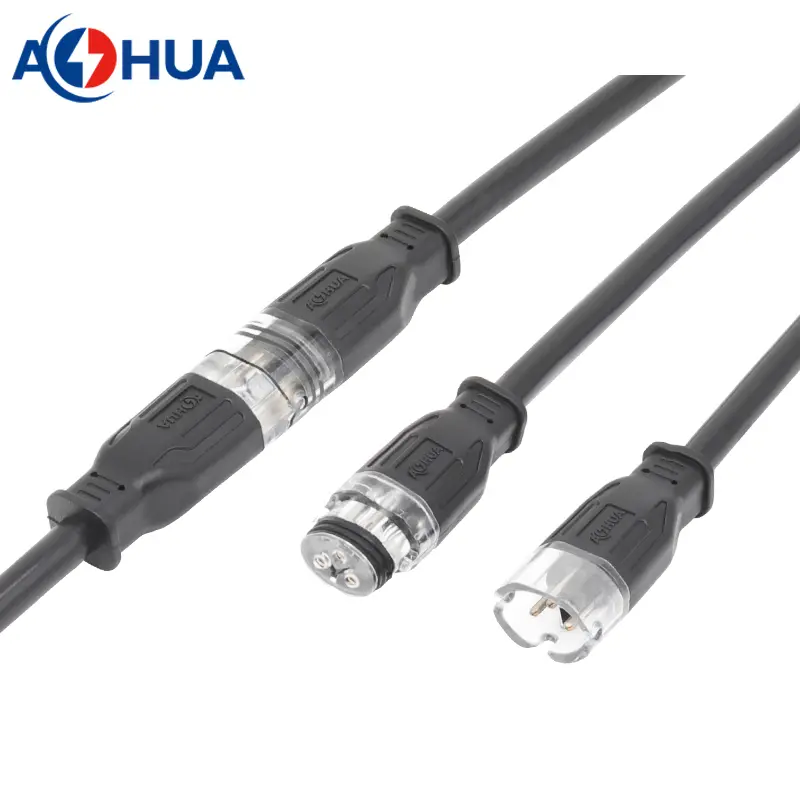

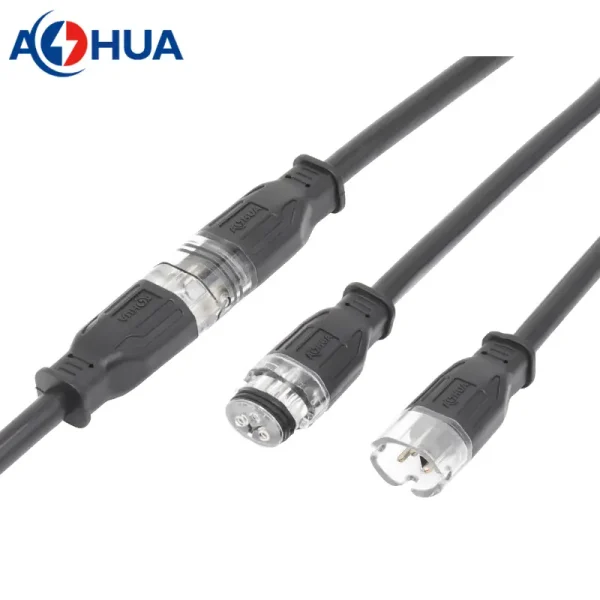

AHUA factory Q12 3 pin quick connect male female waterproof connector for plant grow light
AHUA factory Q12 3 pin quick connect male female waterproof connector for plant grow light
P/N: AH-Q12-1003FMN01211/AH-Q12-1003MFN01211
Material: PVC
Contacts: 3pin
Cable: PVC or rubber
Cable length: cuszomized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
| PINs | Part Number | Wire Gague | Voltage | Current |
| 2 |
AH-Q12-1002FMN01211 AH-Q12-1002MFN01211 |
≤1.0mm² | 415V | 10A |
| 3 |
AH-Q12-1003FMN01211 AH-Q12-1003MFN01211 |
≤1.0mm² | 415V | 10A |
| Cable OD | 6.0mm-7.0mm |
| Mechanical Life | 1500 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
