AHUA Multiple Pins 2+3pin Power Signal Integrated Extension Cable Male Female Waterproof Wire Connector For Equipment
Let us go to and know AOHUA, here we will talk about cable solution of 2+3pin power signal integrated waterproof wire connectors.

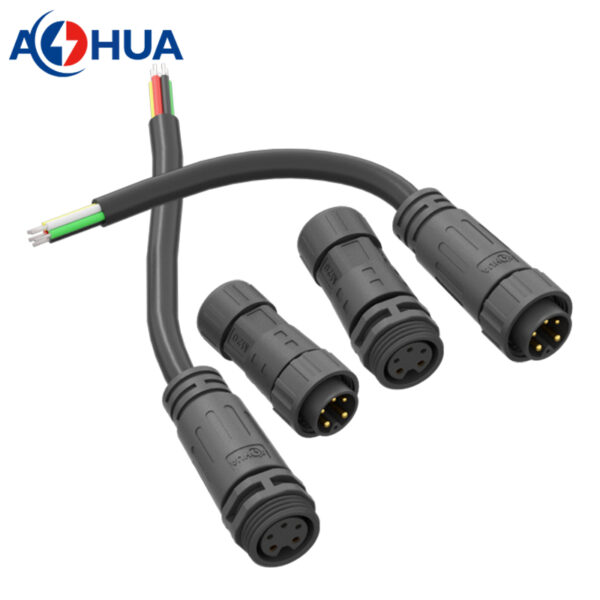

- This is M20 waterproof wire connectors in 2+3pin, which is molded with cable directly.
Specification
- plastic of connector: nylon/PVC
- conductor of connector: gold plated copper
- cable material: PVC, rubber, TPU, PUR, or specified
- cable length: should be customized as required
- customization: connector with open wire end, extension cable, cable harness solution, etc.
- Contacts: 2+3pin
- Voltage Rated: 250V+110V
- Current Rated: 15A+5A
- Wire Gauge: multi wires such as: 2*1.5mm²+3*0.75mm², 2*1.0mm²+3*0.75mm², 2*1.5mm²+3*0.5mm², 2*1.5mm²+3*0.3mm², 2*1.5mm²+3*0.2mm², 2*1.0mm²+3*0.75mm², 2*1.0mm²+3*0.5mm², 2*1.0mm²+3*0.3mm², 2*1.0mm²+3*0.2mm², or specified customization.
- Cable OD for molding: 5-12mm
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 3000 mating cycles
- Waterproof Grade: IP67/IP68
- Certificate: CE & ROHS

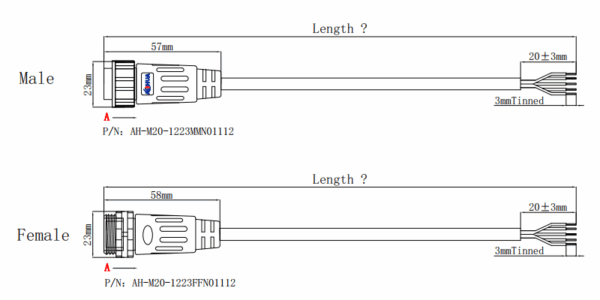

How to order & customize cable solution of 2+3pin waterproof connector?
It would be great thanks if you can provide a sketch with annotations about what you want to make, which is easy for understand what your idea. Then we can quickly create the CAD drawing and 3D files for you to confirm. What we want to learn from your idea about:
- working ampere, such as 10A+4A;
- wire gauge, such as 2*1.5mm²+3*0.5mm²；
- cable length, such as 500mm each side or extension length 1000mm;
- wire end handle: length of stripping and tinned;

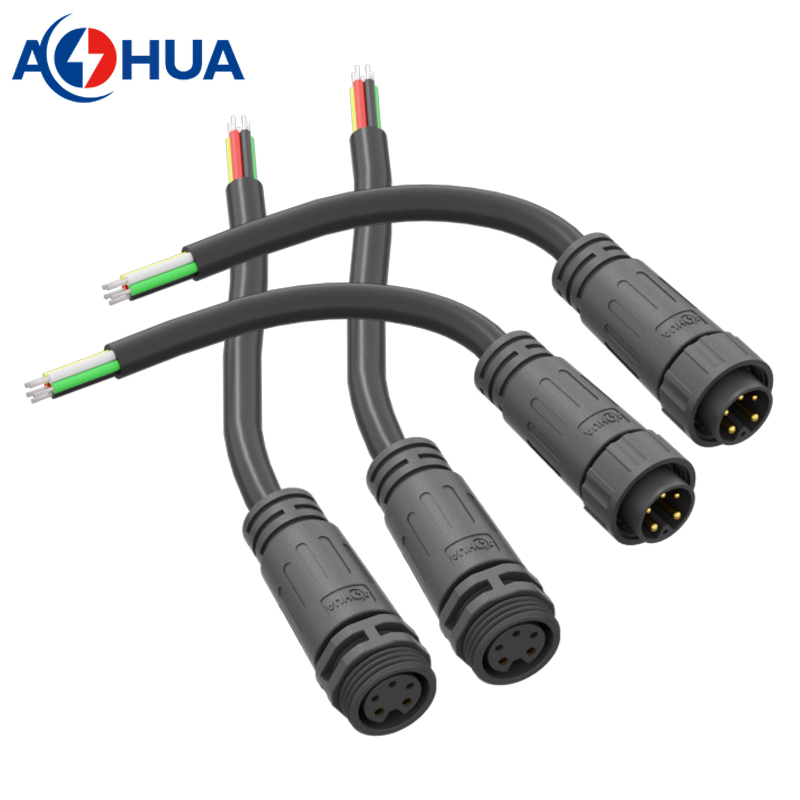

Compatible between assembly and molding types 2+3pin waterproof connectors
Here it mean that the assembly type connector is compatible with molding type connector, you can choose one of them as you need.

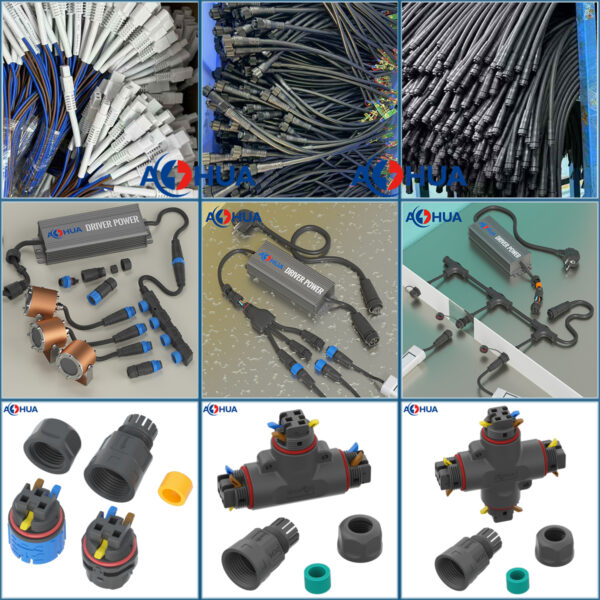

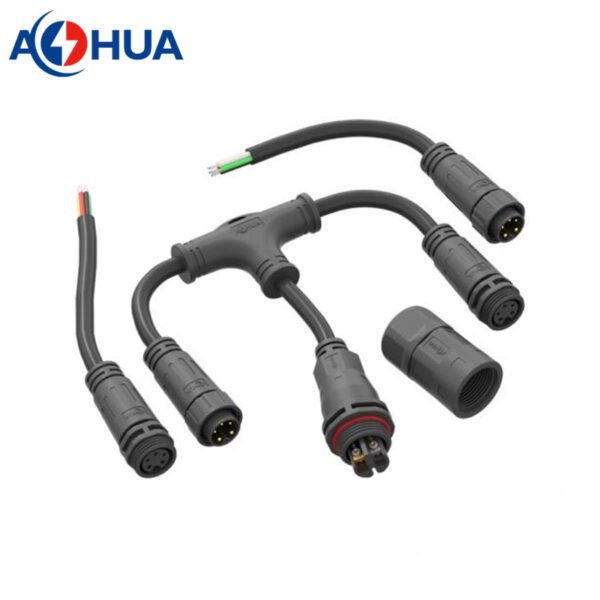

Cable harness solution with 2+3pin waterproof connector
With high development over 18 years, we have sufficient experience and capabilities to design and produce the product solutions as you desire. Please kindly let me know your idea, then our engineer will design and create the drawing for you confirm, after sample testing, we can more forward with mass production.
