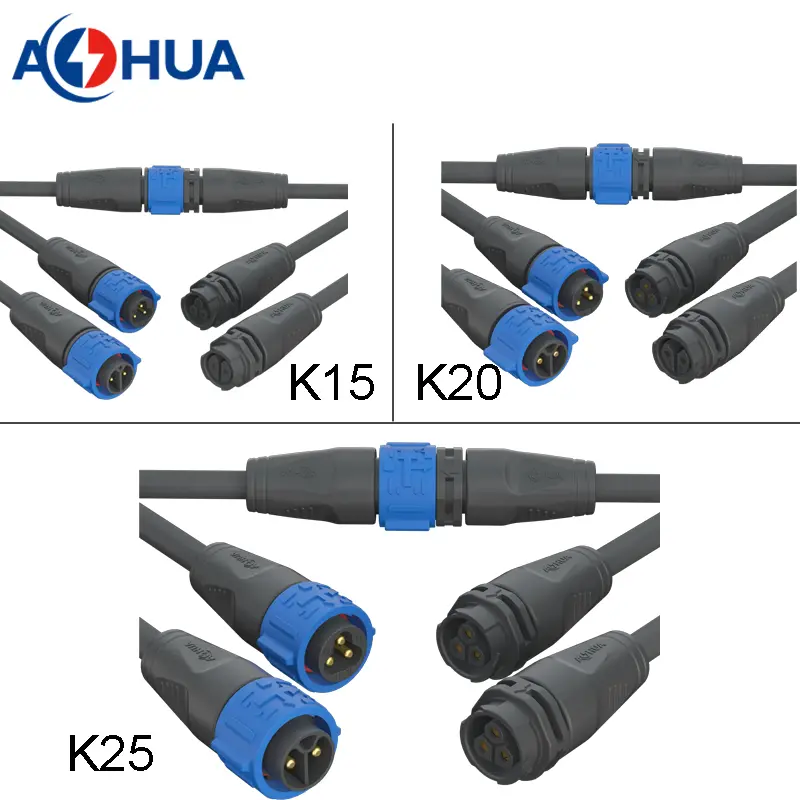

AHUA new energy application power cable male female quick locking IP67 IP68 waterproof 3 pin wire connectors

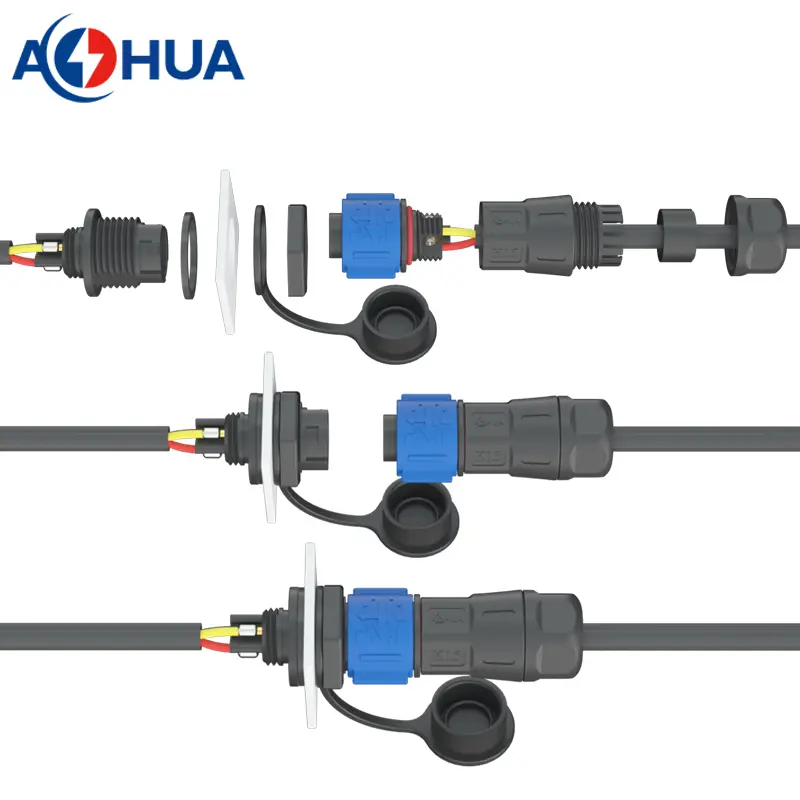

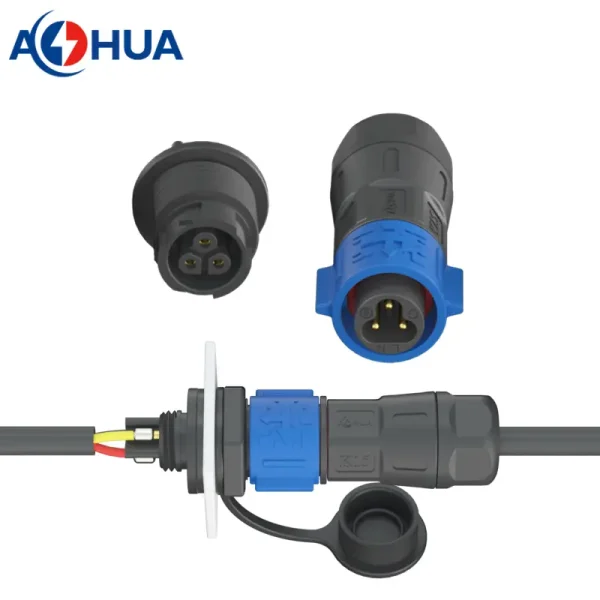

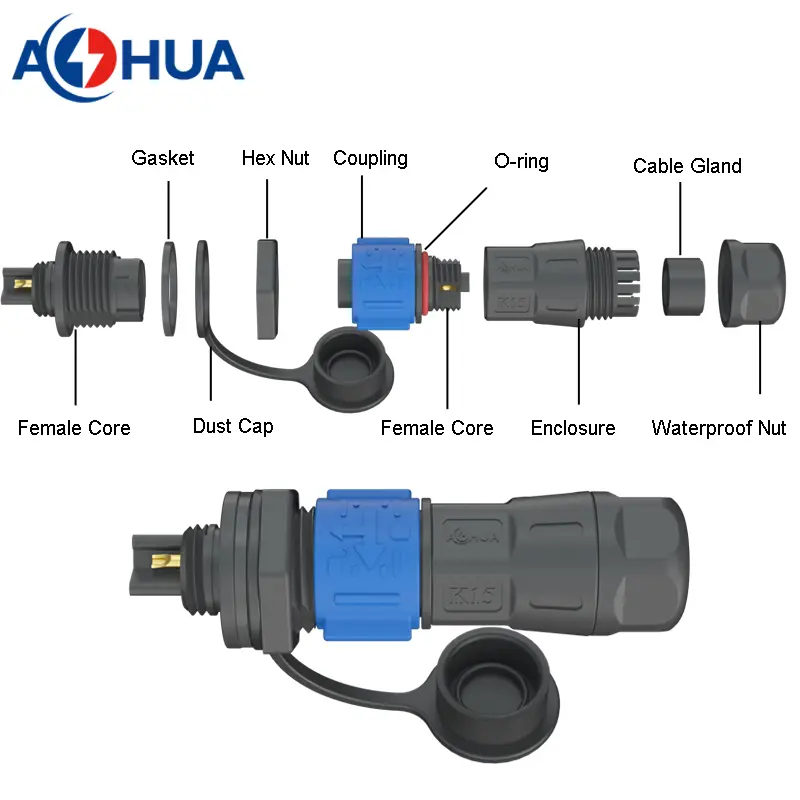

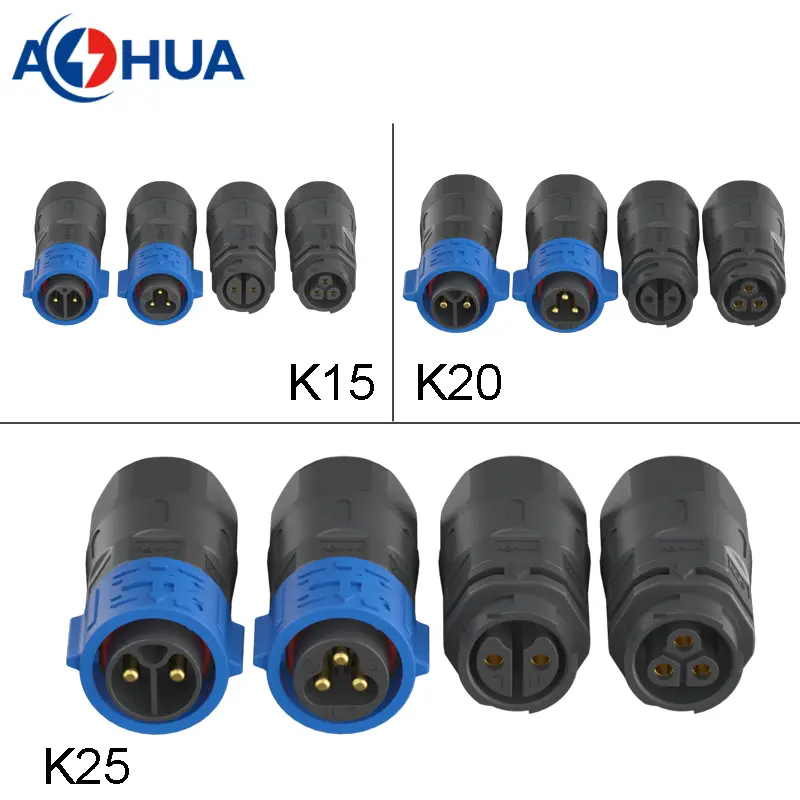

This 3 pin wire connector is 3 terminals including ground. The male is inline connector and female is panel mount type connector. This is a assembly connector, which is without cable. The components including waterproof nut, enclosure, coupling nut, O-ring, hex nut, gasket, male/female connector core.

The connector is total length 75mm and wide 25mm, the recommended hole size is 17.4*16.2mm.

Material&datasheet:

What is the quick locking wire connector? The quick locking type connector is no need to tighten up the screw nut, only need to push the coupling nut and when you hear a click, the male connector have mating with female connector correctly.

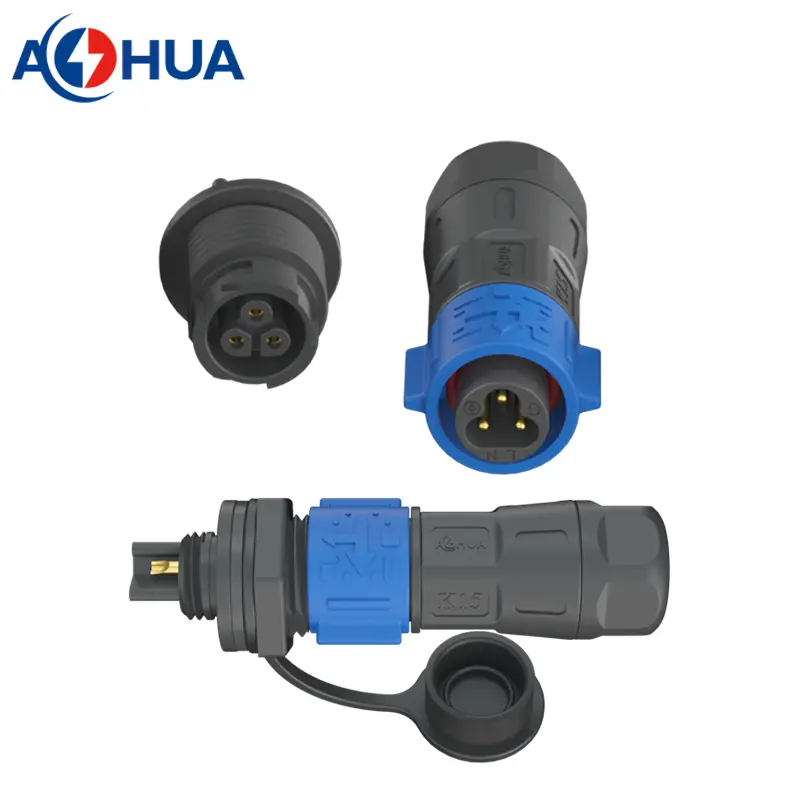

In this connector, the male side is inline connector with screw terminals, and the female side is panel type connector with solder terminals. So when you assembly the cable, please get your tools ready.

• About panel mount connector. In general, the male connector is power input and female connector is power output. Before you inquiry, please confirm that male panel or female panel connector you need and front panel mount or rear panel mount you need.

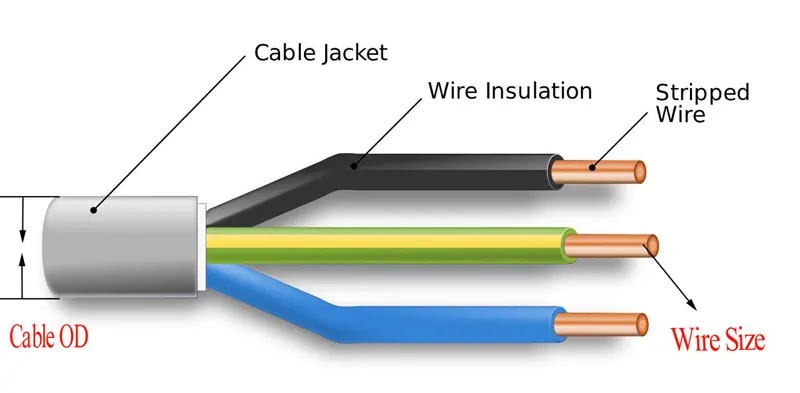

• In order to choos a right power wire connector, you need to make the power cable details clear, includes: voltage/current rating, wire gauge and cable jacket OD. Such as 6A, 220V, 3*1.0mm², cable OD 8mm. This datas are within our connector datasheet, that is ok in general.

If you still confuse, you can contact our team safes, they will help.

Suitable cable gland will achieve better waterproof effect. The cable will be go through the cable gland. And when the nuts are tightened, the cable gland is well attached to the cable under the action of external force, so as to achieve a good waterproof effect. Like that the cable OD near to the cable gland inside diameter is better for waterproof effect.

In order to choose the suitable cable gland, you can measure your cable jacket outer diameter. And then you can follow the below data to choose the right cable gland.
