AHUA plant grow lighting power cable customize waterproof male female multiple branches connector
AHUA plant grow lighting power cable customize waterproof male female multiple branches connector
TP02 T Type Waterproof Connector
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

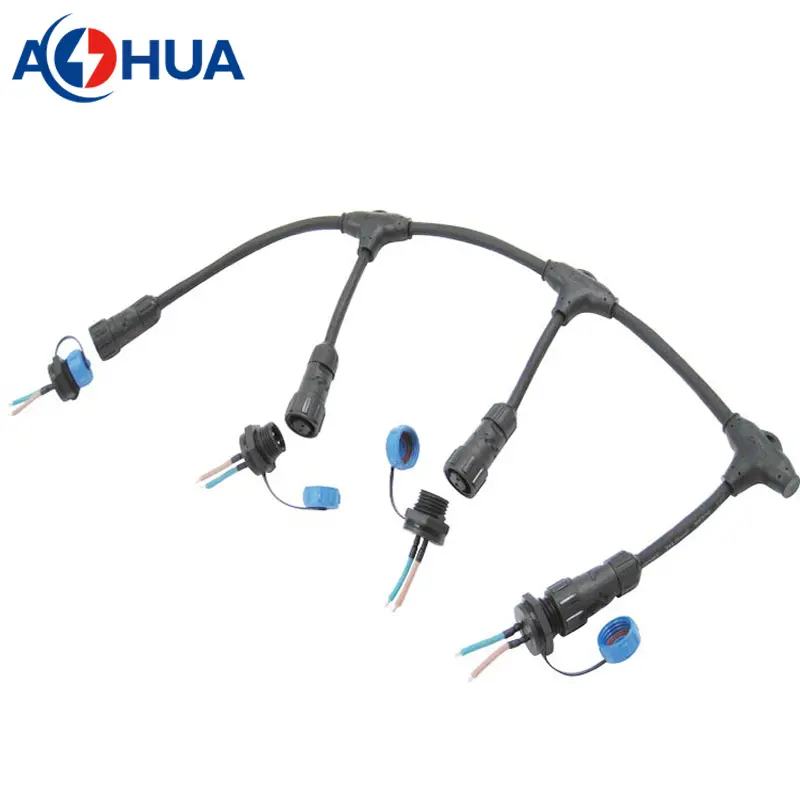

Power cable customize waterproof male female multiple branches connector

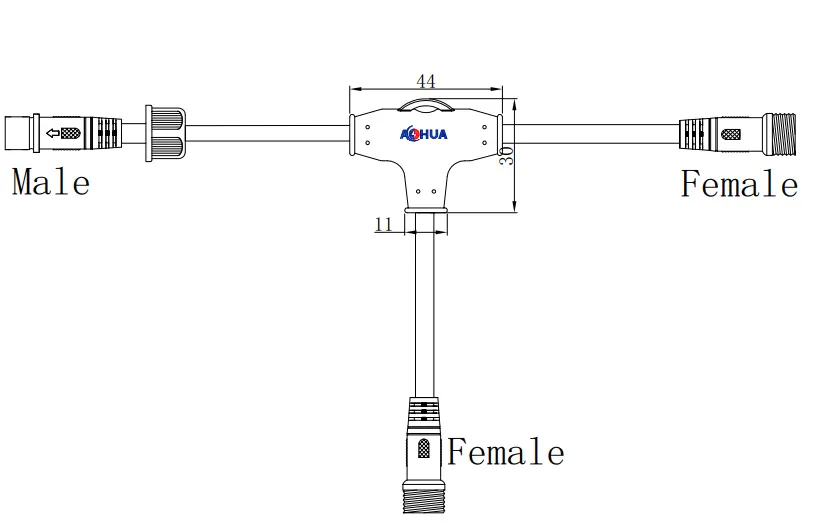

Customized multiple branches connector is T splitter molded male female connector. The male connector is input and female connector is output. It can customize multiple branches as requirement.

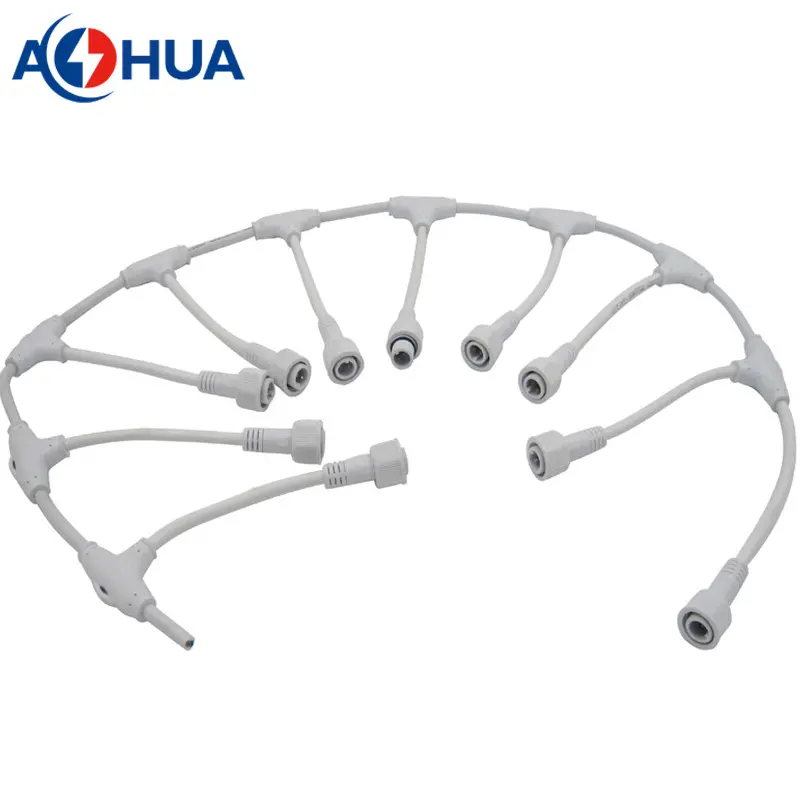

The TP02 T splitter can be design in multiple branches with different color, includes black, white, yellow, green and so on.
About how to choose the multiple branches connector, it is according to the wire size, current rating, and cable OD. So please offer the wire gauge, current, simple drawing before quotation.
| 2pin | AH-TP02-020X |
| 3pin | AH-TP02-030X |
| 4pin | AH-TP02-040X |
| Main Cable Gauge | ≤1.0mm² |
| Branch Cable Gauge | ≤0.75mm² |
| Main Cable OD | Max 6.8mm |
| Branch Cable OD | Max 6.0mm |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
