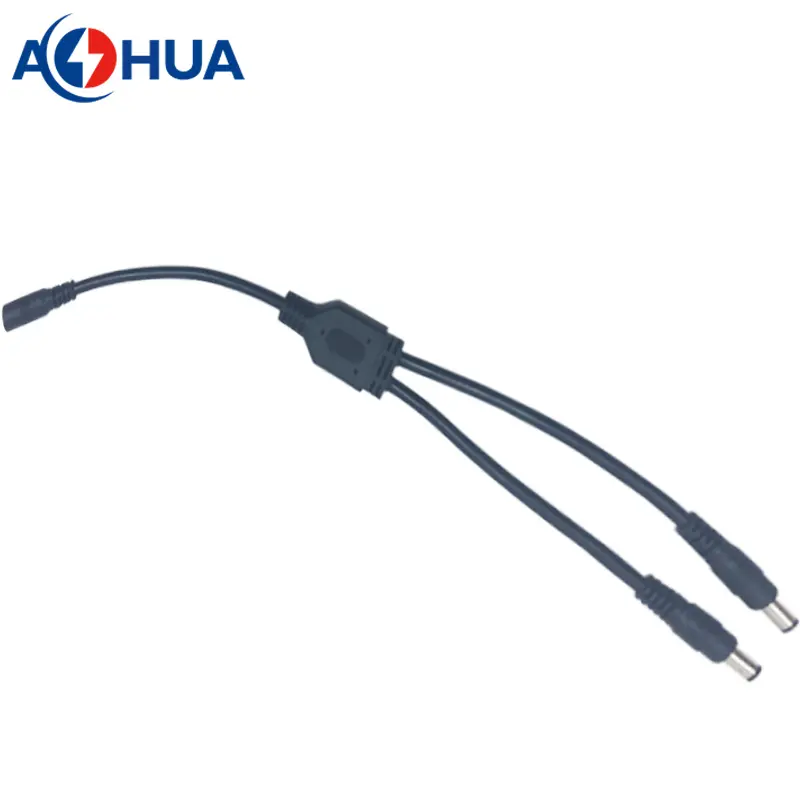

AHUA YP-03 quick connect male female 20 22 24AWG wire 1 to 2 DC cable connector
AHUA YP-03 quick connect male female 20 22 24AWG wire 1 to 2 DC cable connector
AH-YP03-0202-M11
Material: PVC
Color: Black /white
Contacts: 2pin
Cable legnth: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
Y type DC cable splitter

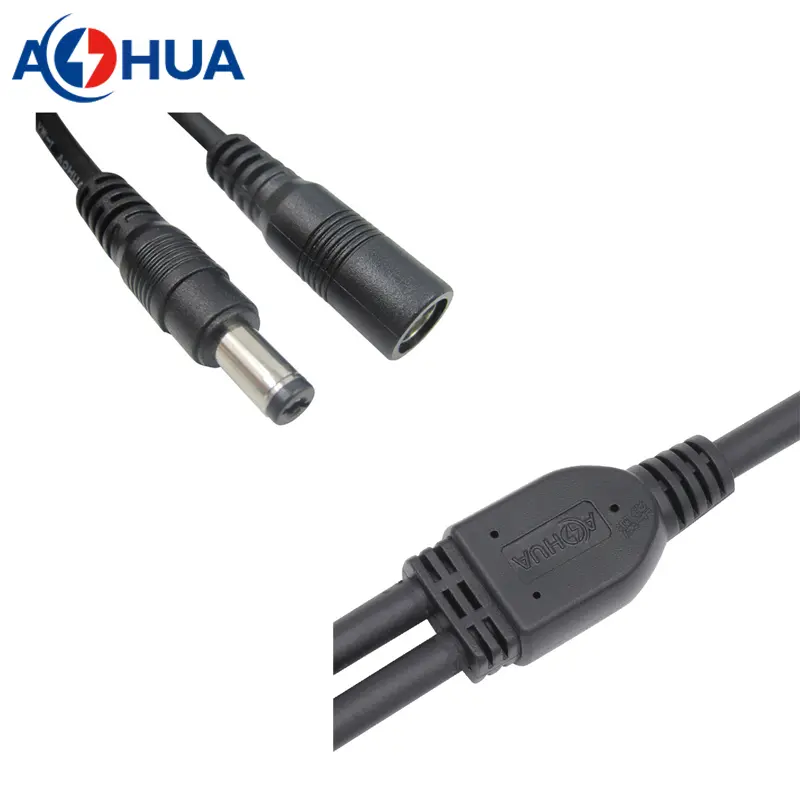

- DC connector: M11 quick-connect connector, DC metal 5.5*2.1mm /5.5*2.5mm
- Y splitter: YP-03. Suitable wire: 20AWG /22AWG/24AWG
Parameter:
| P/N | AH-YP03-0202 |
| Main Cable Gauge | ≤0.5mm² |
| Branch Cable Gauge | ≤0.5mm² |
| Main Cable OD | Max 5.0mm |
| Branch Cable OD | Max 5.0mm |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |

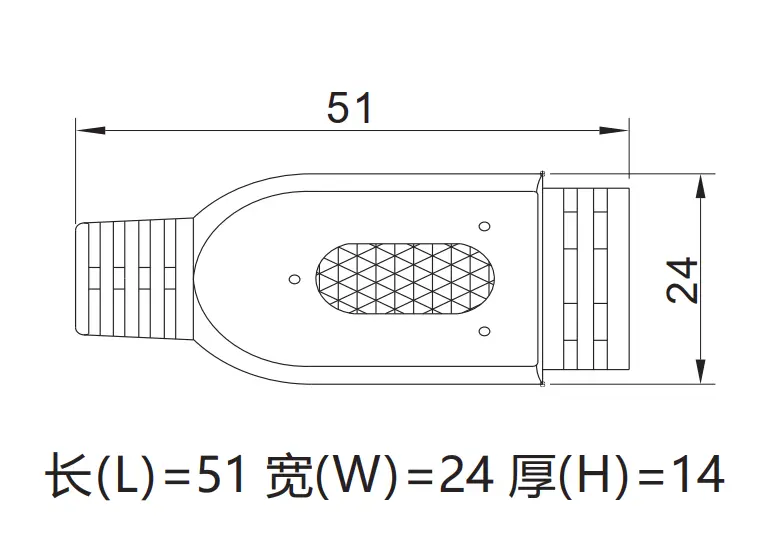

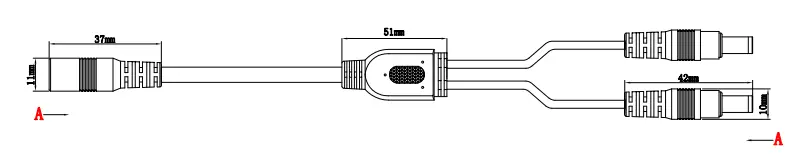

Y Connector DRAWING:
The details about cable connector before quotation:
- M11 dc connector: if choose this dc connector, the cable wire gauge is only 2*20AWG or 2*22AWg or 2*24AWG for choices.
- The cable length is customized according to the requirement, the shortest cable is 100mm including connector.
- Confirm the dc metal size of dc connector so as to confirm to match with the dc connector already have. Or even directly order the matched connector cable on our side.
- The splitter connection is parallel or series. Please confirm before quotation.
- It will be better if can offer a simple drawing.

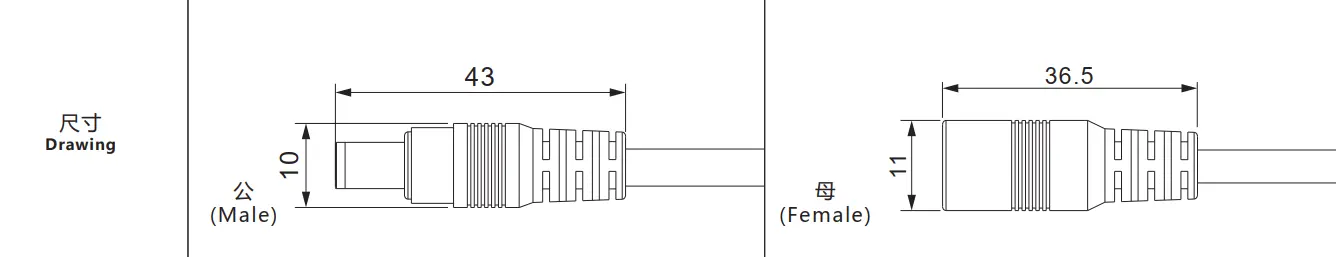

The diameter of connector and splitter:
