AHUA YP03 2pin 1 to 2 wire splitter M12 waterproof dc 5521 5525 male female wire connectors
AHUA YP03 2pin 1 to 2 wire splitter M12 waterproof dc 5521 5525 male female wire connectors
YP03 splitter
Contacts: 2pin
Material: PVC
Type: 1 to 2 splitter
Connection: Paralllel / Series
Cable length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

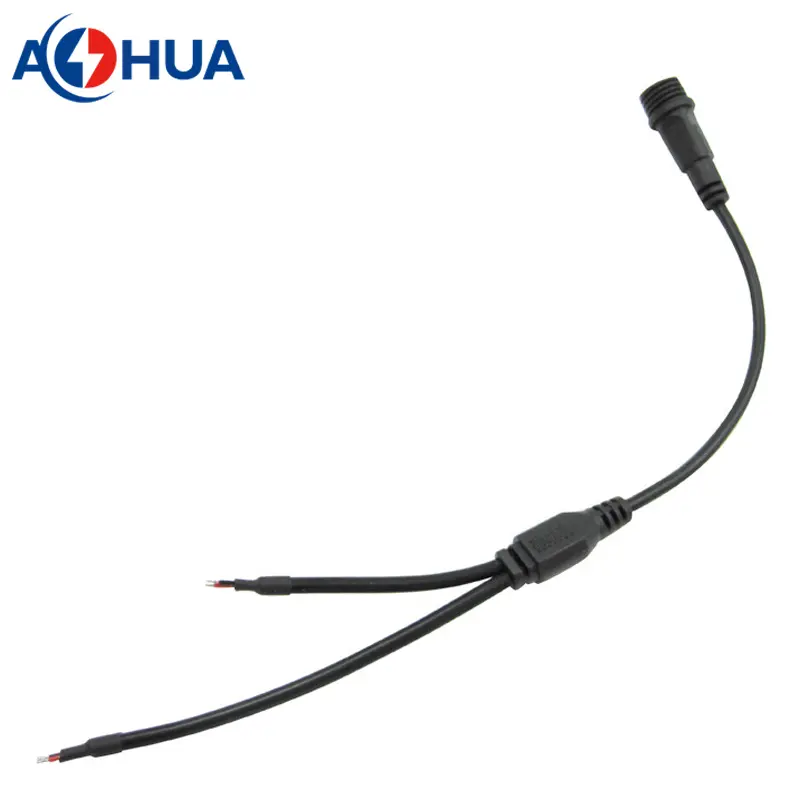

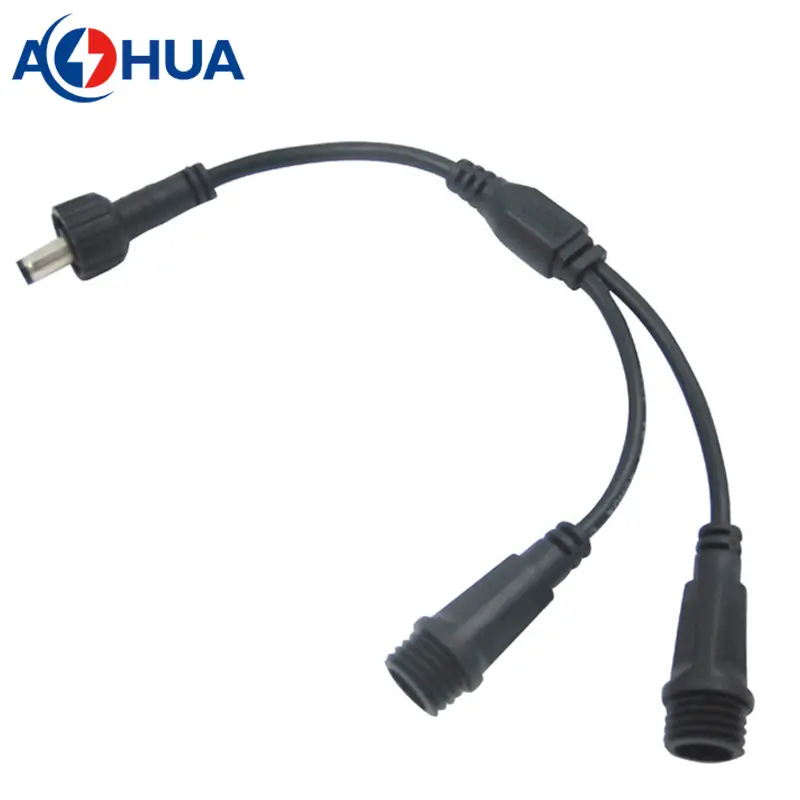

AHUA YP03 2pin 1 to 2 wire splitter M12 waterproof dc 5521 5525 male female wire connectors
male female wire connectors, which is customized Y type 1 to 2 wire cable connectors with correct wire gauge and cable. Connectors will be molded on the cable once needed.
There are 2pin, 3pin, and 4pin for this splitters. And its can customized for 2 branches, 3 branches, and 4 branches. The splitter size is length 51mm*wide24mm*high14mm, so main cable wire gauge is no larger than 1.5mm² (cable OD smaller than 8.3mm), the branch wire gauge is no larger than 1.0mm²(cable OD smaller than 6.8mm).
There are many waterproof connectors to molded for the splitter cables, such as M10 M12, M14 and M16 cable connectors.
| 2pin | AH-YP03-020X |
| 3pin | AH-YP03-030X |
| 4pin | AH-YP03-040X |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
