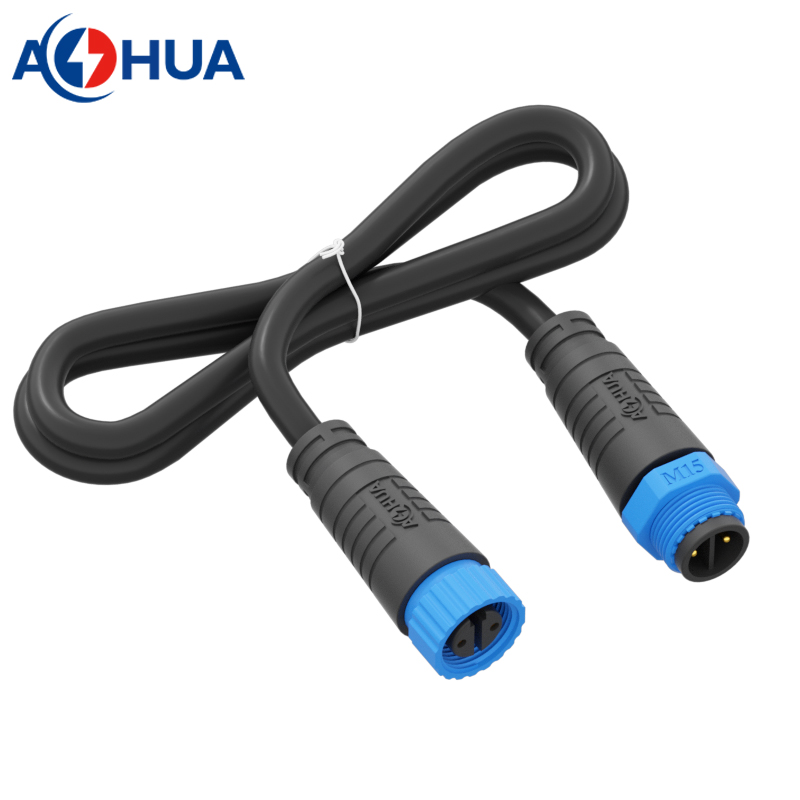

AOHUA 2pin Waterproof Connector For Horticulture LED Plant Grow Lighting-M15 Extension Cable – 10A, 0.75/1.0/ 1.5 mm or 14AWG/16AWG Wire
AOHUA 2pin Waterproof Connector For Horticulture LED Plant Grow Lighting-M15 Extension Cable – 10A, 0.75/1.0/ 1.5 mm or 14AWG/16AWG Wire
- Model: M15 (over molding)
- Contacts: 2pin
- Male: AH-M15-0802FMN01112
- Female: AH-M15-0802MFN01112
- Certificate: UL/CE/RoHS
- Specify the details of connector type, working ampere, wire gauge and cable length
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AOHUA 2pin Waterproof Connector For Horticulture LED Plant Grow Lighting-M15 Extension Cable – 10A, 0.75/1.0/ 1.5 mm or 14AWG/16AWG Wire

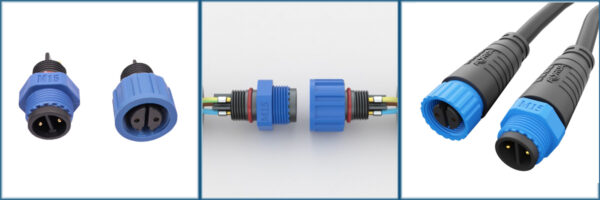

Here is the M15 connector core solder with cable and then do injection. This connector cable is coming with cable directly.
Highlights & Specification
- Model: M15 (over molding)
- Contacts: 2pin
- Male: AH-M15-0802FMN01112
- Female: AH-M15-0802MFN01112
- Plastic Material: PA66
- Conductor: gold plated brass
- Cable Material: PVC or Rubber or Specified
- Rated Voltage: 300V
- Rated Current: 10A
- Wire Gauge: 0.5/0.75/1.0/1.5mm² or 14AWG/16AWG/18AWG/20AWG
- Cable OD: 5-8.8mm
- Cable Length: 100mm at least, customized as required.
Drawing of M15 extension cable
Certification
Due to the part numbers of general version and UL version are the same, please specify which certificate you need to our team.
- General version: passed CE & RoHS certificate
- UL version: passed UL & CE & RoHS certificate
How to order
This is customized cable solution, please specify the detail requirements includes:
- send us with a sketch or simple drawing of you want to customize;
- specify the connector type, such as connector with open wire end or extension cable;
- confirm the working ampere, such as 5A or 8A;
- specify the wire gauge and cable length, such as 1.5mm² or 16AWG, 500mm each side;
- also specify the details of wire end customized, such as length of stripped and tinned;
Application
