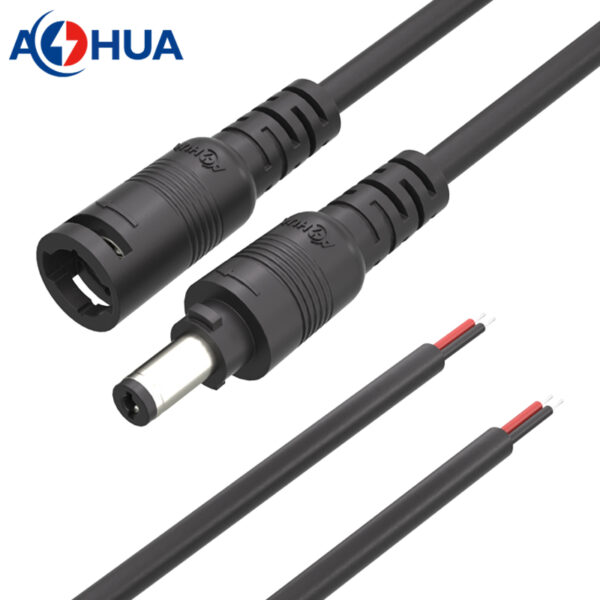

AOHUA 5A 24-18AWG 60V Male Female Extension Cable Lead DC Connector Quick Locking 2.5 DC Jack
- Here talk about M13 quick locking type dc connector.
- This connector is molded with cable directly.
Specification
- Model: M13
- Voltage: 60V
- Current: 5A
- Wire Size: 18AWG, 20AWG, 22AWG, 24AWG.
- Cable OD: 3-5.5mm
- Mechanical Life: 500 mating cycles
- DC metal diameter: 5.5*2.1 or 5.5*2.5

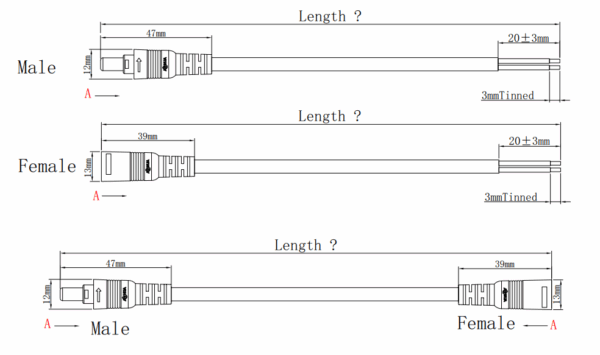

How to order?
- specify the connector type you need;
- make it clear: working ampere, wire size, cable length;
- length of stripping and tinned;
- DC metal diameter;

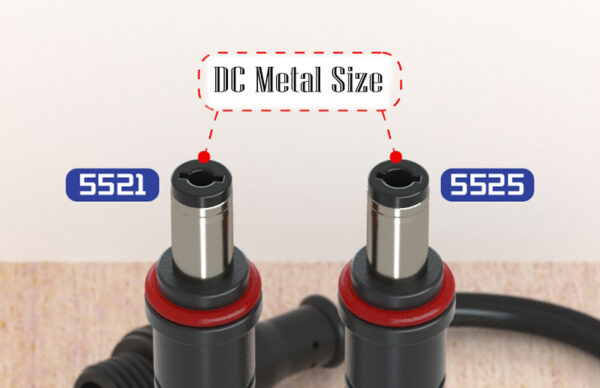

How to learn about DC metal diameter?
- Diameter of DC metal is the outer diameter * inner diameter. Different diameter is not compatible, please make sure that it is the same DC metal diameter. Especially the male and female DC connectr was from different factory, it have to test the sample before mass order.
