AOHUA 6pin Signal Wiring Assembly Self Locking Male Panel To female Waterproof Connector For Outdoor
AOHUA 6pin Signal Wiring Assembly Self Locking Male Panel To female Waterproof Connector For Outdoor
- customize signal control system waterproof connector solution
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AOHUA 6pin Signal Wiring Assembly Self Locking Male Panel To female Waterproof Connector For Outdoor

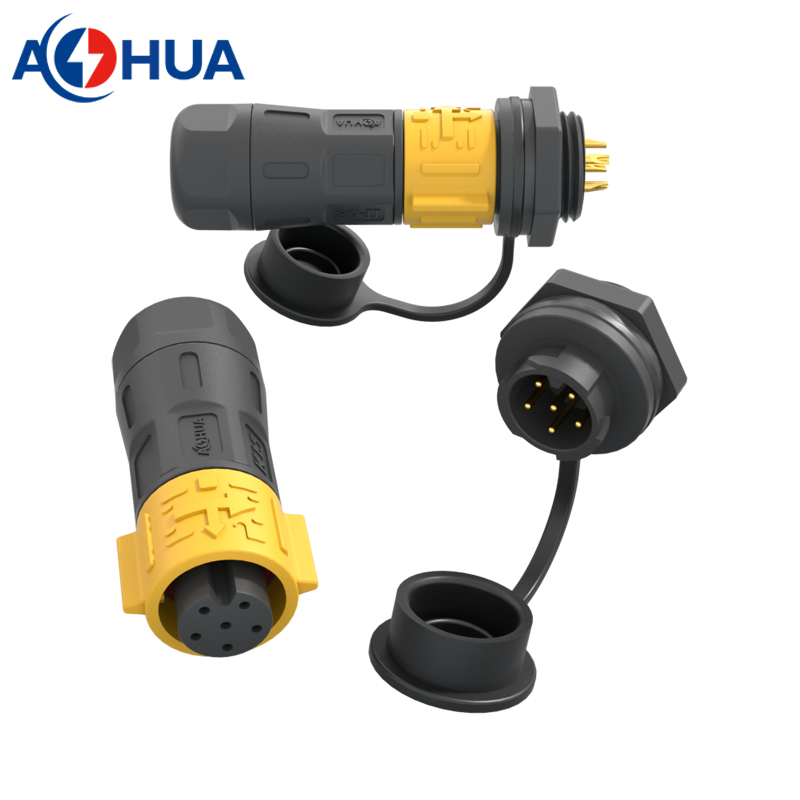

- Welcome to the AOHUA shopw. Here is the panel mount type 6pin waterproof connector solution for signal control system. The male is rear panel mount type and female is inline assembly type.
- What is assembly type connector? The assembly connector is coming without cable, you need to prepare the cable by yourself, and do the soldering by yourself.
- This connector is used for panel mount of junction box, but not directly plug to PCB, which is soldering with wire.
- Contacts: 6pin
- Voltage: 110V
- Current: 5A
- Wire Size: ≤20AWG
- Cable OD: 3-10mm
Male: AH-K15-0506FMR02212
Female: AH-K15-0506MFZ02212
There is dust cap for choosing from.
How to order?
- It would be great thanks if you can provide a simple drawing about what you need, which is easy for us to understand what you need.
- What we want to know from you includes: working ampere, wire size, cable length, and connector type.
About the connector type, there are male panel and female panel, front panel mount or rear panel mount, screw type or solder type.
