AOHUA CE ROHS Approved Power Wire 15A 300V 2pin Male Female Panel Mount IP68 Waterproof Plug Connector

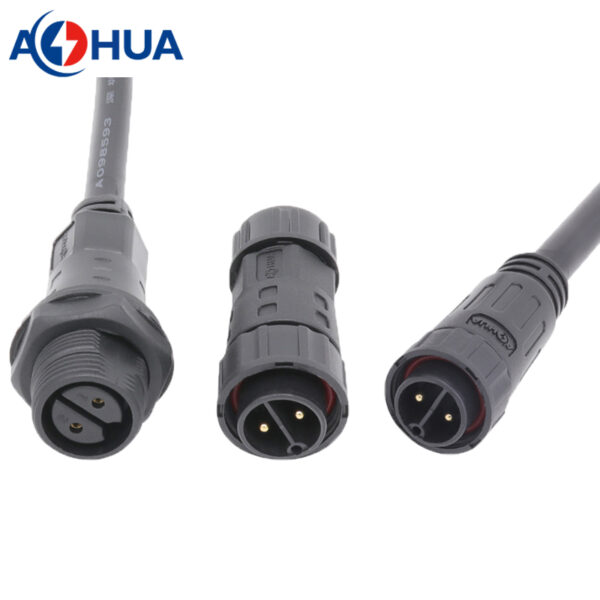

Here introduce the panel mount type waterproof connector for power plug. The connector mainly connect the cable between power and equipment or lights.

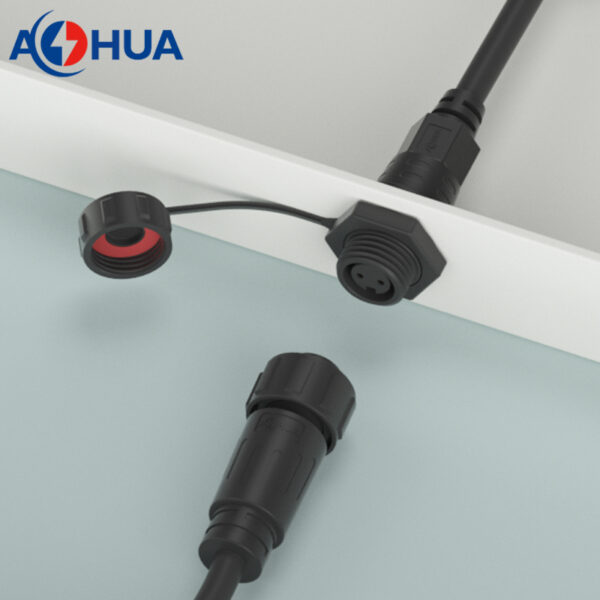

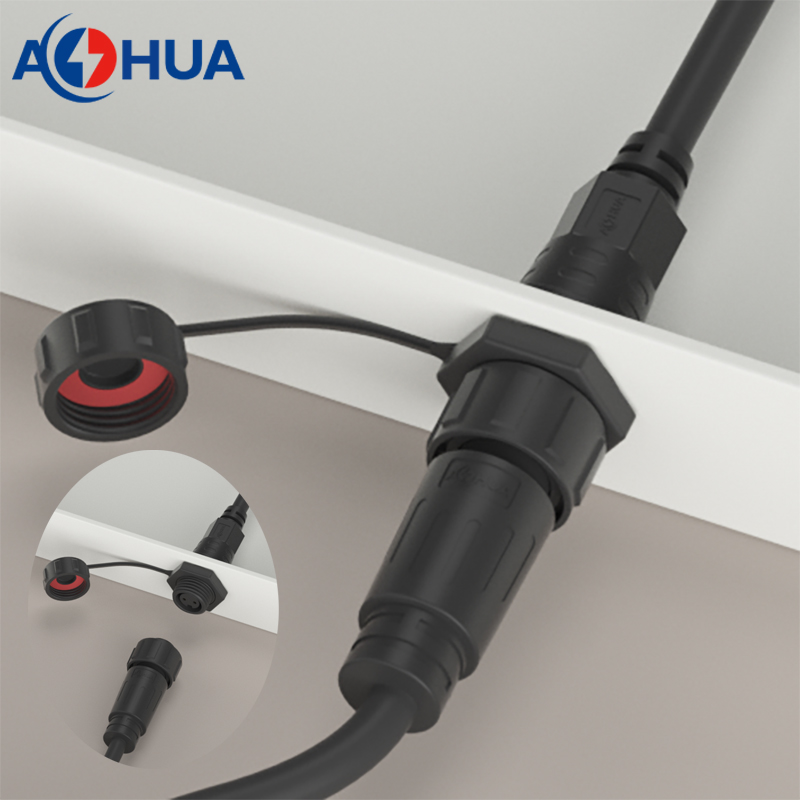

1. The female connector is panel type and molding with cable. This panel plug molding with cable, the hex nut is outside the box only.
2. The male connector is inline type and also molding with cable.
3. There is dust cap for choosing from.

Specification of IP68 waterproof plug connector

1. Model: M20
2. Contacts: 2pin
3. Voltage Rated: 300V
4. Current Rated: 15A
5. Wire Size: 0.5-1.5mm²
6. Cable OD: 5-10mm
7. Operating Temperature: -40℃~+105℃
8. Mechanical Life: 3000 mating cycle ratings
9. Waterproof Grade: IP67 IP68
10. Certificate: CE, ROHS
11. Plastic material of connector: PA66
12. Cable material: PVC, rubber, TPU or specified
13. Material of conductor: gold plated brass

How to order?

1. it would be great thanks if you can provide a simple drawing with marking the cable details you need. It will be easy for understand what you need.
2. we would like to know about: connector type, such as male or female panel type, mold with cable or without cable; working ampere such as 5A or 8A; wire size such as 2*1.0mm² or 2*1.5mm²； cable OD or cable length you need.
