AOHUA CE ROHS Certified Flame Resistant Nylon Inline Assembly Pre-Wire Male Female Waterproof 4 Pin Power Connector
AOHUA CE ROHS Certified Flame Resistant Nylon Inline Assembly Pre-Wire Male Female Waterproof 4 Pin Power Connector
- customized 4 pin power connector solution
- please send details include: working ampere, wire size, cable length or cable OD;
- it should be better for understanding what you need if you can create the sketch.
- Certificate: CE&ROHS
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AOHUA CE ROHS Certified Flame Resistant Nylon Inline Assembly Pre-Wire Male Female Waterproof 4 Pin Power Connector

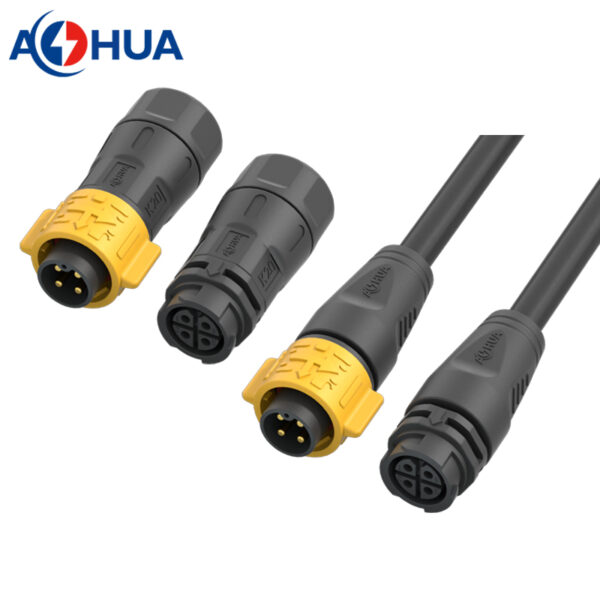

- Here is the self locking type inline male female connector in 4-pin. It can be assembly type or pre-wire type male female connector.
- Assembly type is compatible with the pre-wire type connectors, so you can choose one side is assembly and other side is pre-wire type.

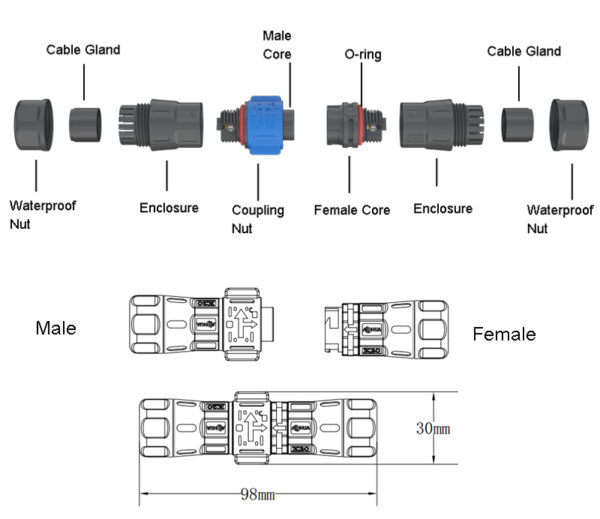

Assembly type connector
- K20 assembly type
- Contacts: 4pin
- Voltage Rated: 300V
- Current Rated: 20A
- Wire Gauge: ≤2.5mm²
- Cable OD: 6-12mm
- Operating Temperature: -40℃~+105℃
- Color: black/blue, or black/yellow
- Mechanical Life: 3000 mating cycles
Part Number
- Male: AH-K20-2004MMZ02212
- Female: AH-K20-2004FFZ02212

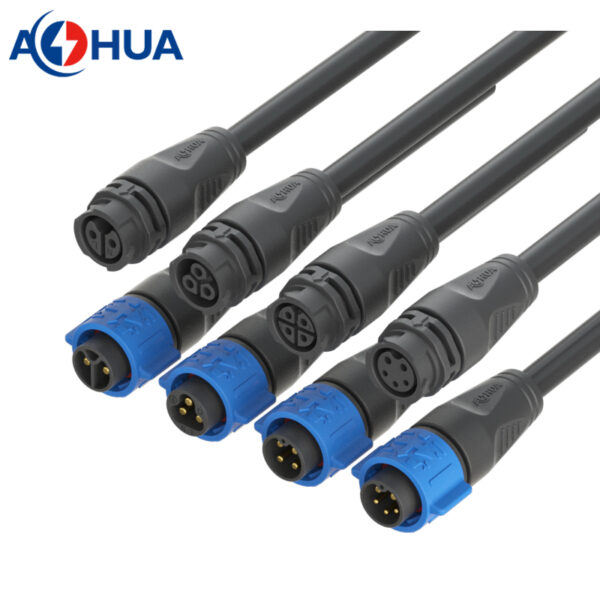

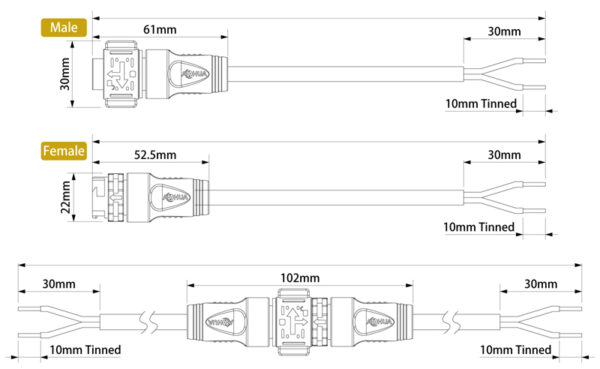

Pre-wire molding waterproof connector
- K20 over molding type
- Contacts: 4pin
- Voltage Rated: 300V
- Current Rated: 20A
- Wire Gauge: ≤2.5mm²
- Cable OD: 6-12mm
- Operating Temperature: -40℃~+105℃
- Color: black/blue, or black/yellow
- Mechanical Life: 3000 mating cycles
- Part Number
- Male: AH-K20-2004MMN02212
- Female: AH-K20-2004FFN02212
