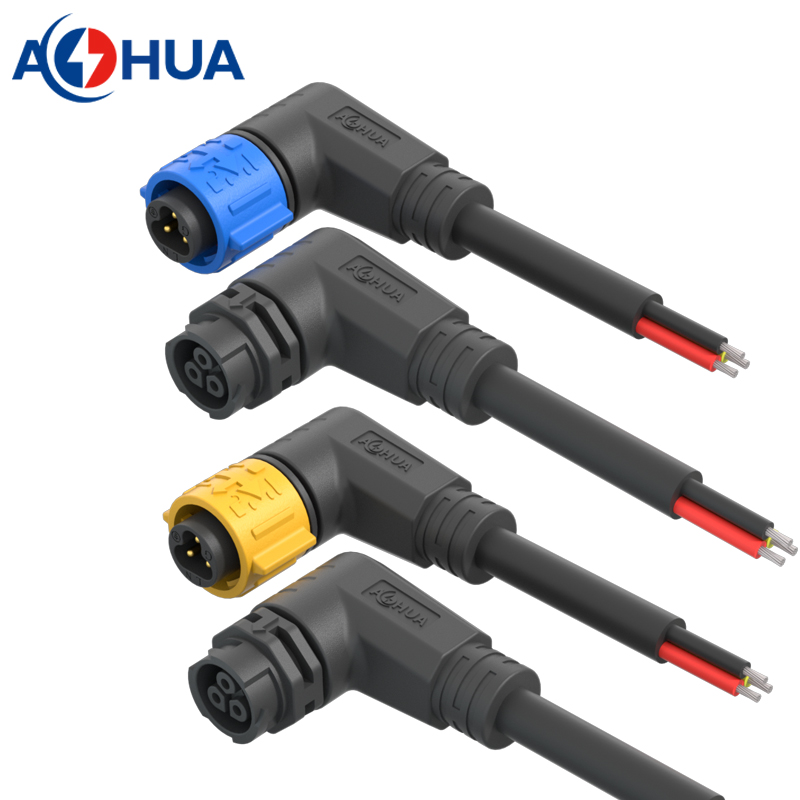

AOHUA Custom Solar Panel Waterproof Elbow Connector 3pin 10A 300V Rubber Extension Wire Power Cable Connector
AOHUA Custom Solar Panel Waterproof Elbow Connector 3pin 10A 300V Rubber Extension Wire Power Cable Connector
- customize solar panel waterproof elbow connector solution
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
AOHUA Custom Solar Panel Waterproof Elbow Connector 3pin 10A 300V Rubber Extension Wire Power Cable Connector
- custom solar panel waterproof elbow connector
- solar panel extension waterproof elbow connector
- 3pin 10A waterproof power connector

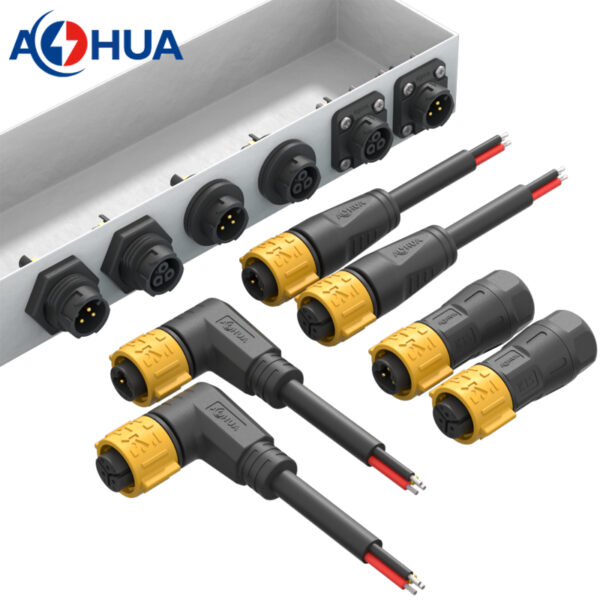

- Male and female all can be molded in elbow type.
- The cable should be choosing from PVC or rubber.
- The cable can be customized as you need.
Specification of waterproof elbow connector
- Model: K15
- Contacts: 3pin
- Voltage Rated: 300V
- Current Rated: 10A
- Wire Size: ≤1.0mm²
- Cable OD: 5-10mm
- Operating Temperature: -40℃~+105℃
- Mechanical Life: 1500 mating cycles
Material:
- plastic of connector: PA66
- conductor: gold plated brass
- cable: PVC or rubber or special
How to order:
- specify what type connector you need, such as male elbow or female elbow. Mating connector is inline or panel type or elbow type.
- make the details clear: working ampere, wire size, cable length, cable OD, cable material and so on.
- it would be great thanks if you can provide a simple drawing for reference that will be easy for understand what you need.
- we will get back to you with drawing and price within 24 hours.
