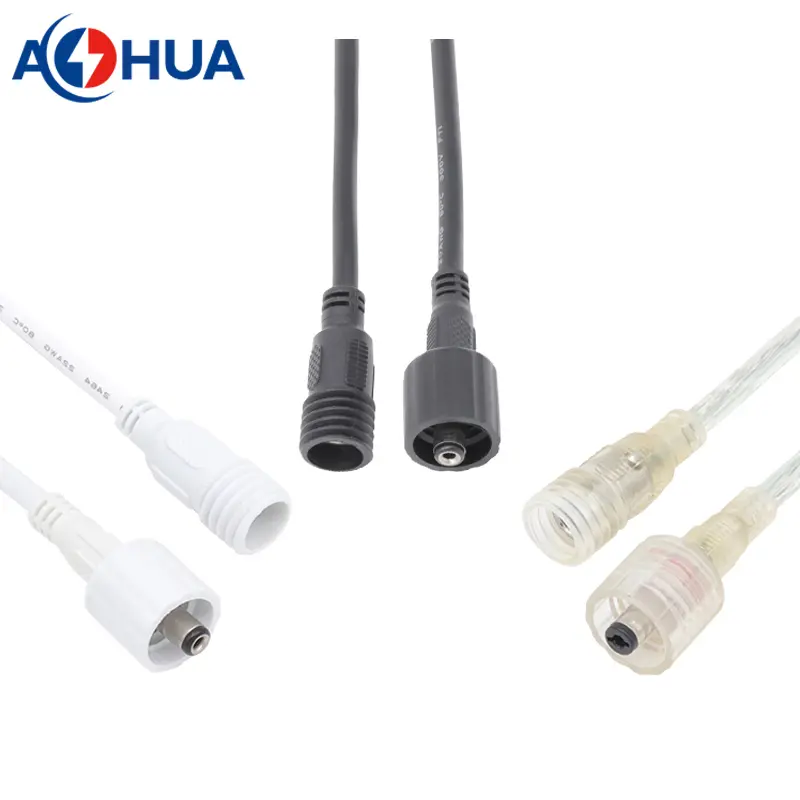

AOHUA led strip lights waterproof male female quick plug dc jack 2.1mm connectors
AOHUA led strip lights waterproof male female quick plug dc jack 2.1mm connectors
Male: AH-M13-0402MFD01111
Female: AH-M13-0402FMD01111
Contact: 2 PIN
Material: PVC
Cable: PVC
Wire Gauge: 20AWG, 22AWG, 24AWG
Cable Length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
AOHUA led strip lights waterproof male female quick plug dc jack 2.1mm connectors

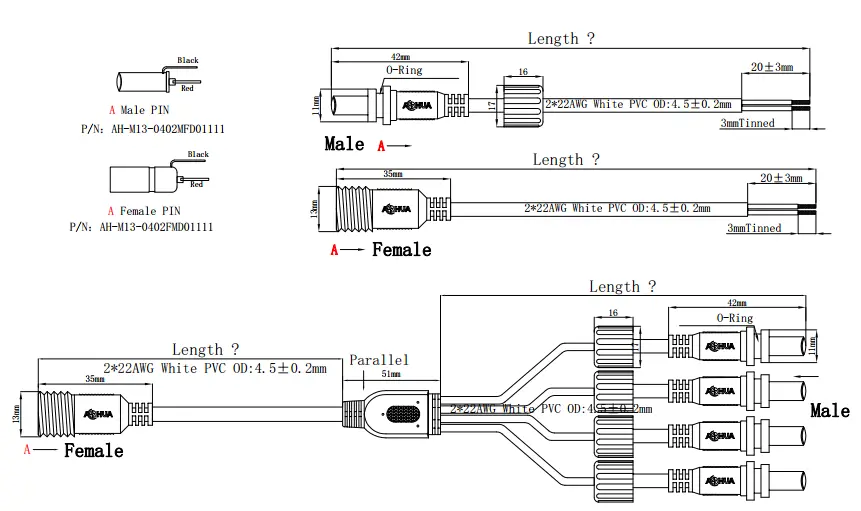

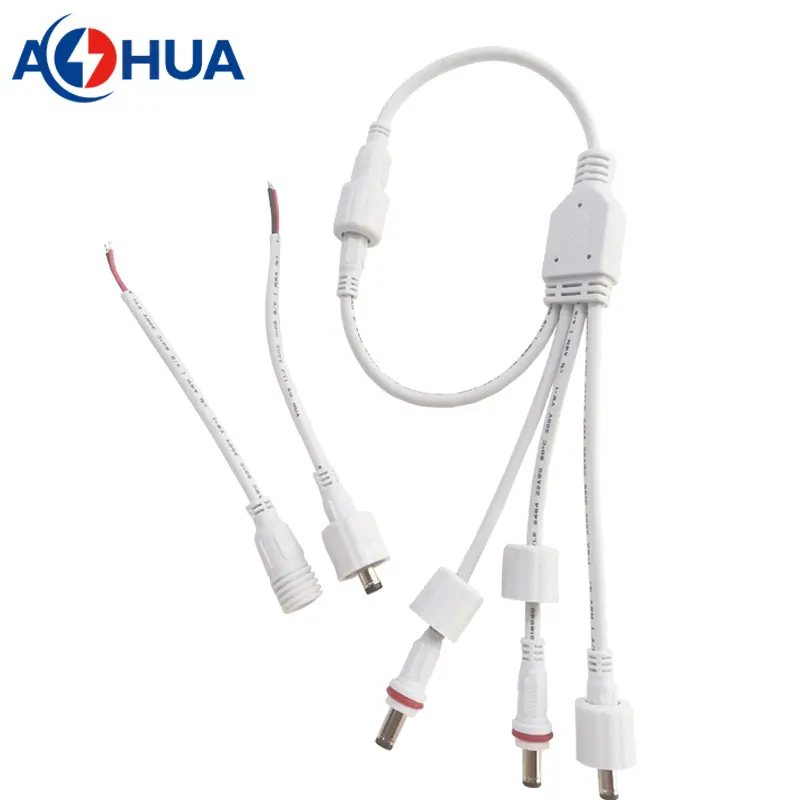

Customized dc jack 2.1mm connectors are combined the Y splitter with dc connectors, which are suitable for LED strip lights. The dc jack 2.1mm connectors are AOHUA M13 waterproof connectors, the splitter is AH-YP03. In this dc jack 2.1mm connectors solution, the wire gauge is 22AWG, which designed for client from Spain.
About M13 waterproof dc jack 2.1mm connectors, common wire gauge includes 20AWG, 22AWG, and 24AWG. The dc metal size is 2.1mm or 2.5mm. While the cable length is customized on the requirement from clients. On this solution, the waterproof level is IP65.
Parameters:
| Male | AH-M13-0402MFD01111 |
| Female | AH-M13-0402FMD01111 |
| Y Splitter | AH-YP03 |
| Voltage Rating | 60V |
| Current Rating | 4A |
| Wire Gauge | ≤0.5mm² |
| Cable OD | 3.0-5.0mm |
| Mechanical Life | 3000 mating cycles |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
| DC Metal Size | 5.5*2.1 / 5.5*2.5mm |
