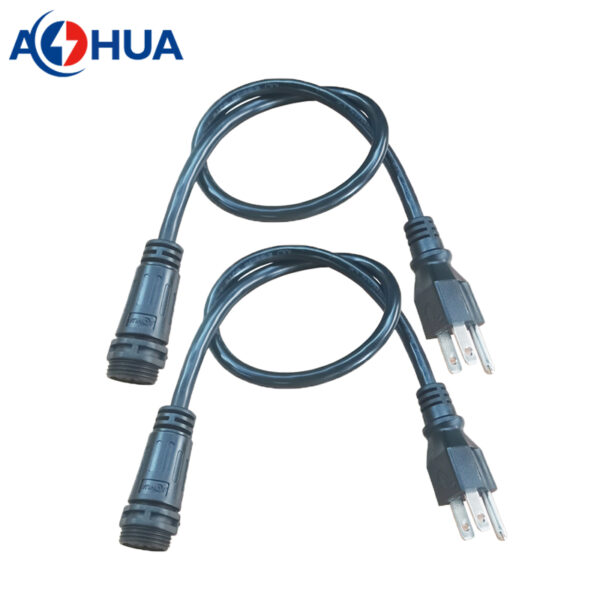

AOHUA M20 Assembly Molding 3pin 15A Power Plug Male Female Sockets Waterproof IP68 Connector For EU US Power Plug

Here is the power plug waterproof connector solution. In general, for outdoor application or long distance, the power plug cable is very long, the plug is not convenient for plug and unplug in outdoor. So the male and female will be the convenient options. The most importance is our connector is waterproof, which is perfect for outdoor environment.

Highlights & Specifications

1. Model: power connector processing
2. The connector can be molded in assembly type or molding type.
3. Plastic material: PA66
4. Conductor material: gold plated copper
5. Cable material: PVC or PA66

• Contacts: 3pin
• Connector: M20
• Voltage Rated: 300V
• Current Rated: 15A
• Wire Size: ≤14AWG
• Cable OD: 5-10mm
• Operating Temperature: -40℃~+105℃
• Mechanical Life: 3000 mating cycles

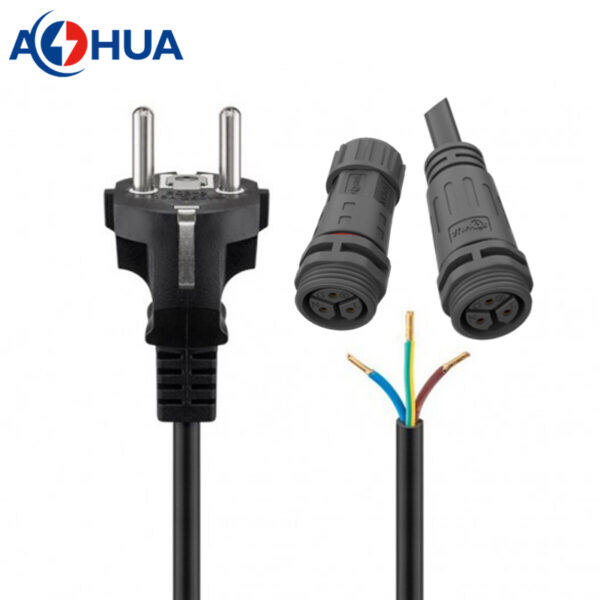

There are assembly type connector and molding type connectors for choosing from. The assembly connector usually use to the your own power plug directly, it can be solder type or screw fixing type for wiring operation. The molding connector is used for the power plug cable processing, it means that you can buy the power plug from us or ship us the power plug, then we can mold the connector on it.

How to order?

1. if you have power plug cable, you can ship to our factory for molding processing; if you dont have and want to buy it, we can provide the power plug, you just need to tell the detail requests.
2. we want to know about the power plug solution:

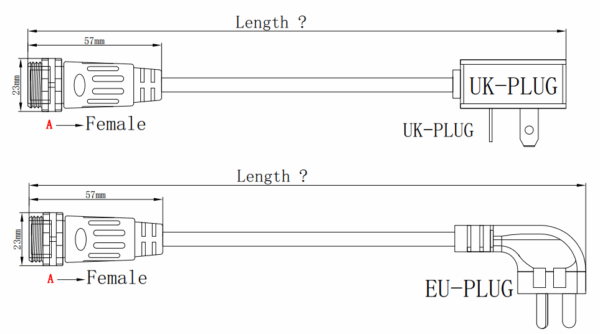

• power plug type, such as US plug or EU plug;
• any certificate for plug?
• working ampere, wire size, cable length?
• connector type: male to female, or straight.
