AOHUA, Manufacturer-Assembly Panel Mount IP68 Waterproof Male Female 2 Pin Electric Cable Connector
AOHUA, Manufacturer-Assembly Panel Mount IP68 Waterproof Male Female 2 Pin Electric Cable Connector
- Male: front panel mount
- Female: inline type
- Contacts: 2pin
- Rated Voltage: 300V
- Rated Current: 5A
- Housing Material: PA66
- Conductor Material: gold plated brass
- Cable OD: 2.6-7.5mm
- Operating Temperature: -40℃~+105℃
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Assembly Panel Mount IP68 Waterproof Male Female 2 Pin Electric Cable Connector

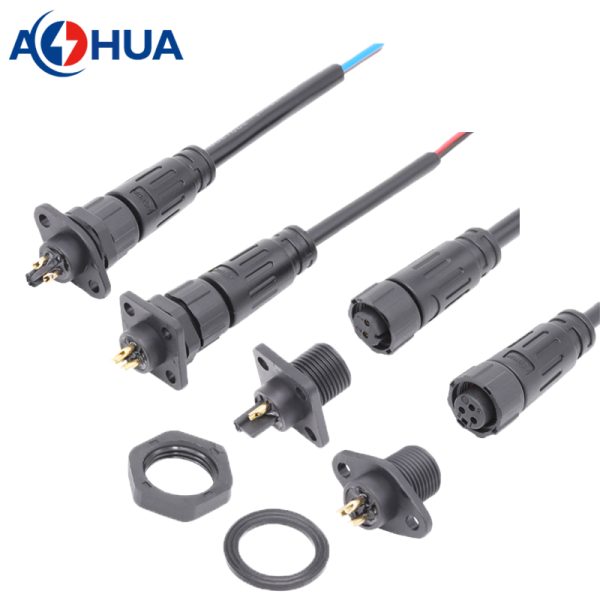

This is oval panel type male to female waterproof connector. The male side is panel type and female side is inline assembly or molding connector. The assembly connector should be assembled with electrical wire, but the molding connector should be connected to device directly.
- Model: M12
- Plastic Material: PA66
- Conductor: gilded brass
- Contacts: 2pin.
| Rated Voltage | 300V |
| Rated Current | 5A |
| Wire Gauge | ≤1.0mm² |
| Cable OD | 2.6-7.5mm |
| Mechanical Life | 3000 mating cycles |
| Operating Temperature | -40℃~+105℃ |
| Waterproof Grade | IP67 /IP68 |
 |
 |
