AOHUA Power Cord Connected 3pin 20A Screw Lugs IP68 Assembly Molding Wire Male Female Waterproof Connector CE ROHS

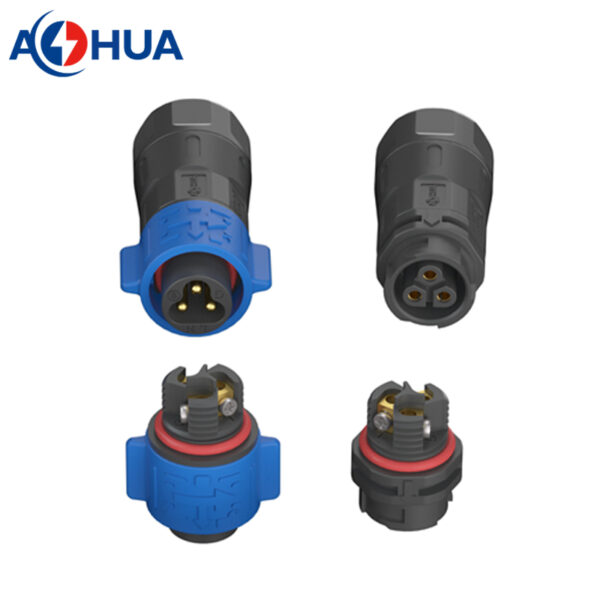

Assembly waterproof connector

• The assembly type connector is coming without cable, you need to prepare the cable by yourself.
• The assembly connector is convenient for field assembly outdoor or high place.
• Model: K20
• Contacts: 3pin
• Voltage Rated: 300V
• Current Rated: 20A
• Wire Gauge: ≤2.5mm²
• Cable OD: 7-12mm

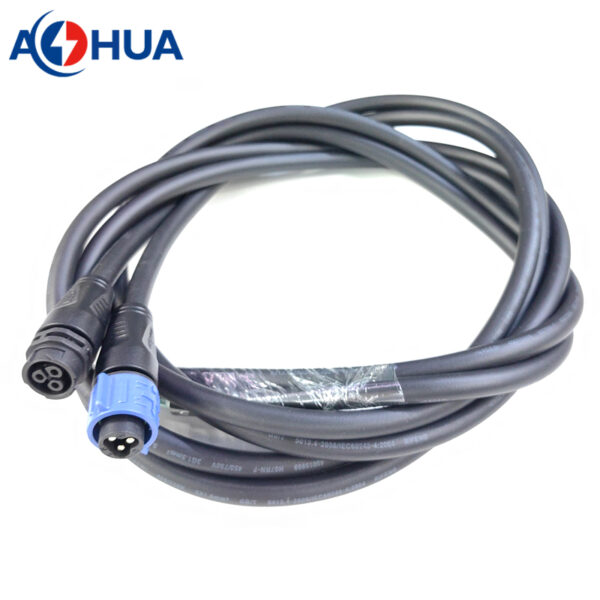

Molding waterproof connector

• Molding waterproof connector is the connector molded with cable directly. You dont need to prepare the cable, only need to solder the wire end to your power or equipment.
• The molding cable can be customized the length as you need, also can be customized the wire end and wire tail with terminal or strain relief cable gland.
• Model: K20
• Contacts: 3pin
• Voltage Rated: 300V
• Current Rated: 20A
• Wire Size: ≤2.5mm²
• Cable OD: 7-12mm
• Cable Length: customized as required.

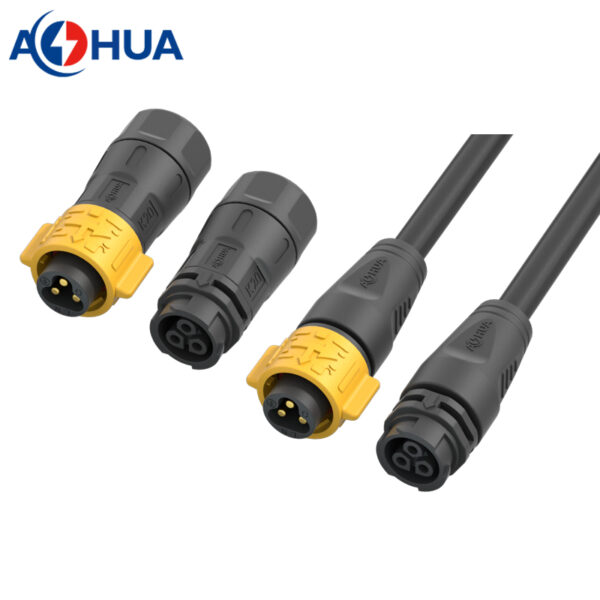

Compatible between assembly connector and molding connector.

• The same model K20, it is compatible between assembly type connector and molding connector. You can design the wire solution as you real need, such as one side assembly connector, the other side is molding connector.

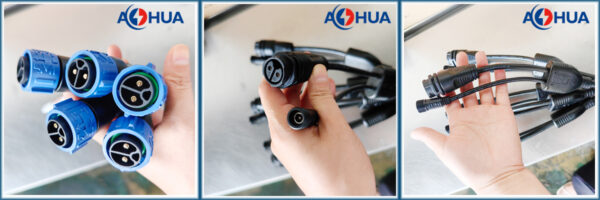

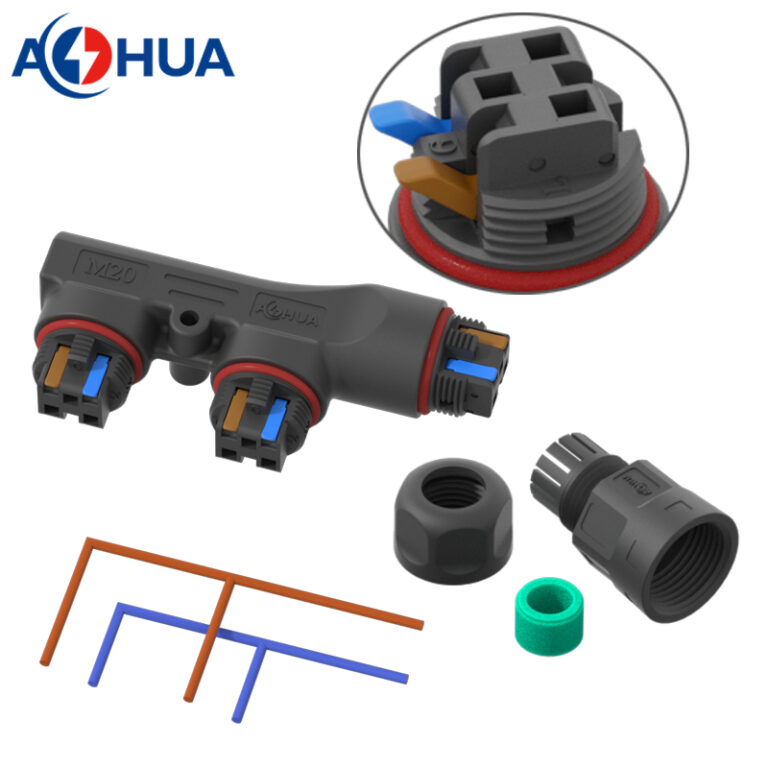

• Also can design the wire harness solution, combine with the splitter such as Y / T /F spilliter.

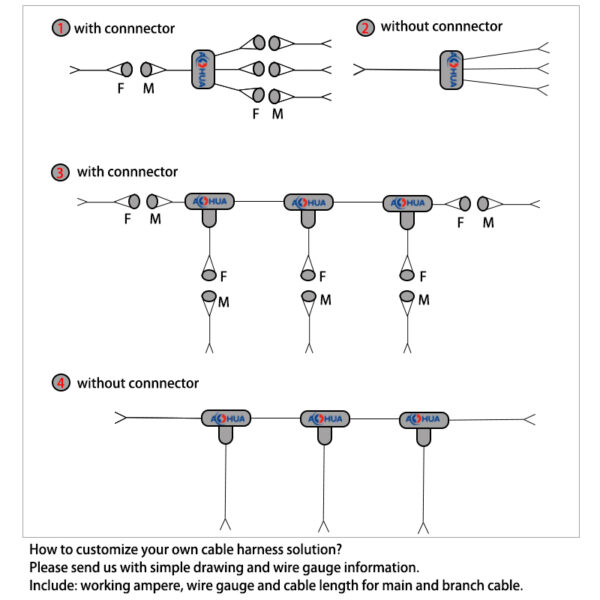

How to customize your own wire solution?

1. confirm the wire solution you need: such as male and female with cable, or just assembly type, or extension cable connector, or splitter with male and female connector;
2. create a simple drawing for what you need that will be easy for us to understand you require.
3. please tell the details of power and wire, including working ampere, wire size, and cable length.
4. we will get back to you with drawing and price within 12 hours if you send us with all details.
