AOHUA T type multi-terminal splitters male female plug IP65 waterproof connectors
AOHUA T type multi-terminal splitters male female plug IP65 waterproof connectors
Model: TP19
Contact: 2pin
Material: PVC
Gender: Female
Connection: Parallel
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:
AOHUA T type multi-terminal splitters male female plug IP65 waterproof connectors
Customize IP65 waterproof connectors, which are T type spliltters with female terminals.

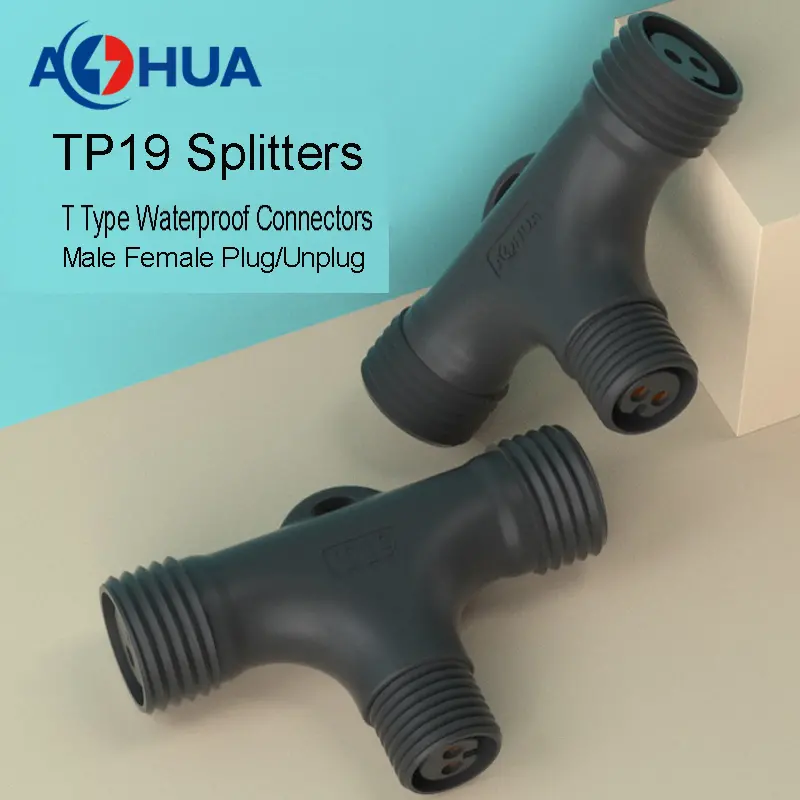

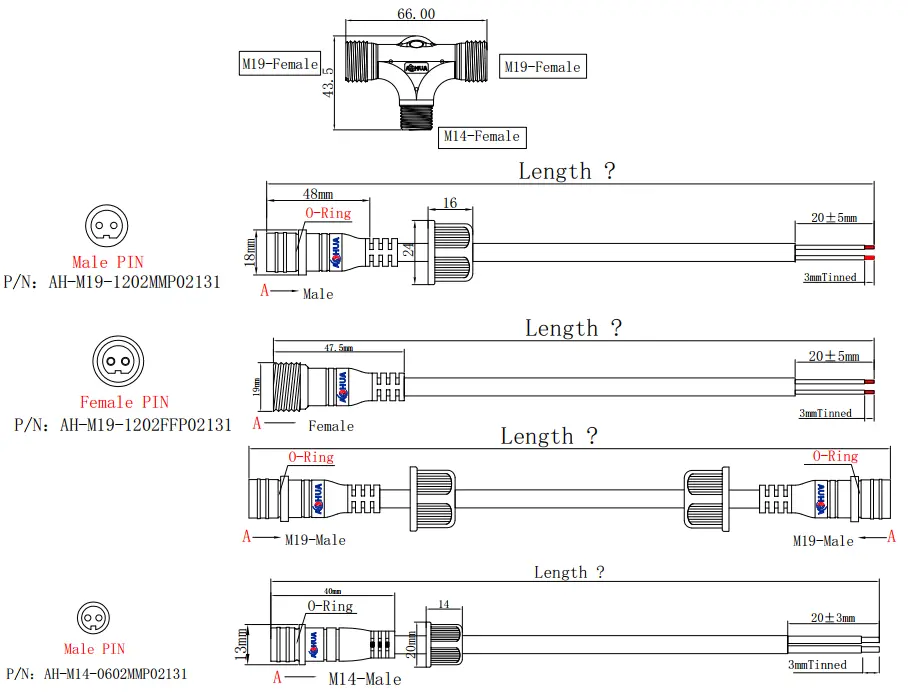

AOHUA new designed T type waterproof connectors: TP-M19, which are similar to adapters. The transverse input and output are M19 female connector terminals, the vertical output is M14 female connector terminal. This T type waterproof connectors splitters is only 2pin that no other choice. And for this waterproof splitters, only made with PVC material, so that the cable used to mold is PVC cable usually.
Parameter:
| Contacts | 2pin |
| Voltage Rating | 250V |
| Main Current Rating | 12A |
| Branch Current Rating | 6A |
| Main Wire Gauge | ≤1.5mm² |
| Branch Wire Gauge | ≤1.0mm² |
| Main Cable OD | Max 10mm |
| Branch Cable OD | Max 10mm |
| Waterproof Level | IP65 |
| Operating Rating | -20℃~+80℃ |
| Mechanical Life | 500 mating cycles |

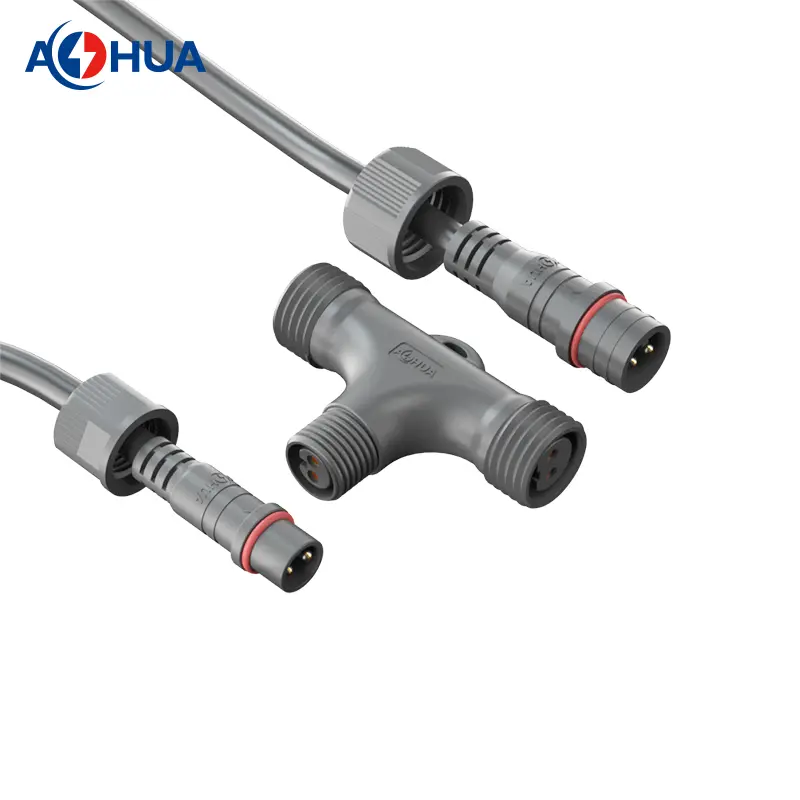

Matched Cable Connectors
