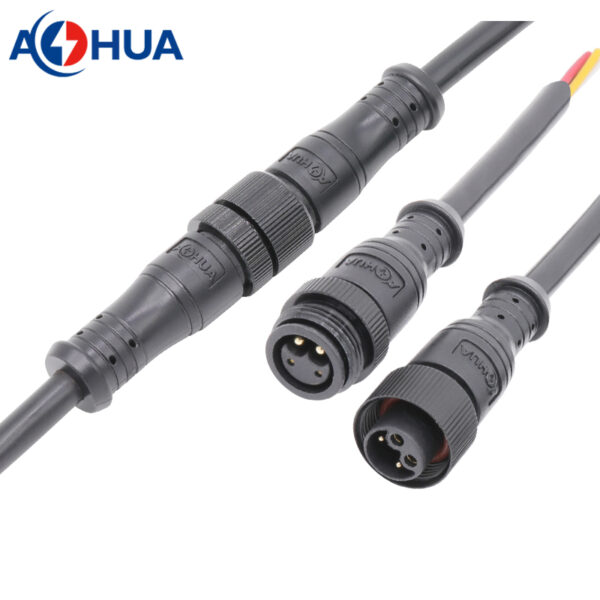

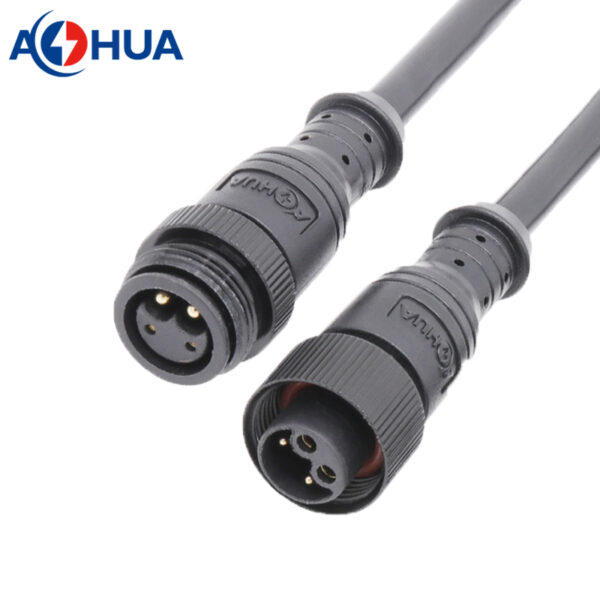

Aviation Plug Plant Light Dimming 2+2pin M16 Metal Male Female Extension Cable Waterproof Connector
Aviation Plug Plant Light Dimming 2+2pin M16 Metal Male Female Extension Cable Waterproof Connector
- customized metal electrical connector with waterproof IP65 grade
- molding type (with cable directly)
- connection: soldering;
- contacts: 2+2pin
- cable length: customized as requirement
- color: black /white or specified
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Aviation Plug Plant Light Dimming 2+2pin M16 Metal Male Female Extension Cable Waterproof Connector
- Metal screw threads
- molding type
- plastic material: PVC
- conductor: gold plated brass
- cable material: PVC, rubber or specified
- contacts: 2+2pin
- wire gauge: ≤1.0mm/≤0.3mm
- cable OD: 5-10mm
- cable length: customized
How to order
This is customized cable connector, you can require to customize connector with open wire end or extension cable with connector on both side.
- confirm the connector type;
- specify the working ampere, wire gauge and cable length;
- confirm and specify the wire end striping or tinning length;
- if design cable harness, it will be much appreciated if you can send us a simple drawing with details.
- we also accept to terminated with plastic terminal such as JST or Molex connector. Please send the correct part number if you need.
- cable length is customized as requirement, 100mm at least but no longest limited.
| Contacts | 2+2pin |
| Male | AH-M16-0622FMM01113 |
| Female | AH-M16-0622MFM01113 |
| Voltage Rated | 60V |
| Current Rated | 6A+2A |
| Wire Gauge | ≤1.0mm²/≤0.3mm² |
