Computer Ethernet Cable Cat6 Cat5 Panel Mount IP67 RJ45 Waterproof Connector 8C8C
Computer Ethernet Cable Cat6 Cat5 Panel Mount IP67 RJ45 Waterproof Connector 8C8C
- Model: AH-RJ45-08Z01132
- Mating Cable: cat5/cat6
- Cable OD: Max 6.5mm
- Plastic Material: PA66
- Mechanical Life: 500mating cycles
- Operating Temperating: -20℃~+105℃
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Computer Ethernet Cable Cat6 Cat5 Panel Mount IP67 RJ45 Waterproof Connector 8C8C

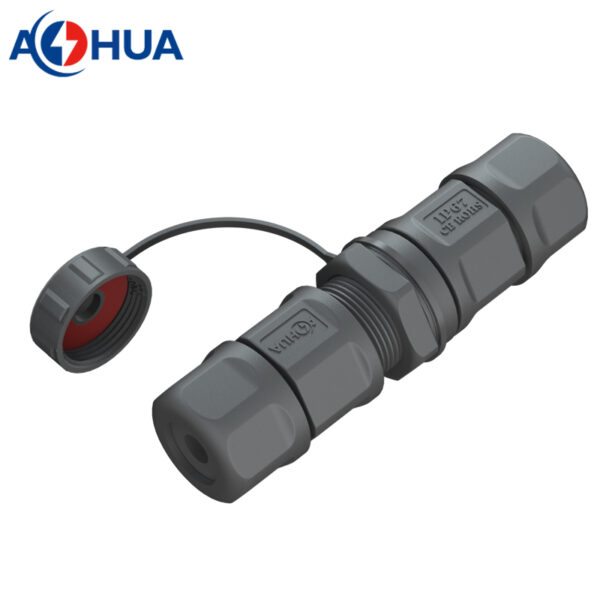

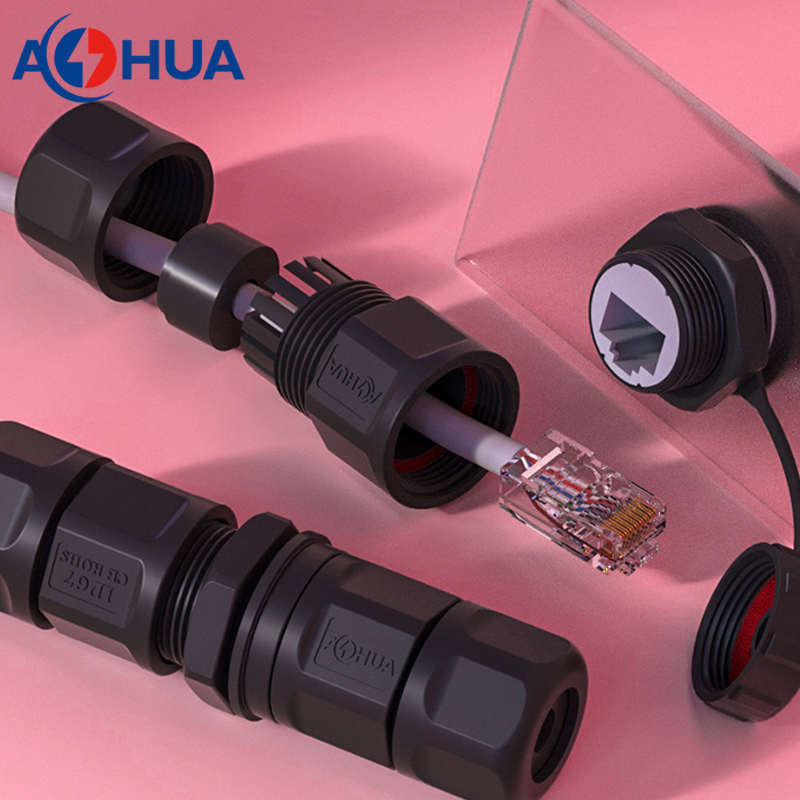

This is panel mount waterproof connector for Ethernet cable connection indoor or outdoor. IP67 waterproof grade is suitable for a variity of outdoor APs and outdoor waterproof switchs system.
- Model: RJ45
- Part Number: AH-RJ45-08Z01132
- Housing: AH-JR45-M21MC
- Dust Cap: AH-RJ45-CAP
- Plastic Maerial: PA66
- Contacts: RJ45 terminal
- Wire Gauge: 24AWG
- Cable OD: Max 6.5mm

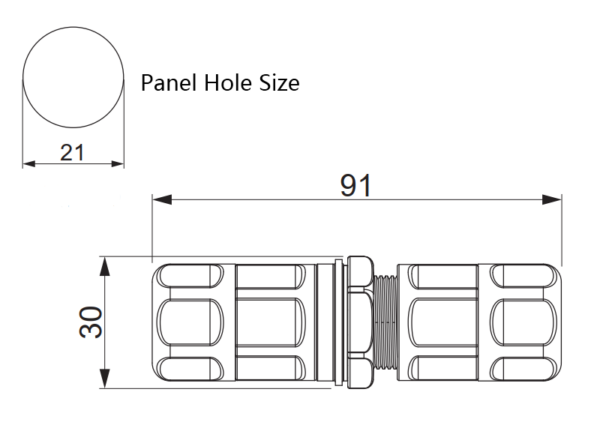

- Panel Thickness: Max 5mm
- Mechanical Life: 500 mating cycles
- Operating Temperature: -20℃~+105℃
- Waterproof Grade: IP67 /IP68
