Control Cabinet Equipment Enclosure 10A Self Locking 2PIN Panel Mount Waterproof Circular Connector
Control Cabinet Equipment Enclosure 10A Self Locking 2PIN Panel Mount Waterproof Circular Connector
- custom equipment enclosure cable solution with panel mount waterproof circular connector.
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Control Cabinet Equipment Enclosure 10A Self Locking 2PIN Panel Mount Waterproof Circular Connector

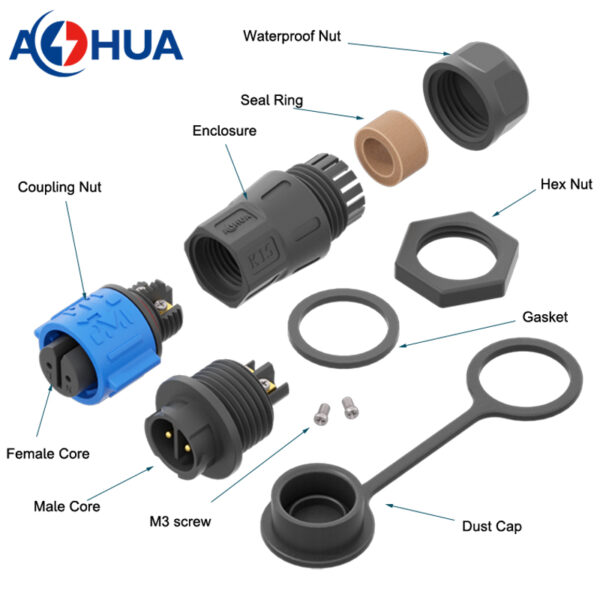

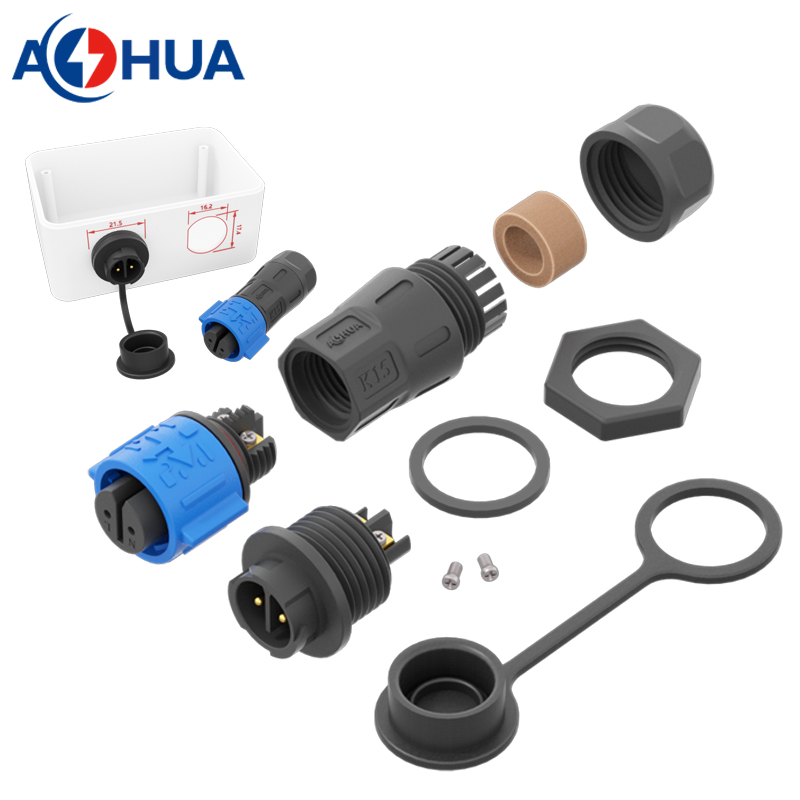

Let us to learn the panel mount waterproof connector in AOHUA. This is the circular connector in assembly type. The male is rear panel mount type connector, which is mounting on the panel and the hex nut will behind the panel. The female is inline type, which is assembled with cable outside the box.
Specification
- Contacts: 2pin
- Voltage Rated: 300V
- Current Rated: 10A
- Wire Gauge: ≤1.0mm²
- Cable OD: 5-10mm
- Mechanical Life: 1500 mating cycles
- Operating Temperature: -40℃~+105℃
- Waterproof Grade: IP67/IP68
- Certificate：CE & ROHS
Part Number
- AH-K15-1002FMR01222
- AH-K15-1002MFZ01222

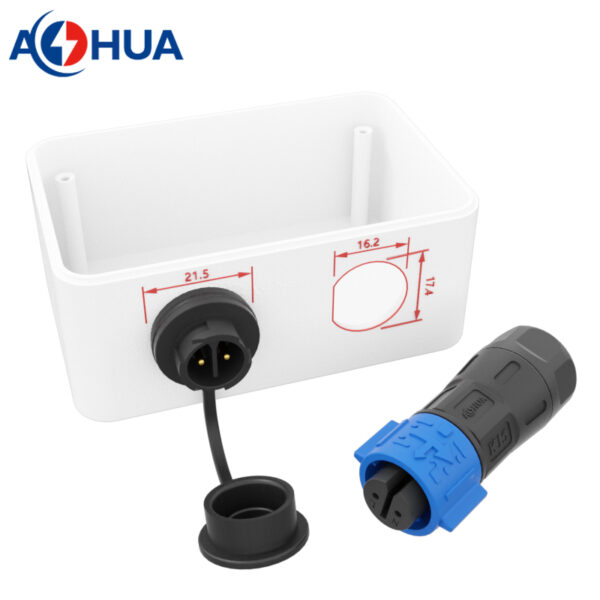

Panel hole diameter for reference, also you can require our sales to get 3D files or CAD drawing.
Customization

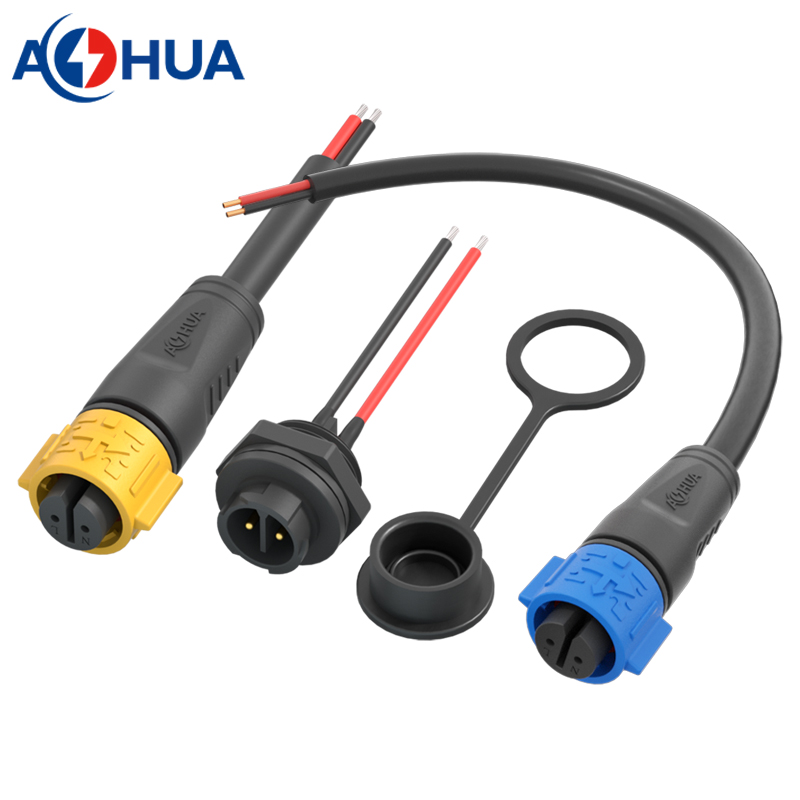

- Except this black with blue color, the blue part also can be customized with yellow.
- The male size can be soldered with electrical wiring.
- The female connector can be assembly or molding type, the molding type is molded with cable directly.
