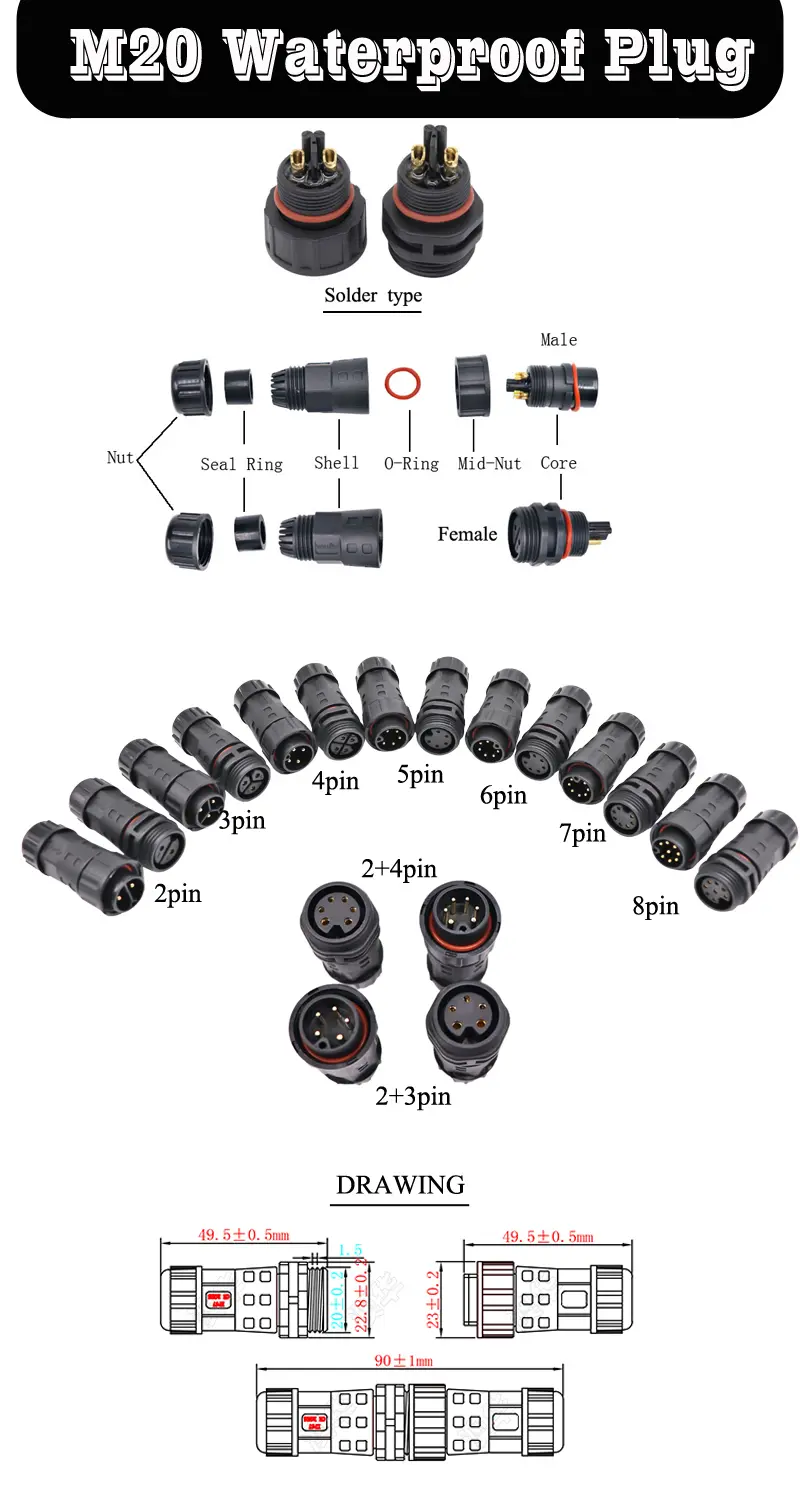

Control system power signal wire IP67 waterproof male female connector

Control system power signal wire IP67 waterproof male female connector

P/N: AH-M20-0624MMZ01112/AH-M20-0624FFZ01112
Material: nylon PA66
Color: black
Certificate: CE/ROHS
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal

Share to:

PIN	Male	Female	Wire Gauge	Voltage	Current
2	AH-M20-1502MMZ01112	AH-M20-1502FFZ01112	≤1.5mm²	300V	15A
3	AH-M20-1503MMZ01112	AH-M20-1503FFZ01112	≤1.5mm²	300V	15A
4	AH-M20-0604MMZ01112	AH-M20-0604FFZ01112	≤1.0mm²	250V	6A
5	AH-M20-0405MMZ01112	AH-M20-0405FFZ01112	≤0.5mm²	110V	4A
6	AH-M20-0406MMZ01112	AH-M20-0406FFZ01112	≤0.5mm²	110V	4A
7	AH-M20-0207MMZ01112	AH-M20-0207FFZ01112	≤0.3mm²	60V	2A
8	AH-M20-0208MMZ01112	AH-M20-0208FFZ01112	≤0.3mm²	60V	2A
2+3	AH-M20-0623MMZ01112	AH-M20-0623FFZ01112	≤1.0mm² ≤0.3mm²	60V	6+2A
2+4	AH-M20-0624MMZ01112	AH-M20-0624FFZ01112	≤1.0mm² ≤0.3mm²	60V	6+2A
