Customized cable wires Y type 1 to 4 M12 waterproof male female connectors 2 3 4 5 pin for plant grow lights
Customized cable wires Y type 1 to 4 M12 waterproof male female connectors 2 3 4 5 pin for plant grow lights
AH-YP05-0504
Contacts: 2 3 4 5 pin
Color: black/ white
Material: PVC
Connector: M12 PVC
Cable material: PVC
Connection: Parallel or Series
Cable length: customized as requirement
Shipping Port: Shenzhen China
Payment Terms: T/T bank, Paypal
Share to:

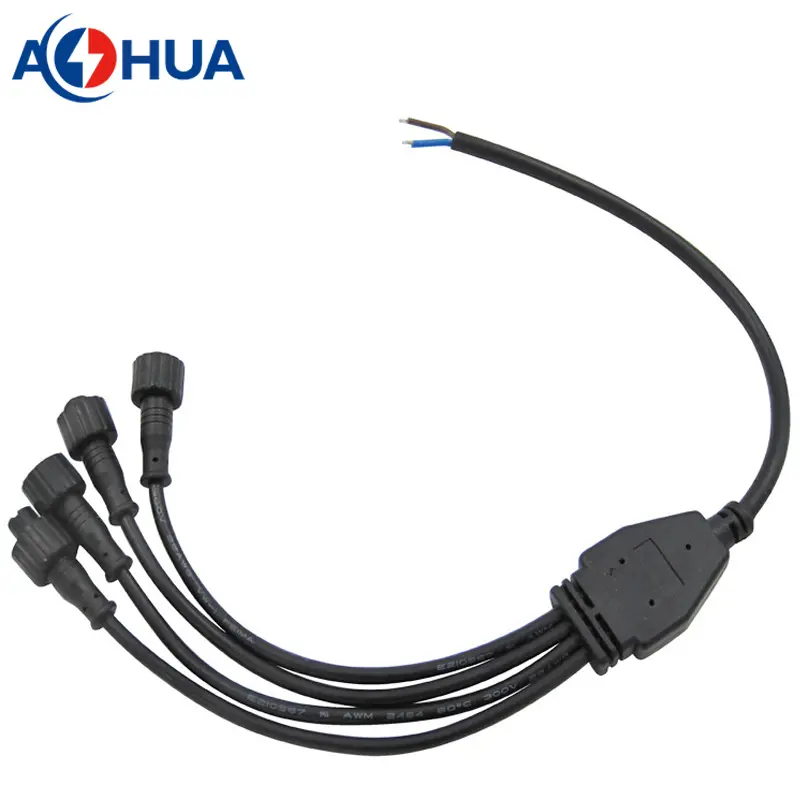

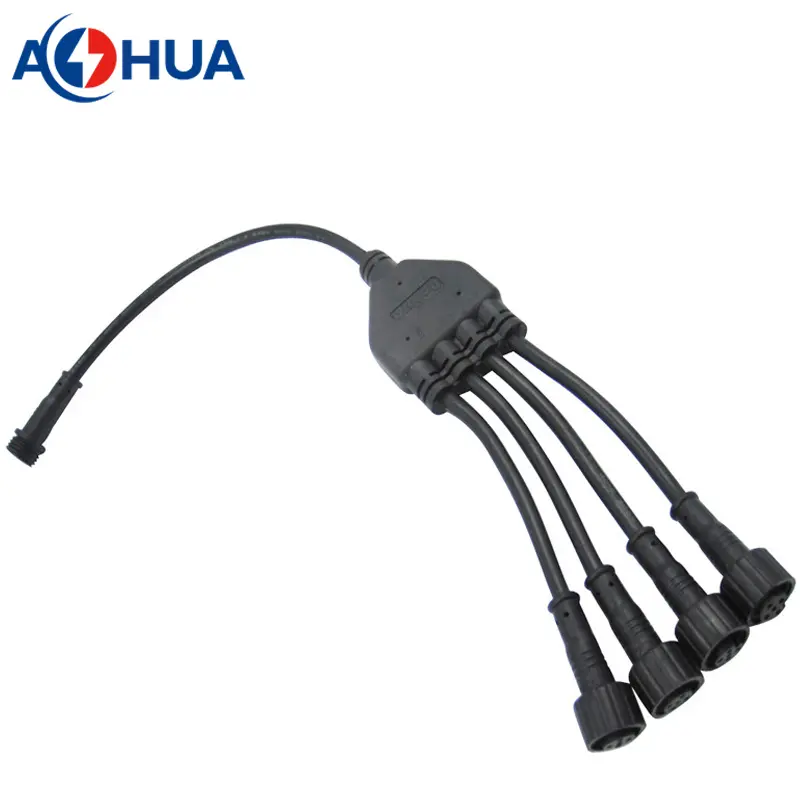

Customized cable wires Y type 1 to 4 M12 waterproof male female connectors 2 3 4 5 pin for plant grow lights
M12 waterproof male female connectors solution is designed for mini plant grow lights. The input cable is 5pin and output cables are 2pin, 3pin, and 5pin. And the input connector is male but branch cable connector is female. YP05 this splitter is limited for the output numbers, which have 4 output cables only.
Wire gauge
Main: 5*24AWG; Branch: 2*24AWG, 3*24AWG, 5*24AWG
| 2pin | AH-YP05-020X |
| 3pin | AH-YP05-030X |
| 4pin | AH-YP05-040X |
| Main Cable Wire Gauge | ≤1.0mm² |
| Branch Cable Wire Gauge | ≤0.5mm² |
| Main Cable OD | Max 8.3mm |
| Branch Cable OD | Max 5.0mm |
| Operating Rating | -20℃~+80℃ |
| Waterproof Level | IP65 |
