Customized Junction Box Extension Cable Male Female Panel Mount Electric Wire Waterproof Connector 3pin
Customized Junction Box Extension Cable Male Female Panel Mount Electric Wire Waterproof Connector 3pin
- Model: M20
- Contacts: 3pin
- Rated Voltage: 300V
- Rated Current: 15A
- Wire Gauge: ≤1.5mm²
- Cable OD: 5.5-10mm
- Plastic Material: PA66
- Conductor: gold plated brass
- Cable Material: PVC or Rubber
- Shipping Port: Shenzhen China
- Payment Terms: T/T bank, Paypal
Share to:
Customized Junction Box Extension Cable Male Female Panel Mount Electric Wire Waterproof Connector 3pin
Here is the manufacturer AOHUA, which is a professional manufacturer of designing and producing cable wires and waterproof connectors with more than 18 years’ experience.

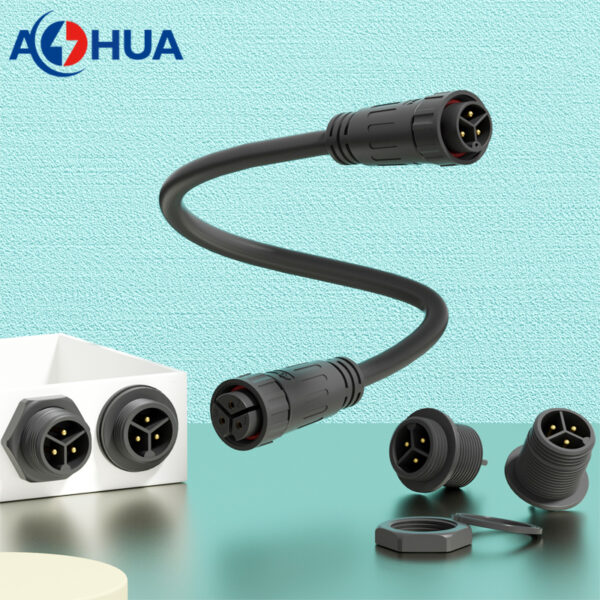

This is the panel type male to to female inline and extension solution. The male panel can be front panel mount or rear panel mount. And the mating female is inline molding connector. In the opposite direction, that is female panel in front panel or rear panel mount, the mating male is inline molding type connector.
What is the difference between front panel mount or rear panel mount? You can check the panel plug, that is included hex-nut, gasket. So if hex-nut is in front of box, that is front panel mount type; In opposite, if the hex-nut is in the box side, that is rear panel mount.
- Male panel(front panel mount): AH-M20-1503FMF01112(solder); AH-M20-1503FMF02122(screw).
- Male panel(rear panel mount ): AH-M20-1503FMR01112(solder); AH-M20-1503FMR02122(screw).
- Female inline(mating with male panel): AH-M20-1503MFN01112
| Model | M20 |
| Plastic Material | PA66 94 V-0 |
| Conductor Material | gold plated brass |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Gauge | ≤1.5mm² |
| Cable OD | 5.5-10mm |
| Mechanical Life | 3000 mating cycles |
| Certificate | CE/ROHS |
