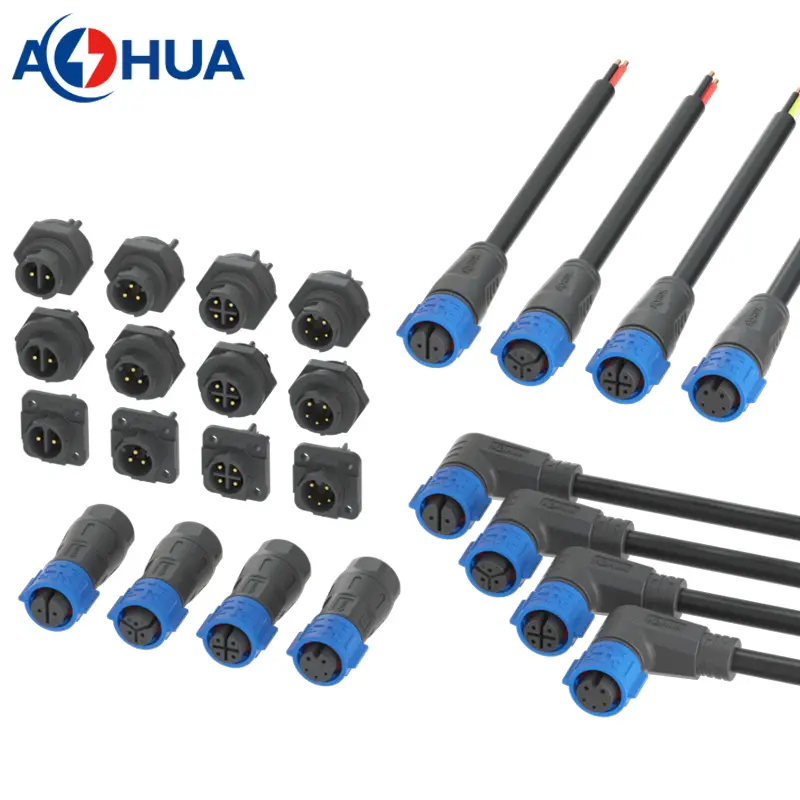

This is customized waterproof cable connector solutions, which will be customized the cable length from client’s requirement. This solution is the 2+3pin connector for power and signal wiring connection.

In this waterproof cable connector solution, there are two panel plugs for junction box mounted, male panel and female panel. The male plug is rear panel mount and female plug is front panel mount.

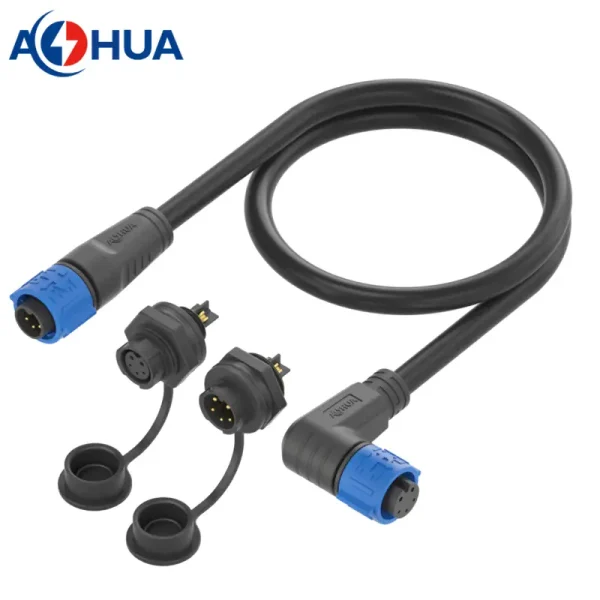

The extension cable is male to female that is matching with the panel plugs. The male is in-line molding connector and female is angle molding connector.

Please note that the dust cap is only used to the panel plugs, and is only dust cap not waterproof cap.

Part Number:

• male panel: AH-K15-1023FMR02212
• female panel: AH-K15-1023FFF02212
• male cable: AH-K15-1023MMN02212
• female cable: AH-K15-1023MFL02212

The pin for power is φ1.5mm and the pin for signal is φ1.0mm.

10A

5A

≤1.0mm²

≤0.5mm²

A customized waterproof cable connector, also known as a waterproof cable assembly, is a specialized connector designed specifically for applications that require reliable electrical connections in wet or moisture-prone environments. These are engineered to provide protection against water ingress, ensuring that electrical connections remain secure and operational even in challenging conditions.

One of the key features of a customized waterproof cable connector is its ability to withstand exposure to water, moisture, and other environmental elements. These connectors are typically constructed using high-quality materials such as corrosion-resistant metals, rubberized seals, and robust insulation. The connectors are designed to create a watertight seal when mated, preventing water from entering the connection points and causing damage or disruption.

Customization is an essential aspect of waterproof cable connectors as it allows them to be tailored to specific application requirements. This customization can include options such as different pin configurations, wire gauges, cable lengths, and connector styles to ensure compatibility with the intended system or equipment.

These connectors find widespread use in a variety of industries and applications, including outdoor lighting, marine and boating, automotive, industrial machinery, and telecommunications. They are particularly crucial in outdoor and rugged environments where exposure to water, moisture, dust, and vibrations is a concern.

When opting for a customized waterproof cable connector, it is essential to work with an experienced manufacturer or supplier who can provide expert guidance and support in selecting the appropriate connector for your specific needs. Factors to consider include the desired IP rating (Ingress Protection), which indicates the level of protection against solids and liquids, as well as the environmental conditions such as temperature, pressure, and chemical exposure.

In conclusion, customized waterproof cable connectors play a vital role in ensuring reliable and safe electrical connections in challenging environments. By offering customization options and robust waterproofing capabilities, these connectors provide a tailored solution to meet the unique requirements of various industries and applications.
